EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

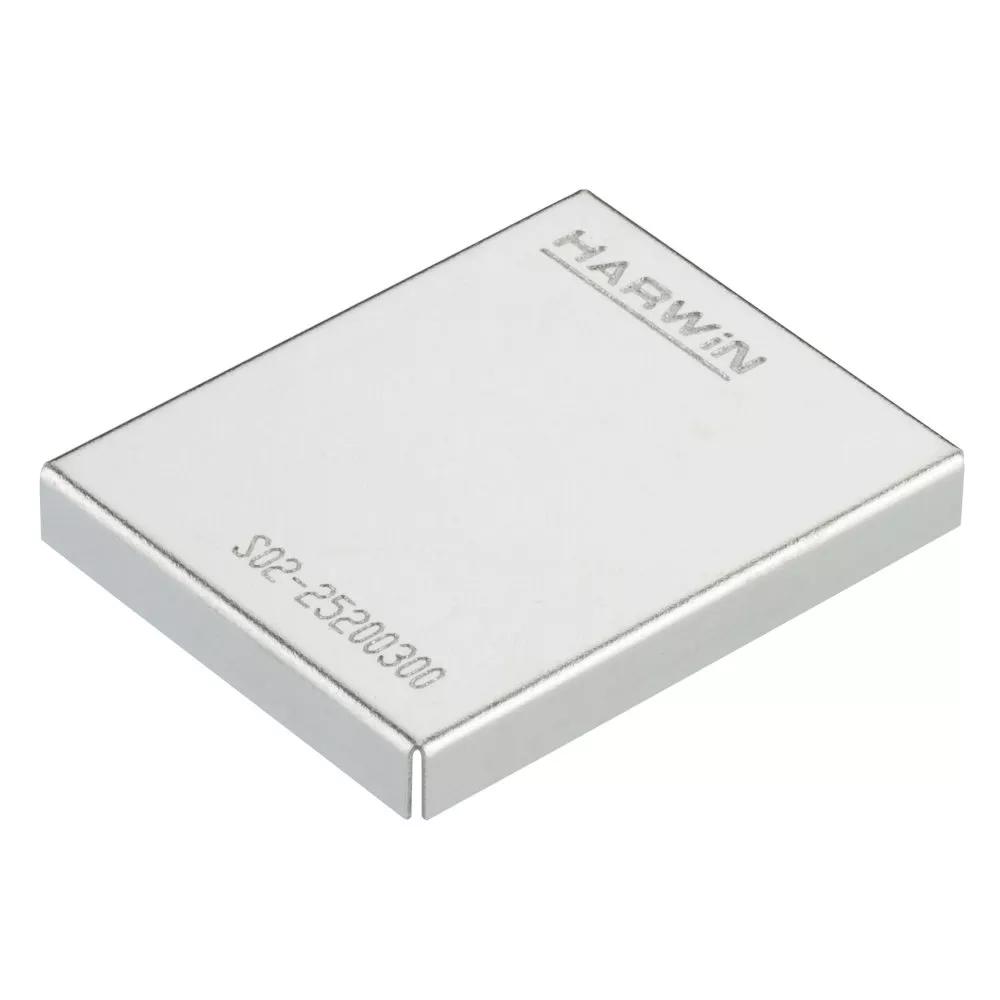

25mm x 20mm, 3mm high, 0.2mm shield thickness. Packaged in Tape & Reel for automated placement.
Recommended for use with S0911-46R, S0951-46R, S0961-46R, S0971-46R, S0981-46R, S0991-46R, S1001-46R or S1721-46R Surface Mount Shield Clips.
Easy to use and rework - no additional soldering operations required.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
Country of Origin:
CN
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Materials
Finish / Plating on Contact Surface:
Unplated
Base Material of Contact:
Nickel Silver
Packaging Style:
Tape and Reel
Dimensions
Weight:
1.314g
Dimensions:
25.20 x 20.20 x 3.20
Downloads
SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force
Product Datasheet - SHIELDING: EMC Shielding range (EZi)
Product Training Module - EMC/RFI Shield Clips and Shield Cans
Technical Drawing / Datasheet - S02-XXXXXXX0R.pdf
Outgassing data for Harwin products (plastics)
RoHS - S02-25200300R
Material composition for S02-25200300 product
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
