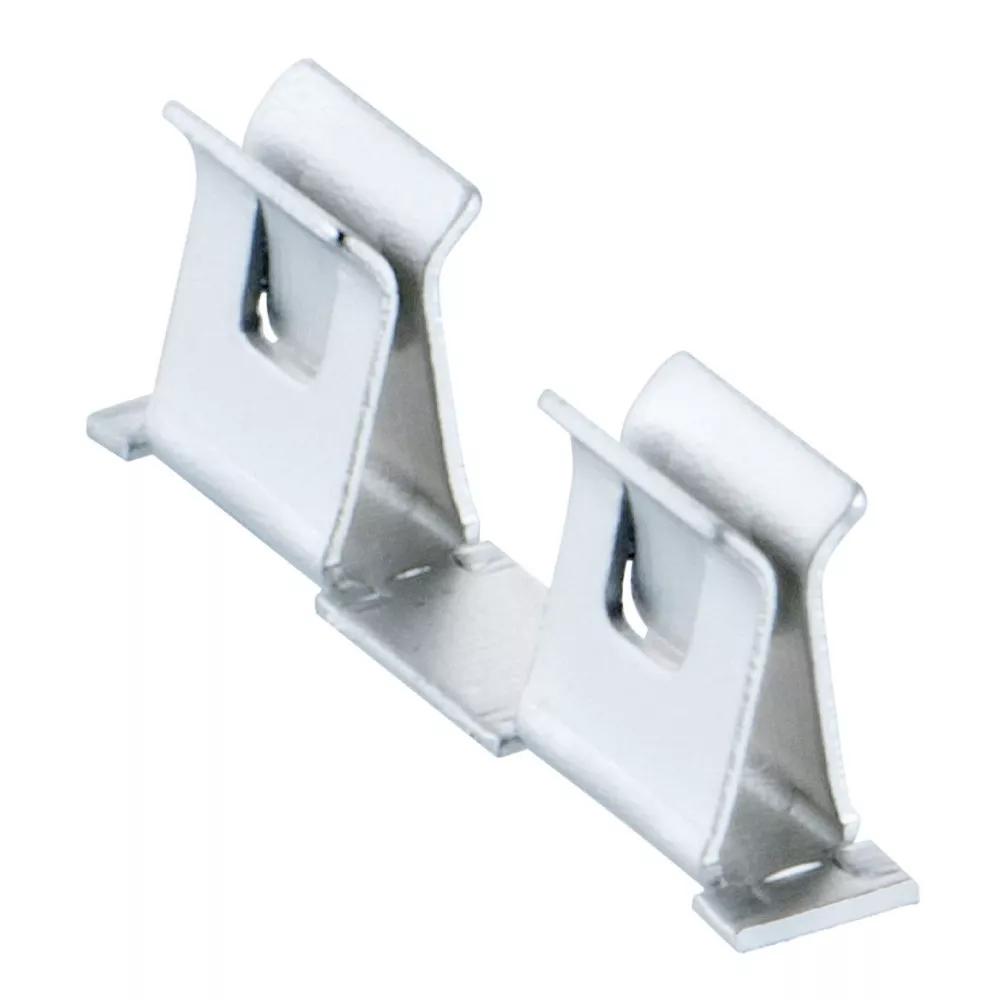

Mini size (5.8mm long, 2mm high), for shield thickness 0.2-0.3mm. Tin finish on contact area and termination.
Packaged in Tape & Reel for automated placement.
Recommended for use with S02-20150300, S02-25200300 or S02-30200250 Shield Cans.
View Technical Details
Out of Stock
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Entry Style:
Top Entry
Connector Orientation:
Vertical
Country of Origin:
TW
Operating Temperature:
-25°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Stainless Steel
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
100% Tin over Nickel
Dimensions
Weight:
0.015g
Dimensions:
5.80 x 1.00 x 2.00
Height of Connector above PCB:
2.00mm
Downloads
Product Training Module - EMC/RFI Shield Clips and Shield Cans
SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force
Product Datasheet - SHIELDING: EMC Shielding range (EZi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for S0971 series
RoHS - S0971-46R
