3+3 Pos. Male DIL 20 AWG Cable Assembly, 150mm, single-end, Jackscrews

M300-MC20605M1-0150L

3+3 Pos. Male DIL 20 AWG Cable Assembly, 150mm, single-end, Jackscrews

3.00mm Pitch High-Reliability Connector - M300

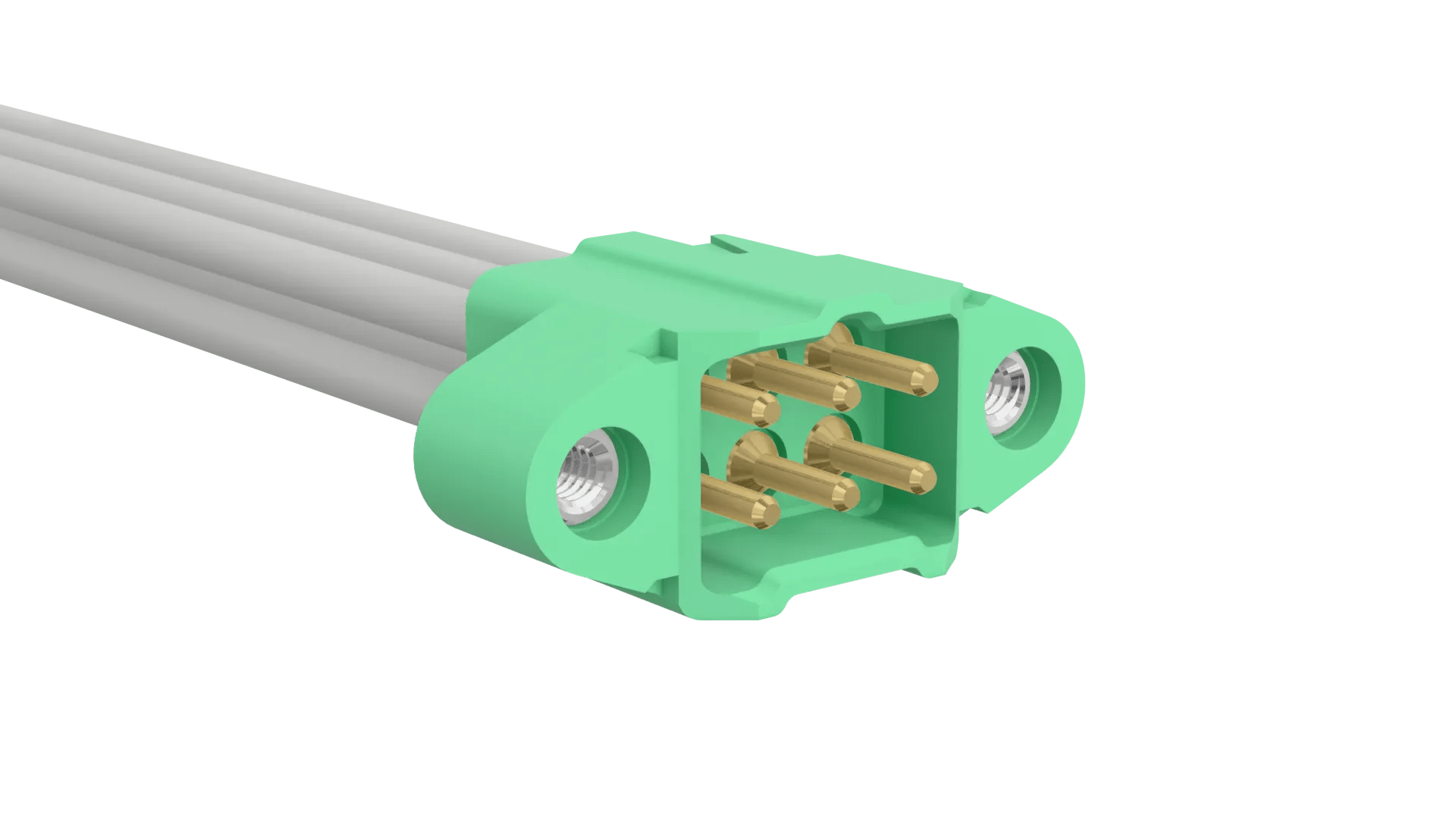

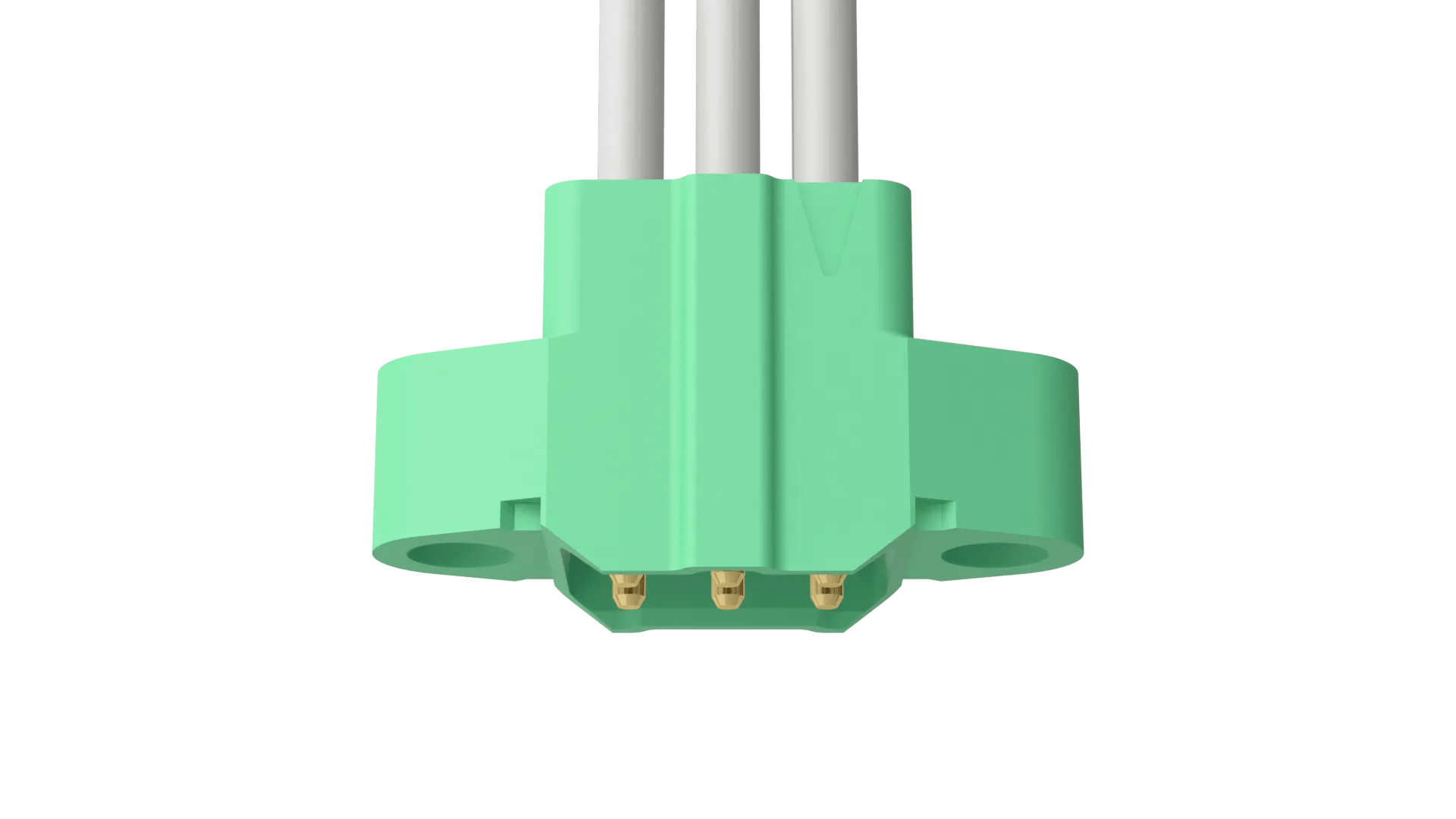

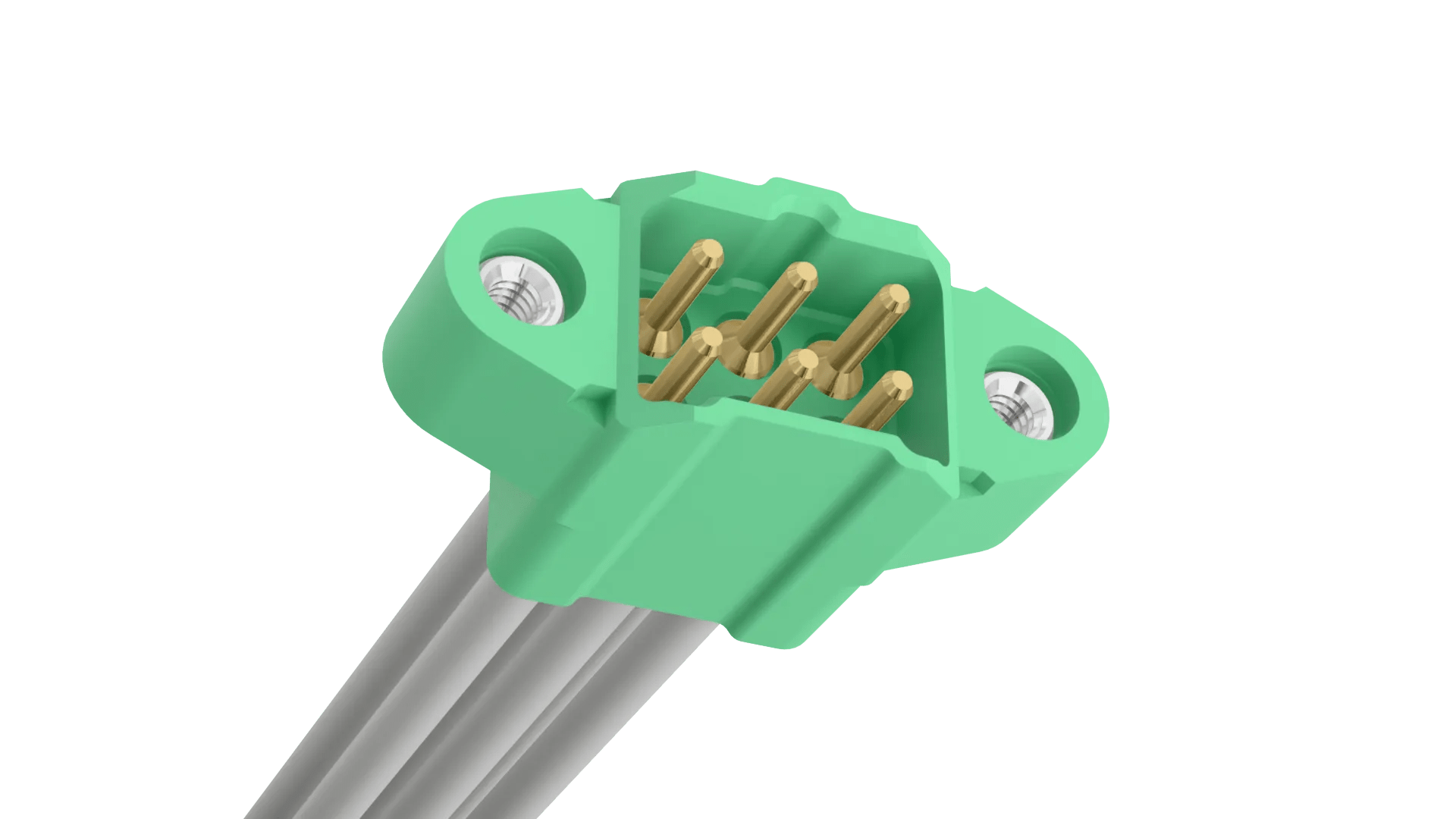

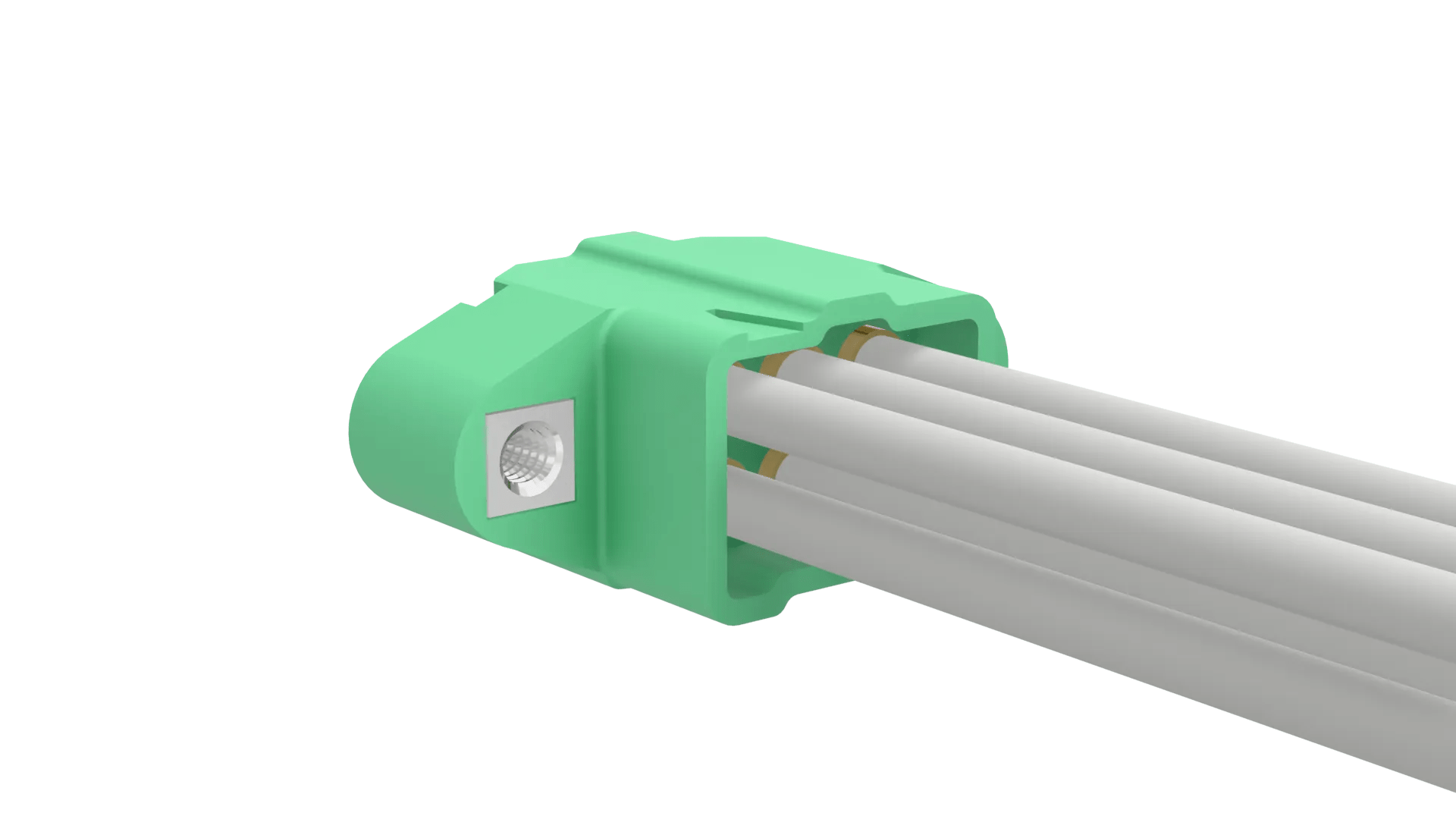

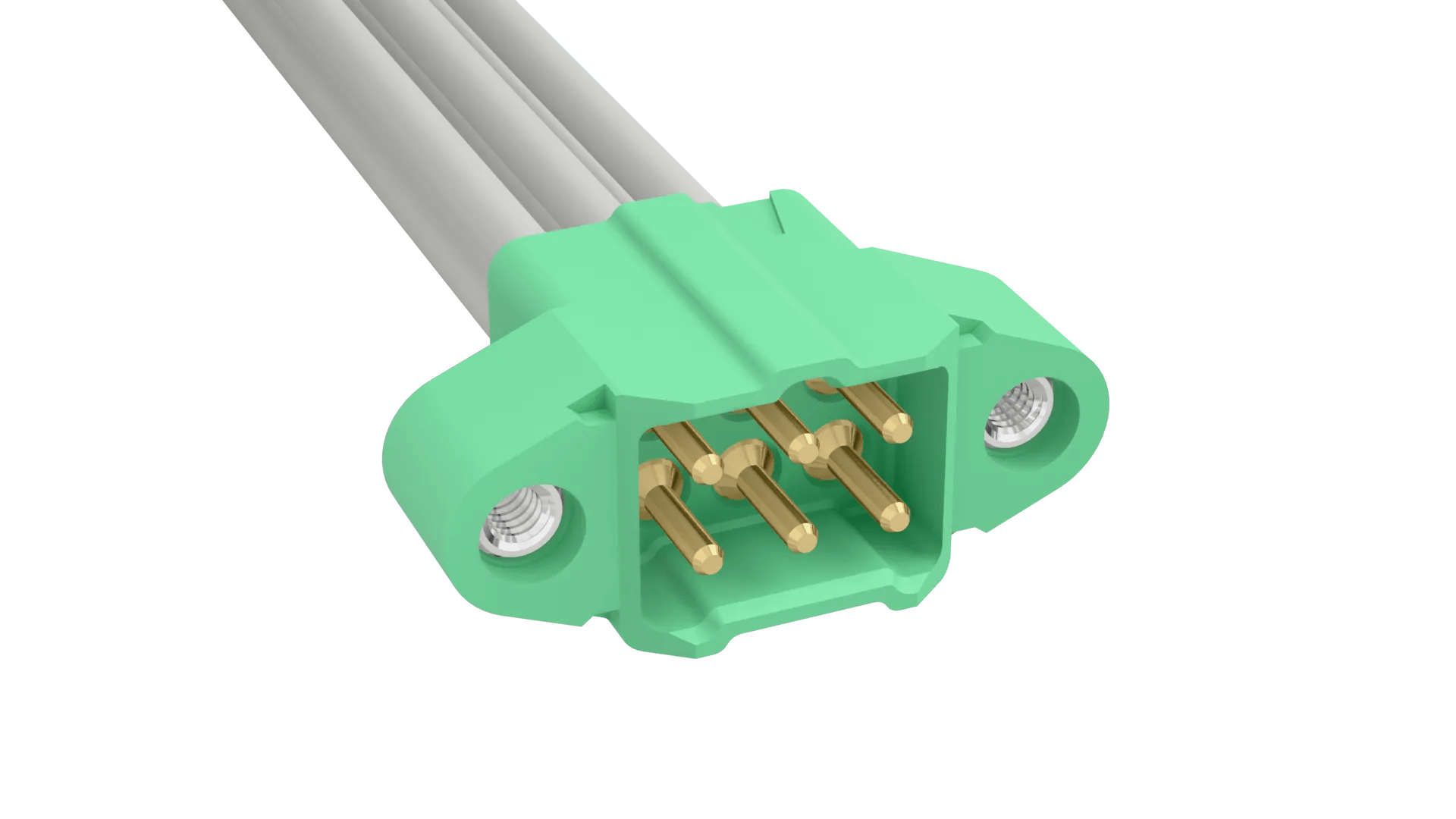

  • Male Single-Ended with white 20 AWG cable, 150mm (6") long - 6 contacts (3+3). Fitted with internally threaded jackscrew fixings. Gold finish on connector contact area.

  • Manufactured with the M300-1010045 crimp contacts, M300-3240696M1 Double Row crimp housing.

  • For complete pin numbering or pin out information, see Component Specification C048XX.

View Technical Details

Checking stock availability...

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Change Notifications

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    Internal Thread Fixing

  • Mating Pin Size:

    Ø1mm

  • Number of Rows:

    2

  • Connector Orientation:

    Straight

  • Country of Origin:

    GB/US

  • Side Stackable:

    No

  • Number of Power/Coax Contacts:

    6

  • Operating Temperature:

    -65°C to +175°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    8A max per contact simultaneous

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 4T

  • Base Material of Contact:

    Brass

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    Green

Dimensions

  • Contact Pitch:

    3.00mm (0.118")

  • Weight:

    9.201g

  • Dimensions:

    150.00 x 21.30 x 9.00

  • Thread Size:

    M2

  • Wire Size:

    20 AWG

Downloads

    Product Change Notifications

  • Product Change Notification 13-Dec-2024 - M300 Male Housings and Connectors

    • Technical Documentation

  • Technical Drawing / Datasheet - M300-XCXXXXXXX-XXXXLXX.pdf

  • C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)

  • C049XX Component Specification - Cable Assembly Specifications for all HRi products

  • Outgassing data for Harwin products (plastics)

  • Plating thickness on M300 contacts

    • Product Information

  • Catalog page - M300 Mating Profiles + Pin Numbering

  • Product Training Module - Introduction to the M300 connectors + 3mm pitch High-Reliability

  • Product Training Module - Cable Connectors and Assemblies from Harwin

  • Product Training Module - Cable Products from Harwin

  • Product Datasheet - M300 range (HRi)

    • Test Reports

  • Test Report HT043 - M300 Series - General (Electrical + Mechanical and Environmental)

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • RoHS - M300-MC20605M1-0150L
