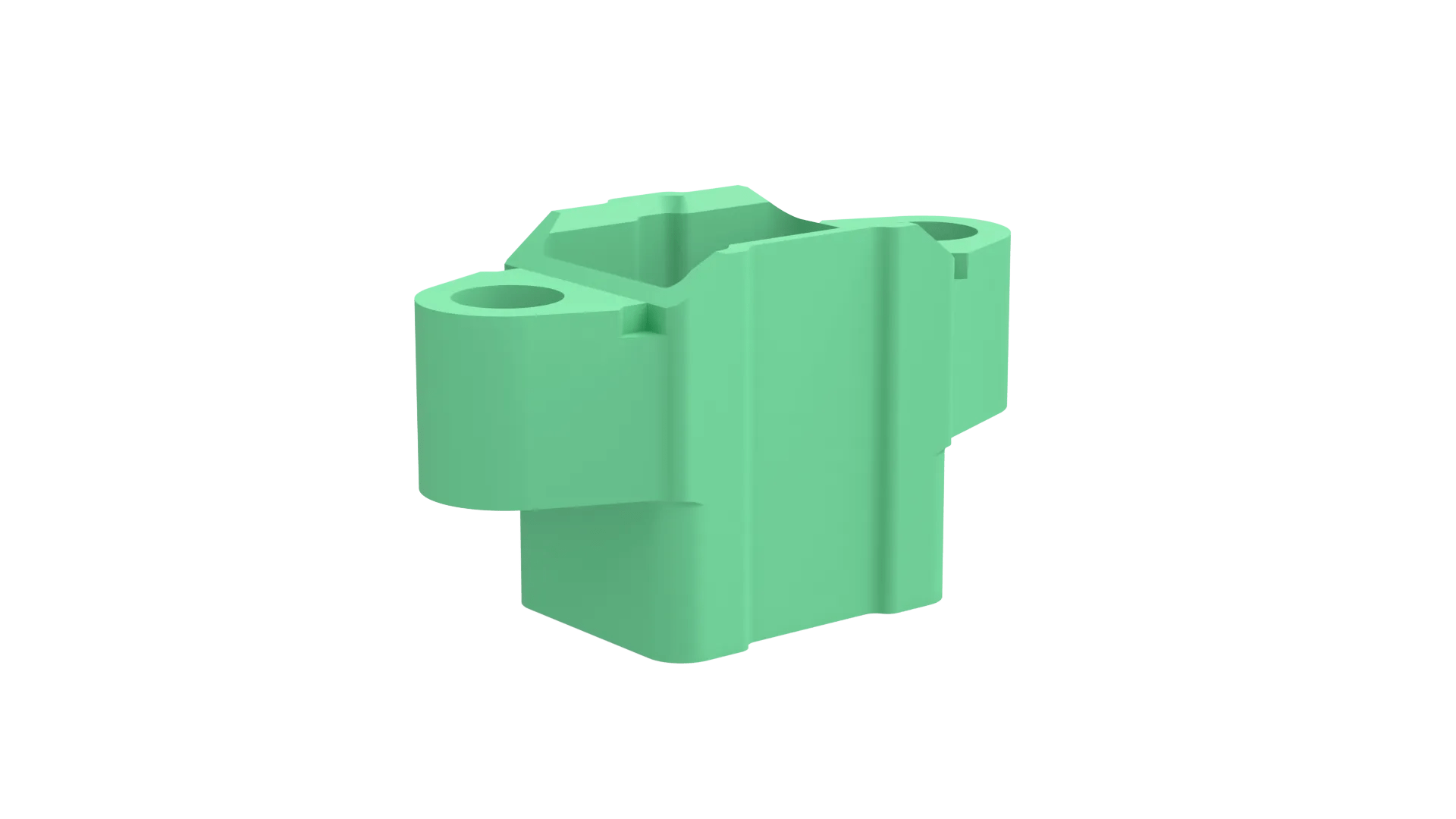

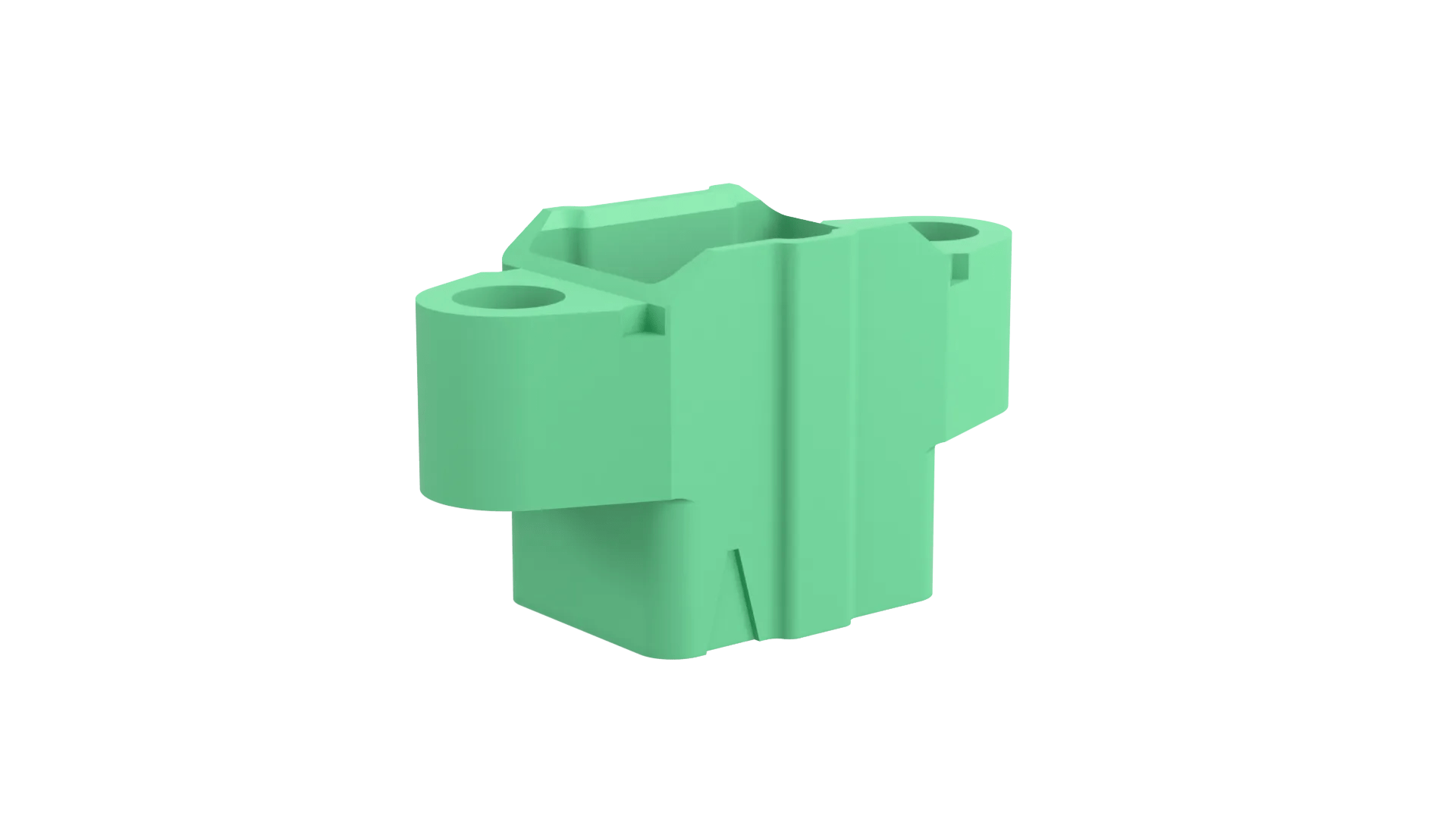

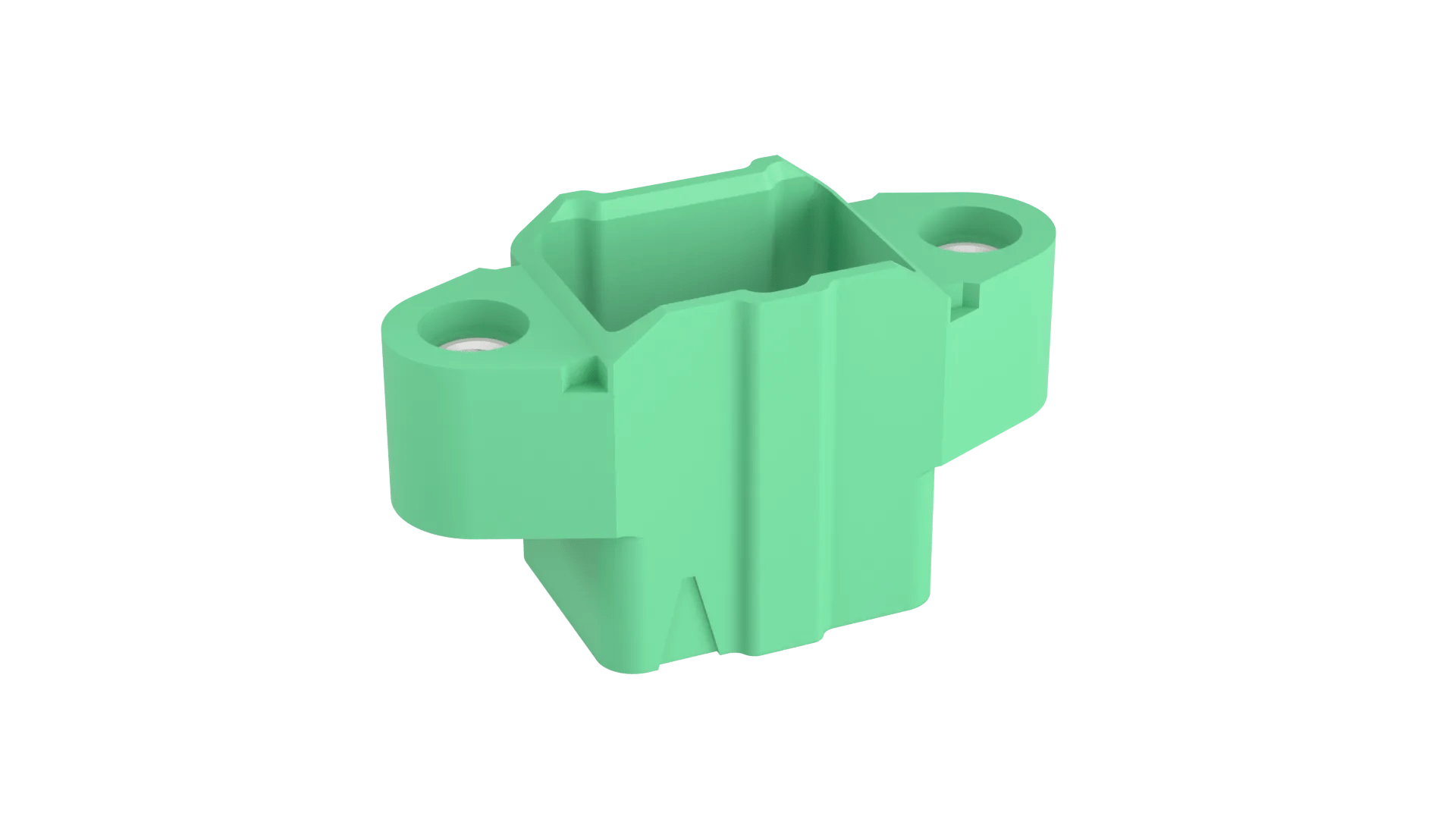

3.00mm Pitch High-Reliability Connector - M300
Double Row Polarized Male Housing, with internally threaded jackscrew fixings and rear potting area - 6 contact (3+3).
Contacts to be purchased separately - use with crimp contacts M300-1010045 or M300-1020045.
For complete pin numbering or pin out information, see Component Specification C048XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Mating Pin Size:
Ø1mm
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
6
Operating Temperature:
-65°C to +175°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
10A max per contact simultaneous
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
Polyamide (Nylon) 4T
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Green
Dimensions
Contact Pitch:
3.00mm (0.118")
Weight:
1.404g
Dimensions:
21.30 x 9.00 x 11.90
Thread Size:
M2
Downloads
IS-40 - Z300-902 Assembly Tool Instruction Sheet
Catalog page - M300 Mating Profiles + Pin Numbering
Product Datasheet - M300: M300 range (HRi)
Product Training Module - Introduction to the M300 connectors + 3mm pitch High-Reliability
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet
Product Training Module - Cable Products from Harwin
Product Training Module - Cable Connectors and Assemblies from Harwin
Technical Drawing / Datasheet - M300-3240696M1.pdf
Plating thickness on M300 contacts
C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
RoHS - M300-3240696M1
Material composition for M300-3240696M1 product
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
