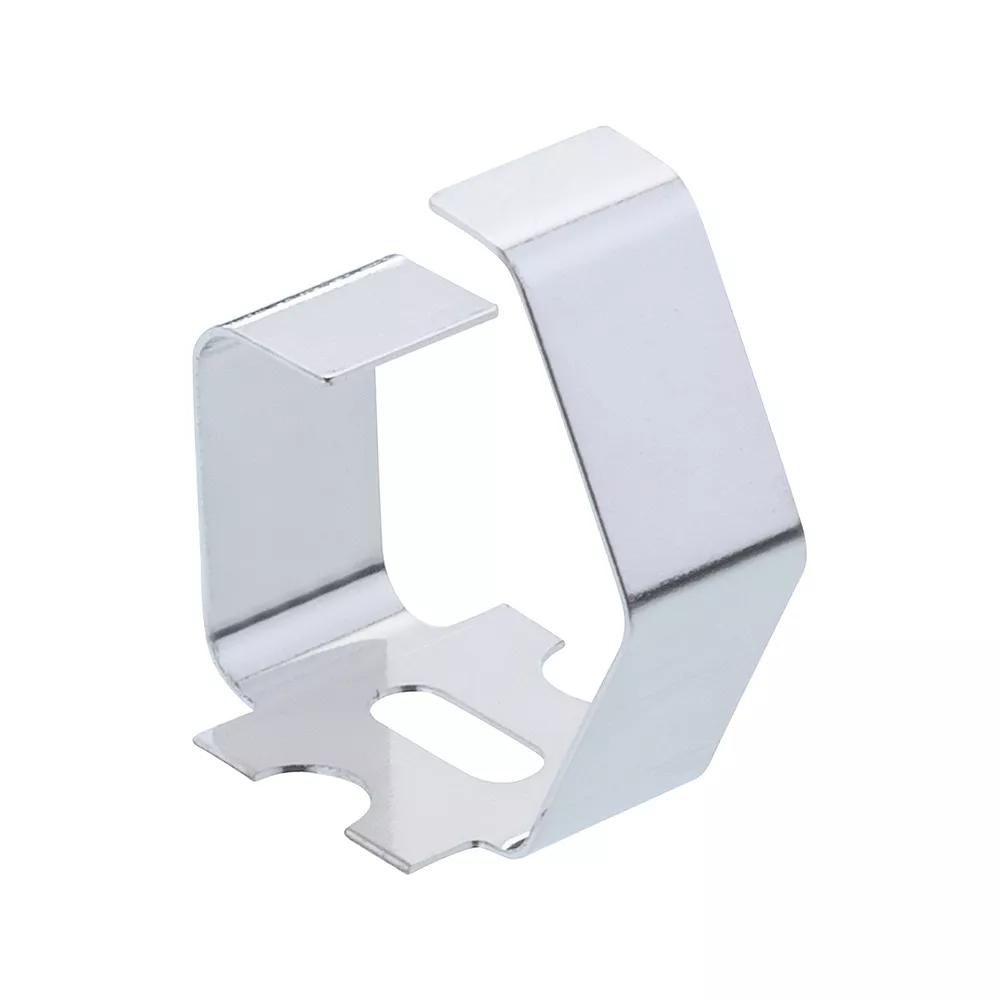

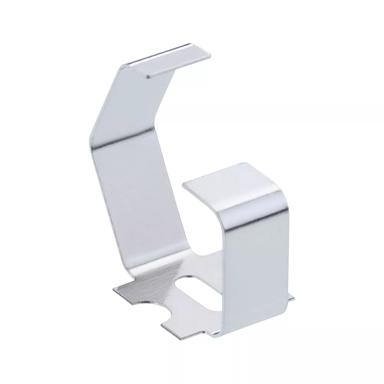

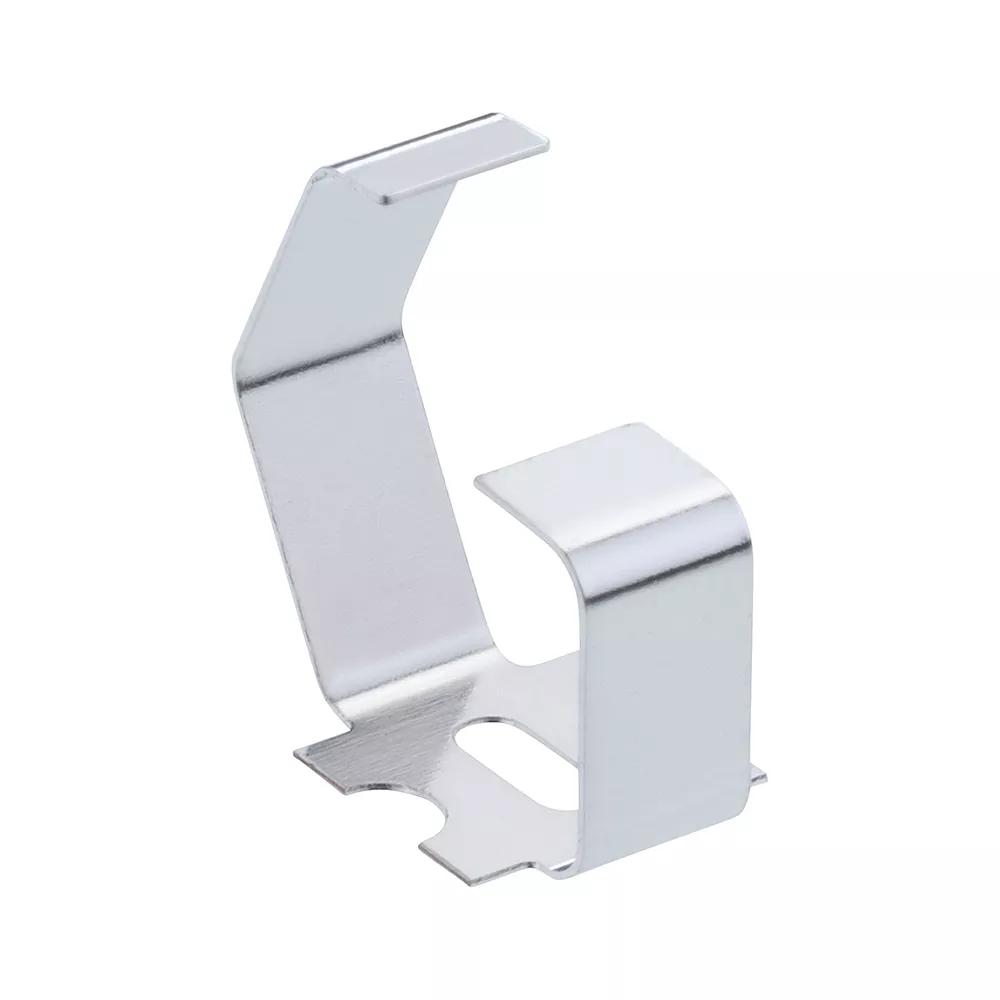

SMT Spring Contact
Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Tin finish on contact area and termination.
Multi-Directional contact point (accommodates both Vertical and Horizontal). Free height = 10.00mm.
Vertical working deflection = 0.50mm min, 1.20mm max. Horizontal working deflection = 0.40mm min, 1.10mm max.
Checking stock availability...
Check Availability
Further Details
Jump To:
Specification
Environmental Compliance
Technical Documentation
Test Reports
Product Information
Technical Details
Specifications
Connector Orientation:
Vertical and Horizontal
PCB Mounting:
Surface Mount (SMT)
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Cupro-Nickel
Packaging Style:
Tape and Reel
Height of Connector above PCB:
10.00mm
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Connection Type:
Surface Mount (SMT)
Current Rating:
14A max
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Weight:
0.124g
Dimensions:
9.55 x 5.70 x 10.00
Operating Temperature:
-55°C to +125°C
Country of Origin:
GB
Downloads
RoHS - S1991-46R
Material composition for S1991-46R product
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Technical Drawing / Datasheet - S1991R.pdf
C055XX Component Specification - Multi-Directional Spring Contacts
Outgassing data for Harwin products (plastics)
