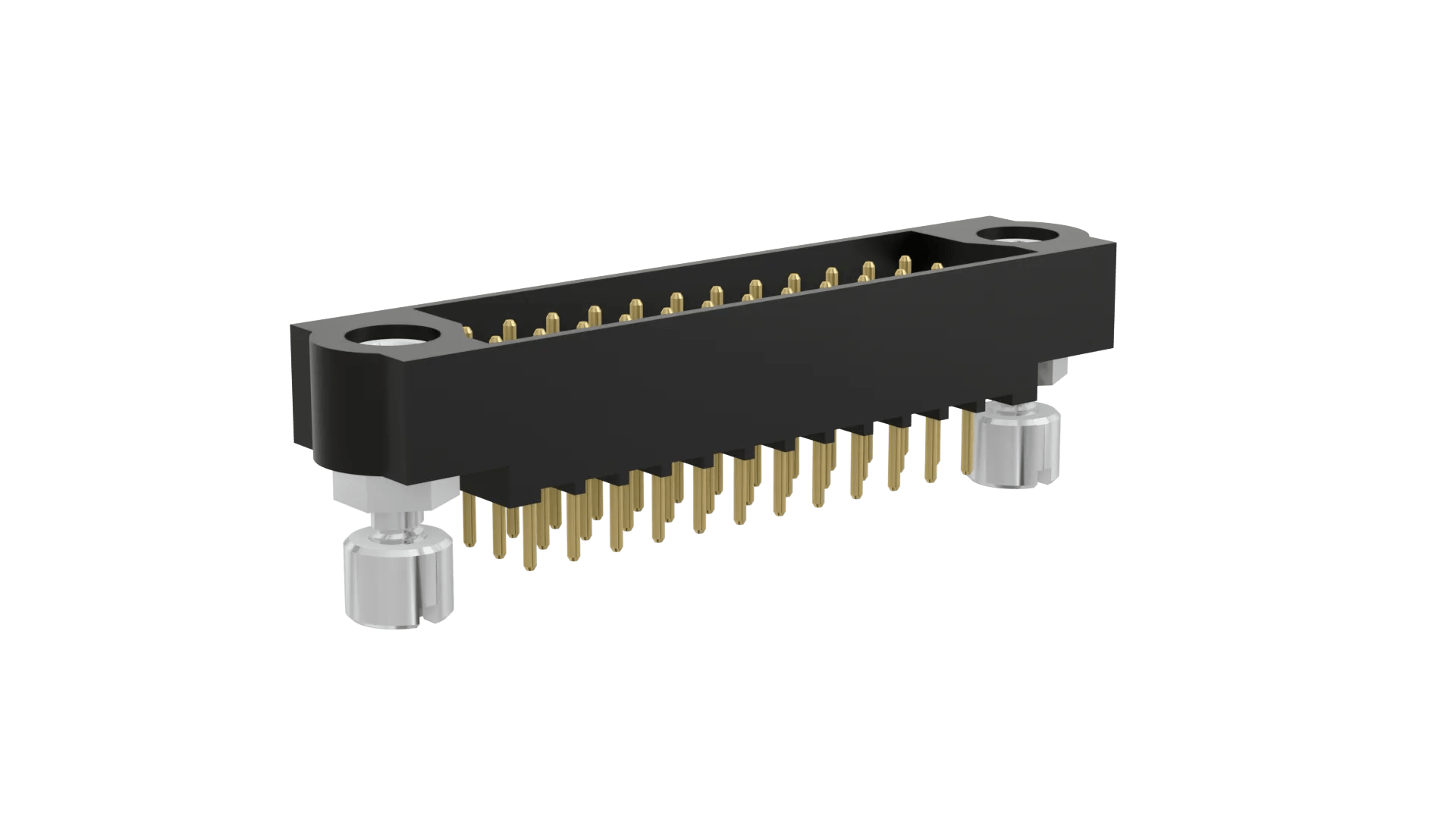

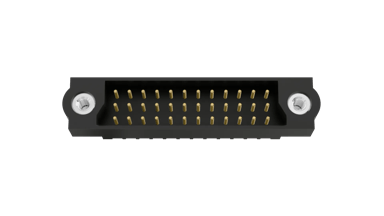

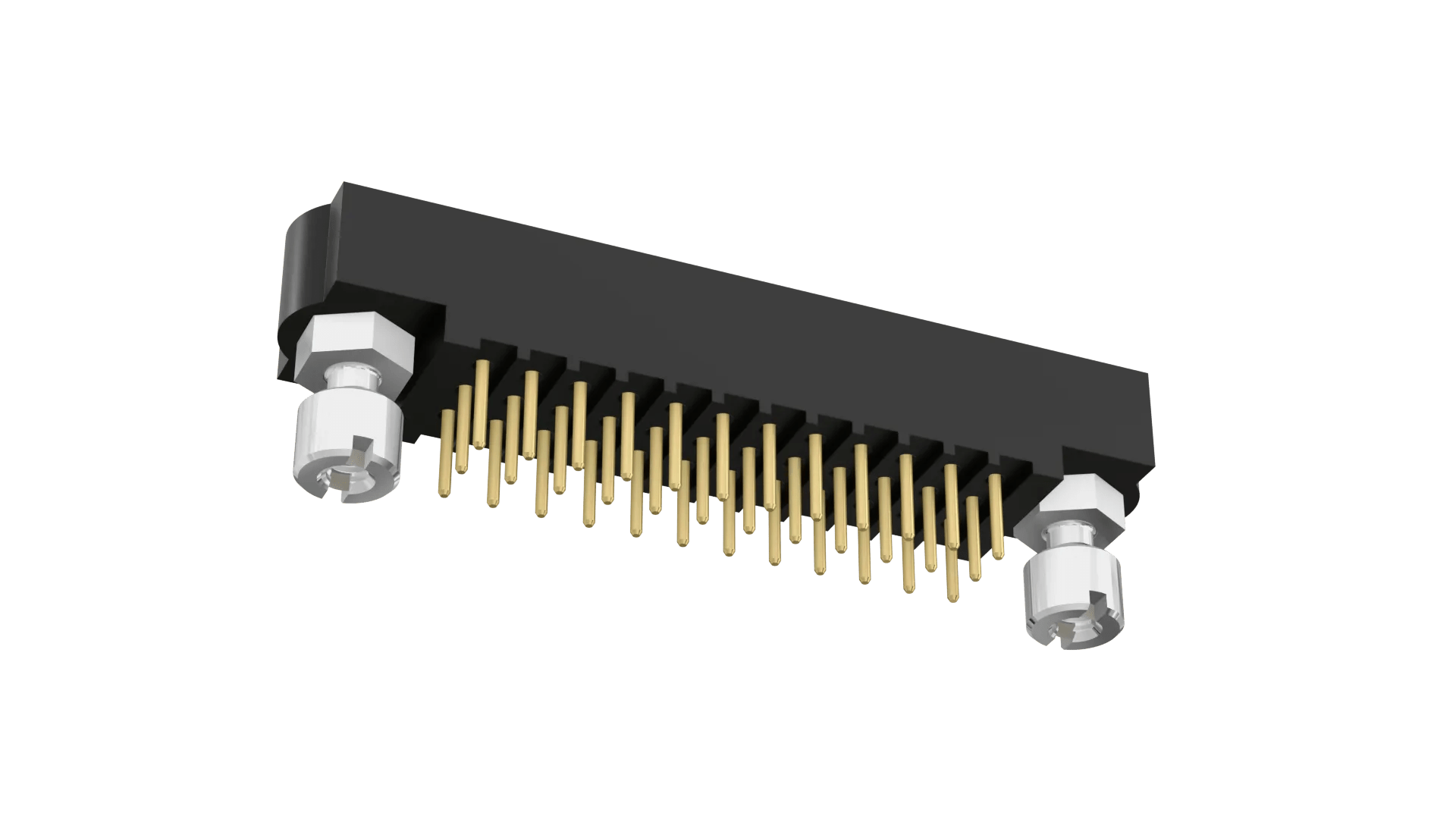

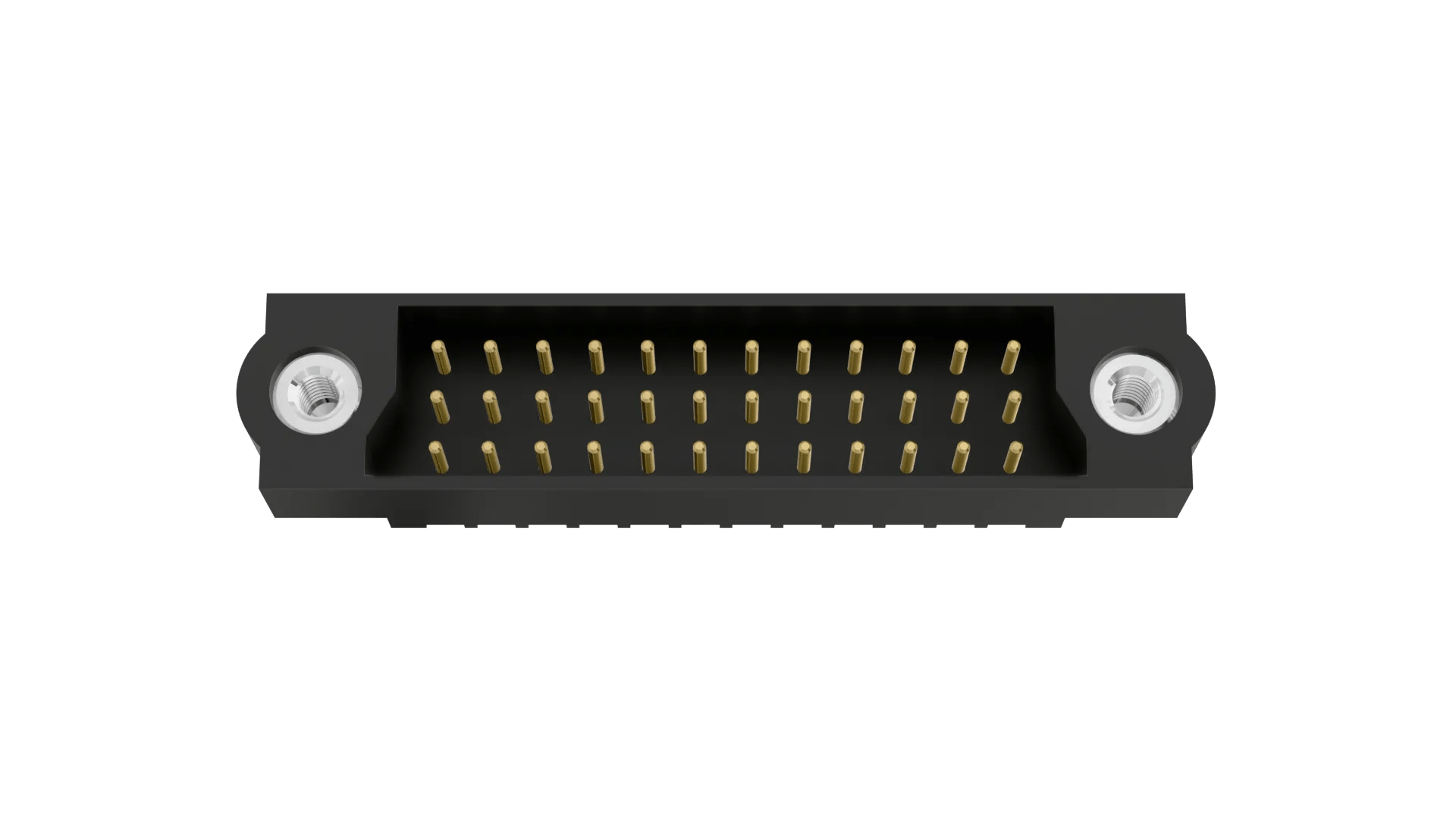

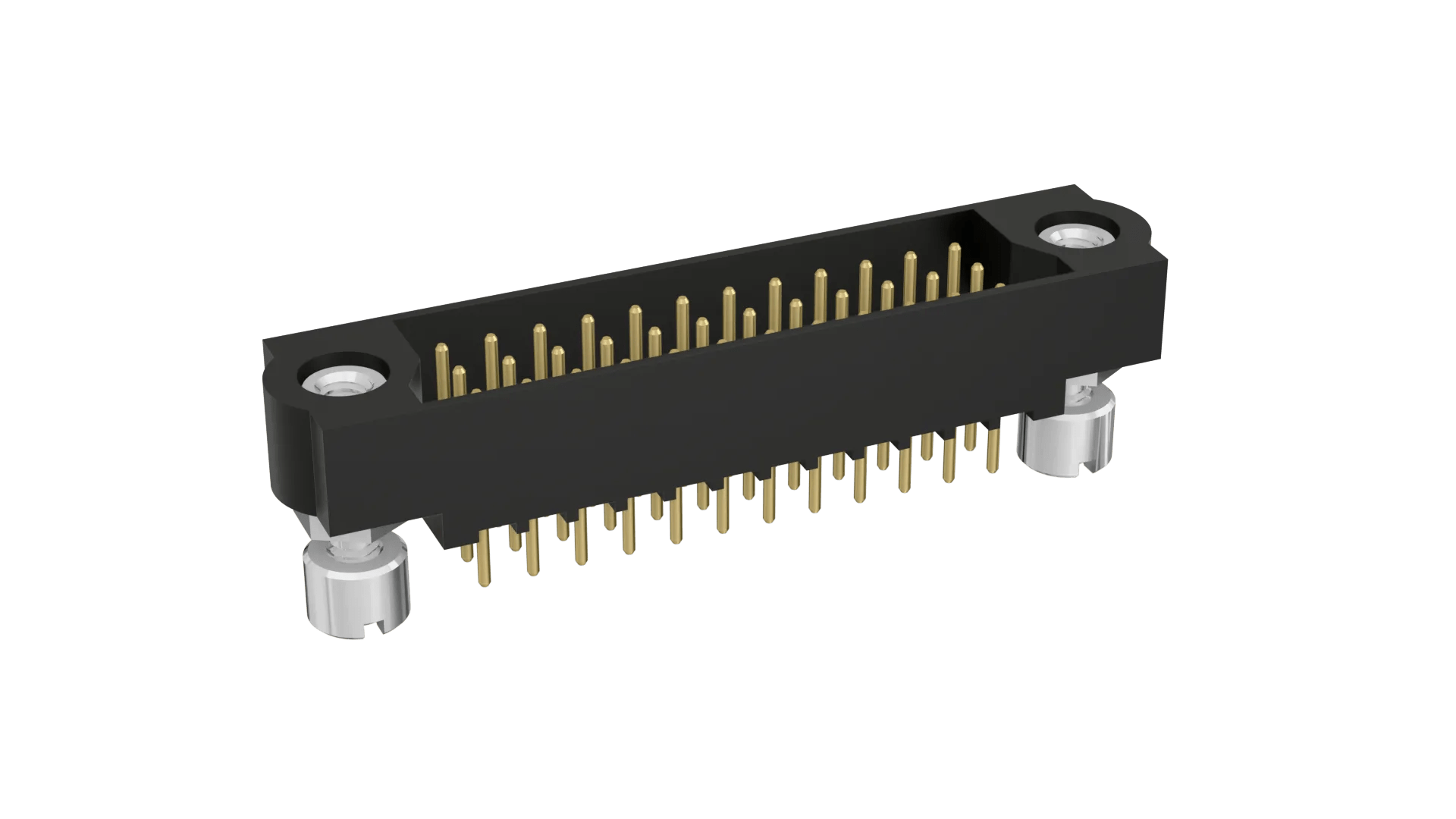

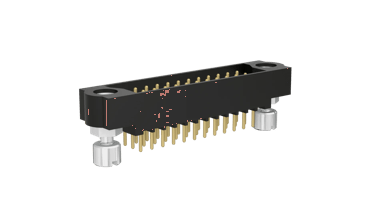

2.00mm Pitch High-Reliability Connector - Datamate J-Tek 3-Row
Triple Row, 3mm PC Tail connector with 3.5mm board mount jackscrews - 36 contacts (3 x 12).
Gold finish on contact area and termination. Slotted nuts provided for assembly to board mount jackscrew. For spare board mount nuts, order M80-2130000B.
For complete pin numbering or pin out information, see Component Specification C005XX.
Checking stock availability...
Check Availability
Further Details
Jump To:
Specification
Environmental Compliance
Technical Documentation
Product Information
Test Reports
Technical Details
Specifications
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
PCB Mounting:
PC Tail / Throughboard
Mating Pin Size:
Ø0.5mm
Style of Jackscrews:
Internal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
End Stackable:
No
Side Stackable:
No
Number of Rows:
3
Number of Signal Contacts:
36
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
PPS
Flammability Rating:
UL94V-0
Packaging Style:
Tray
Height of Connector above PCB:
6.05mm
PC Tail Length:
3.20mm
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Connection Type:
PC Tail / Throughboard
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Weight:
3.088g
Dimensions:
37.00 x 7.70 x 9.55
Operating Temperature:
-55°C to +125°C
Country of Origin:
GB
Polarised:
Yes
Cuttable:
No
Housing Colour:
Black
Thread Size:
M2
Downloads
RoHS - M83-LMT1M2N36-0000-000
Material composition for M83-LMT1M2NXX-0000-000 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Technical Drawing / Datasheet - M83-LMT1M2NXX-0000-000.pdf
Plating thickness on Datamate signal contacts & T-Contact
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Catalog page - Datamate J-Tek 3-Row Specification + Pin Numbering + Mating Profiles
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Product Datasheet - Datamate range: signal connectors (HRi)
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
