4.00mm Pitch High-Reliability Connector - Datamate Coax

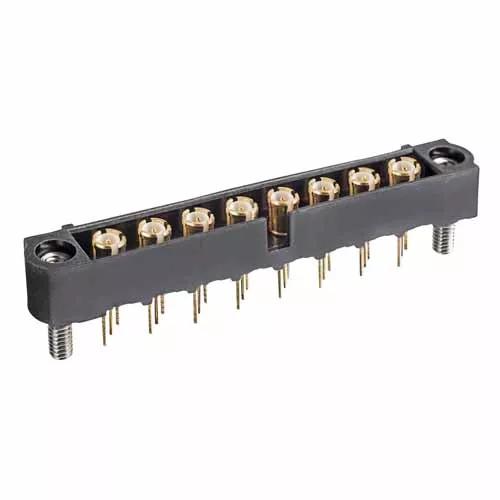

Jackscrews + 5mm board mount studs, 8 x 4.5mm PC Tail plug coax contacts assembled for vertical PCB connection. Gold finish on contact area and termination.
Use with slotted nuts M80-2130000B or hexagonal nuts M80-2430000B for board mount retention.
For complete pin numbering or pin out information, see Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Jackscrew with Board Mount Stud (Standard Gender)
Number of Rows:
1
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
8
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
0.5A per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Phosphor Bronze inner contact, Beryllium Copper outer shell
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
2.48g
Dimensions:
42.00 x 6.00 x 10.55
Thread Size:
M2
PC Tail Length:
4.50mm
Height of Connector above PCB:
5.55mm
Downloads
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Guide to the Datamate Coax range
Product Datasheet - Datamate Mix-Tek range (HRi)
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Technical Drawing / Datasheet - M80-MV312M3-XX.pdf
Plating thickness on Datamate power and coax contacts
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
RoHS - M80-MV312M3-08
Material composition for M80-MV312M3-XX series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
