4.00mm Pitch High-Reliability Connector - Datamate Coax

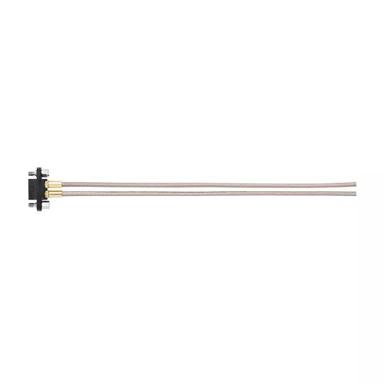

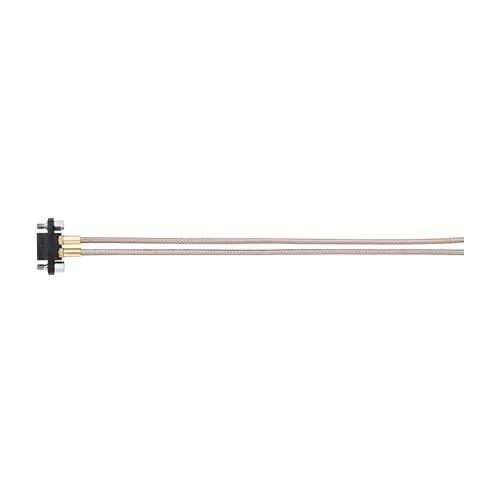

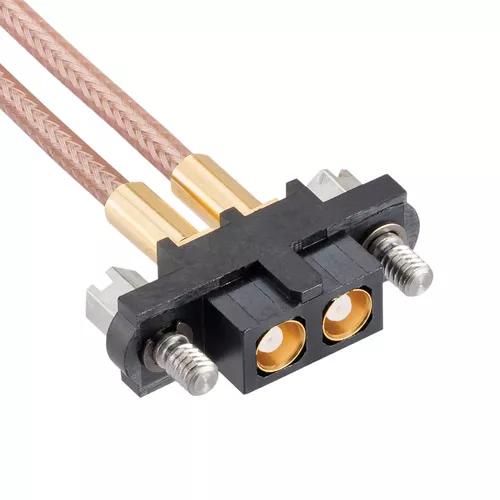

Ganged 50 Ohm coax multiport Female Single-Ended cable assembly, 2500mm long - 2 contacts. Fitted with floating jackscrews, hex slotted head.
Manufactured with M80-FC305F1-02 female Single Row coax crimp connector kit, assembled to tan RG178 coax cable. Gold finish on contact areas.
NOTE: This part number is being upgraded soon - please use M80-FC105-02-2500L for future orders.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Number of Rows:
1
Country of Origin:
GB/US
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
2
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
0.5A per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper inner contact, Brass outer shell
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Dimensions:
2500.30 x 18.00 x 5.50
Thread Size:
M2
Wire Size:
ø2mm (RG178)
Downloads
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Guide to the Datamate Coax range
Product Datasheet - Datamate Mix-Tek range (HRi)
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Training Module - Panel Mount with Datamate
Product Training Module - Cable Products from Harwin
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Technical Drawing / Datasheet - M80-FCXXXF1-XX-XXXXL.pdf
Plating thickness on Datamate power and coax contacts
C049XX Component Specification - Cable Assembly Specifications for all HRi products
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
RoHS - M80-FC305F1-02-2500L
Material composition for M80-FC305F1-XX-YYYYL series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
