4.00mm Pitch High-Reliability Connector - Datamate Coax

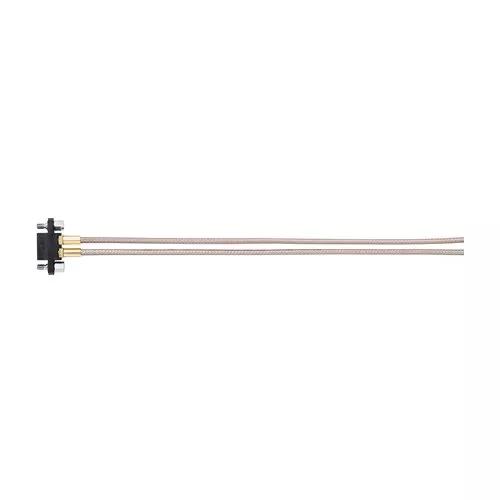

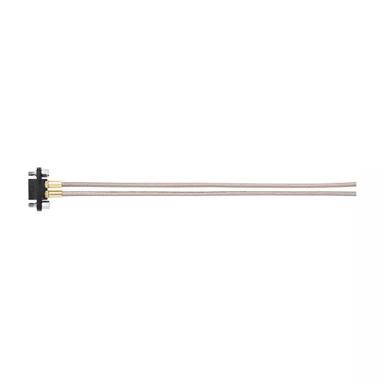

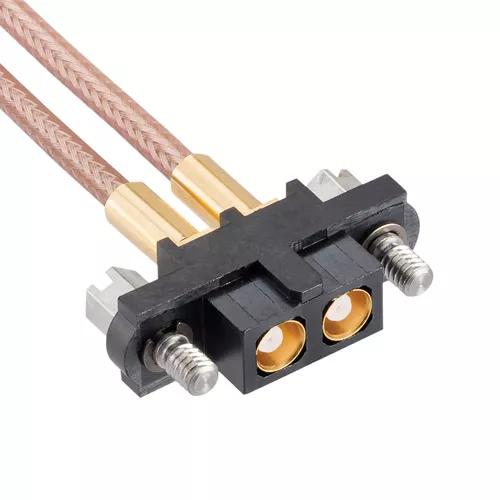

Ganged 50 Ohm coax multiport Female Single-Ended cable assembly, 150mm (6") long - 2 contacts. Fitted with floating jackscrews, hex slotted head.
Manufactured with M80-FC305F1-02 female Single Row coax crimp connector kit, assembled to tan RG178 coax cable. Gold finish on contact areas.
NOTE: This part number is being upgraded soon - please use M80-FC105-02-0150L for future orders.
Checking stock availability...
Check Availability
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
GB/US
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
2
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
0.5A per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper inner contact, Brass outer shell
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Dimensions:
150.30 x 18.00 x 5.50
Thread Size:
M2
Wire Size:
ø2mm (RG178)
