4.00mm Pitch High-Reliability Connector - Datamate Coax

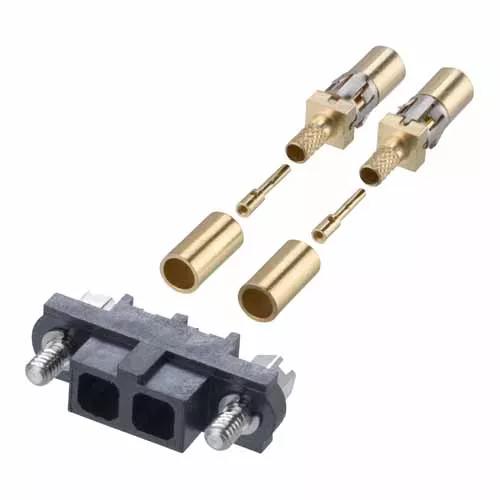

Complete kit: housing (with hexagonal slotted jackscrews) with 2 x jack coax contacts supplied loose.
Coax crimp contact suitable for RG178 (Ø2mm max insulation diameter). Gold finish on contact areas.
For complete pin numbering or pin out information, see Component Specification C005XX.
Checking stock availability...
Check Availability
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
2
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
0.5A per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper inner contact, Brass outer shell
Flammability Rating:
UL94V-0
Packaging Style:
Single Pack
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
1.741g
Dimensions:
18.00 x 5.50 x 13.70
Thread Size:
M2
Wire Size:
ø2mm (RG178)
