2.00mm Pitch High-Reliability Connector - Datamate

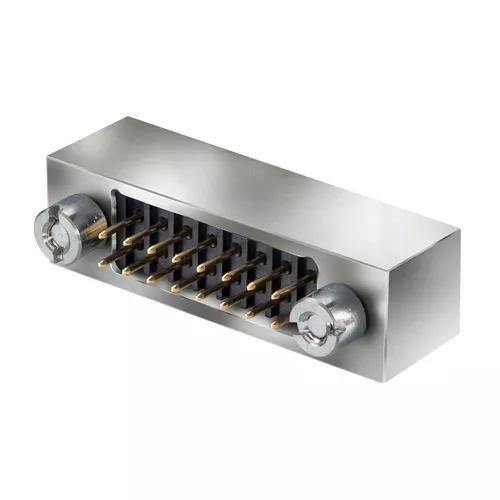

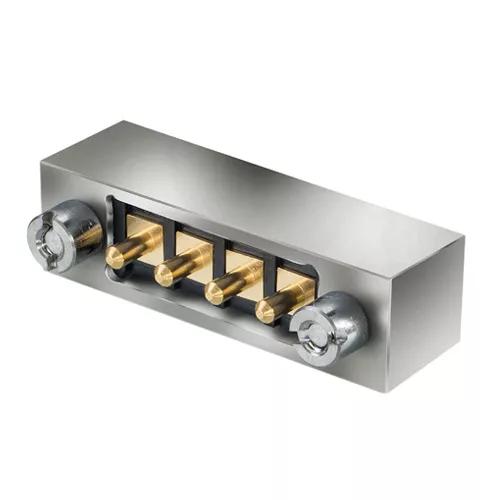

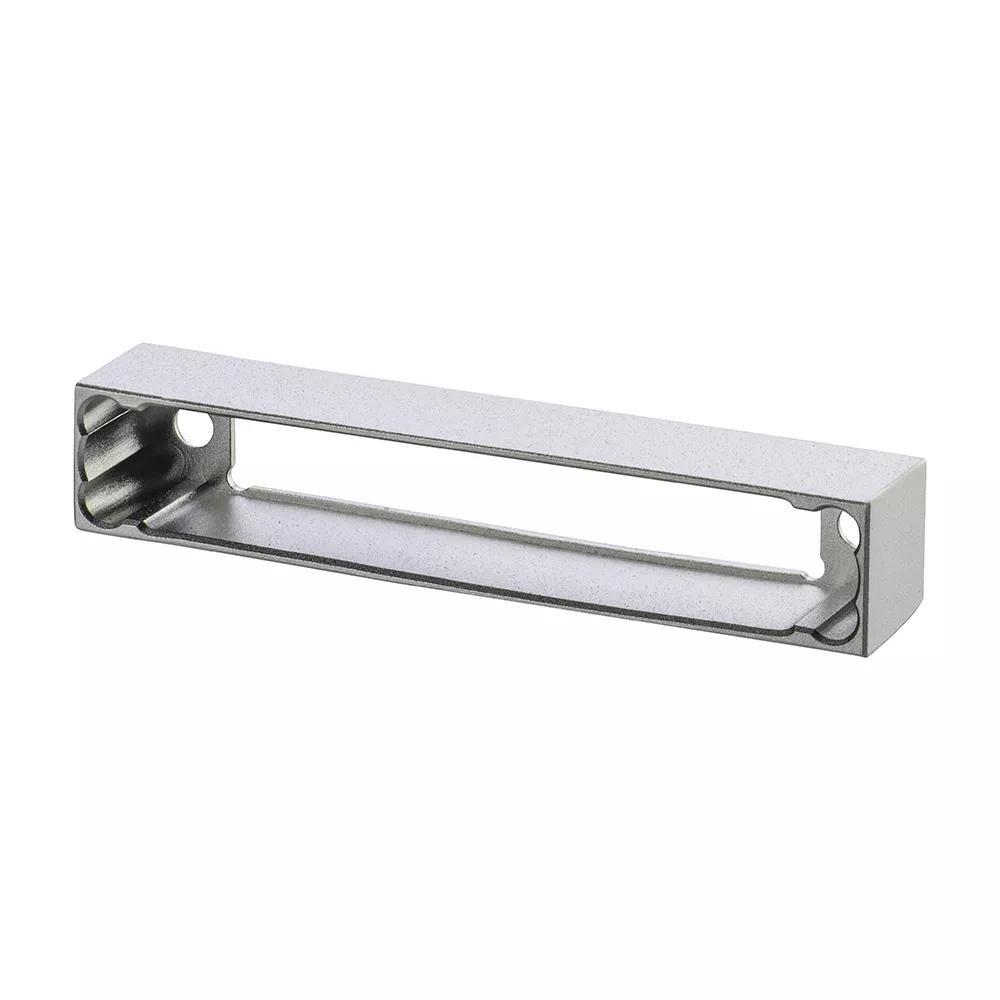

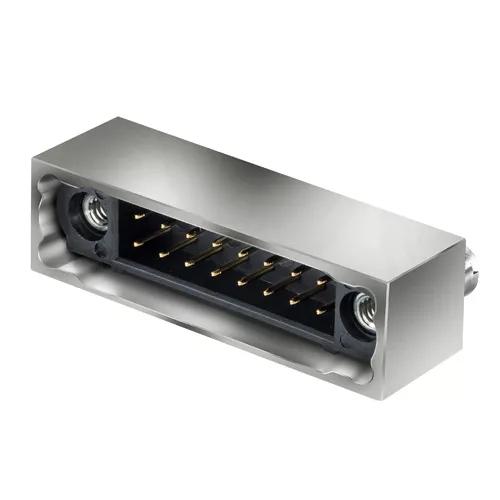

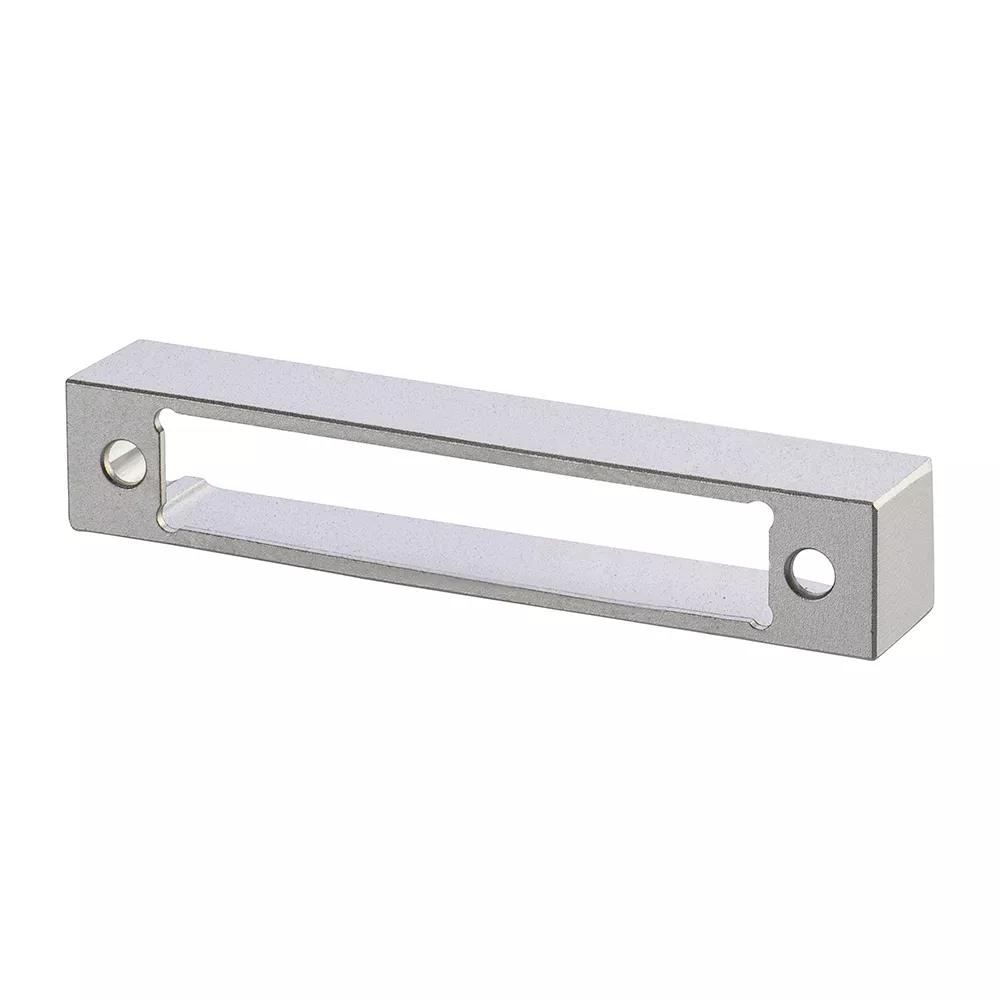

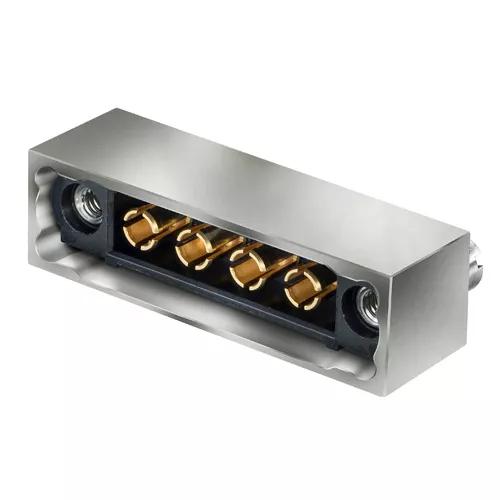

Aluminium alloy Metal Backshell with nickel plating, for front panel mounted cable connectors or vertical PCB-mounted connectors.
Suitable for J-Tek (all signal contacts) with 32 (16+16) contacts, or equivalent sized Mix-Tek connectors. If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
Accessory only - connectors to be purchased separately.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Compatible with Board Mount
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
32
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable:
No
Materials
Housing Material:
Aluminium Alloy
Packaging Style:
Bulk/Loose
Housing Colour:
Nickel
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
1.968g
Dimensions:
43.70 x 8.00 x 7.70
Height of Connector above PCB:
8.00mm
Downloads
Technical Drawing / Datasheet - M80-906.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Product Training Module - Overview of the Datamate Metal Backshells range
Product Training Module - Panel Mount with Datamate
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material Composition for M80-906 series
RoHS - M80-9063202
