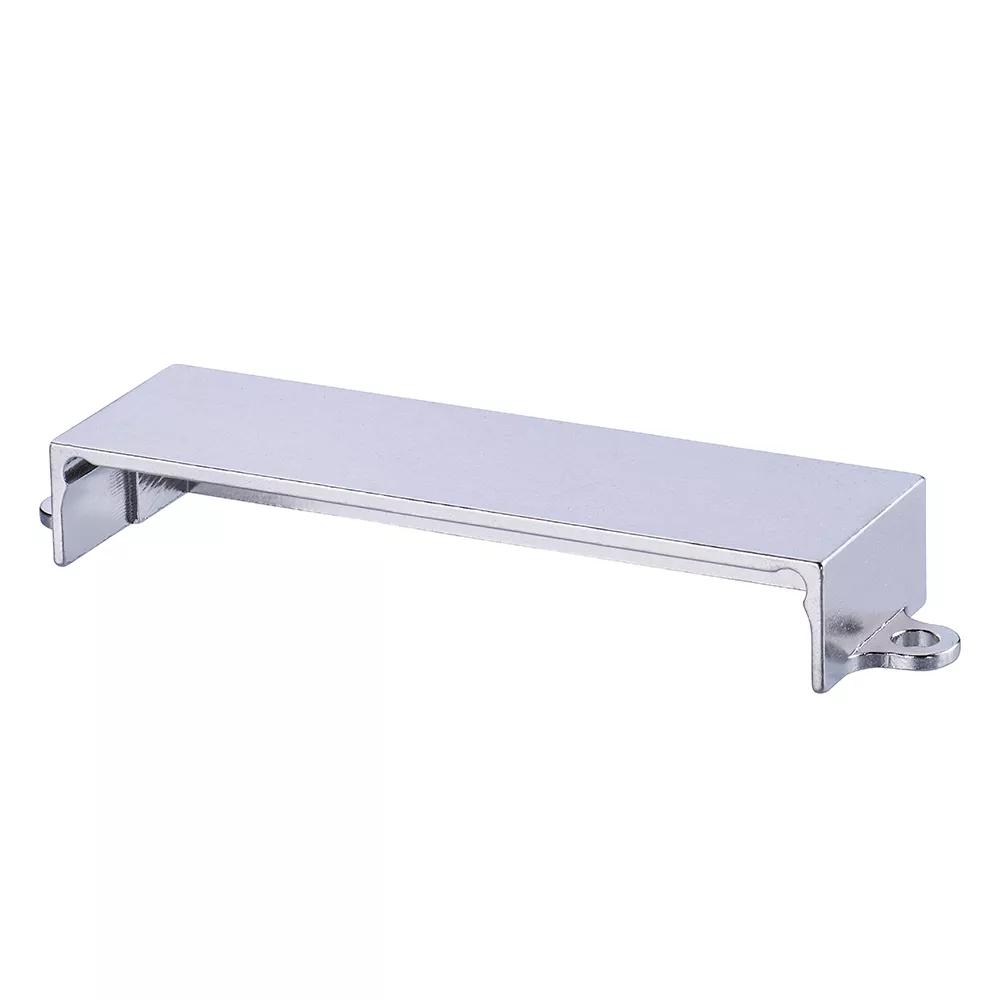

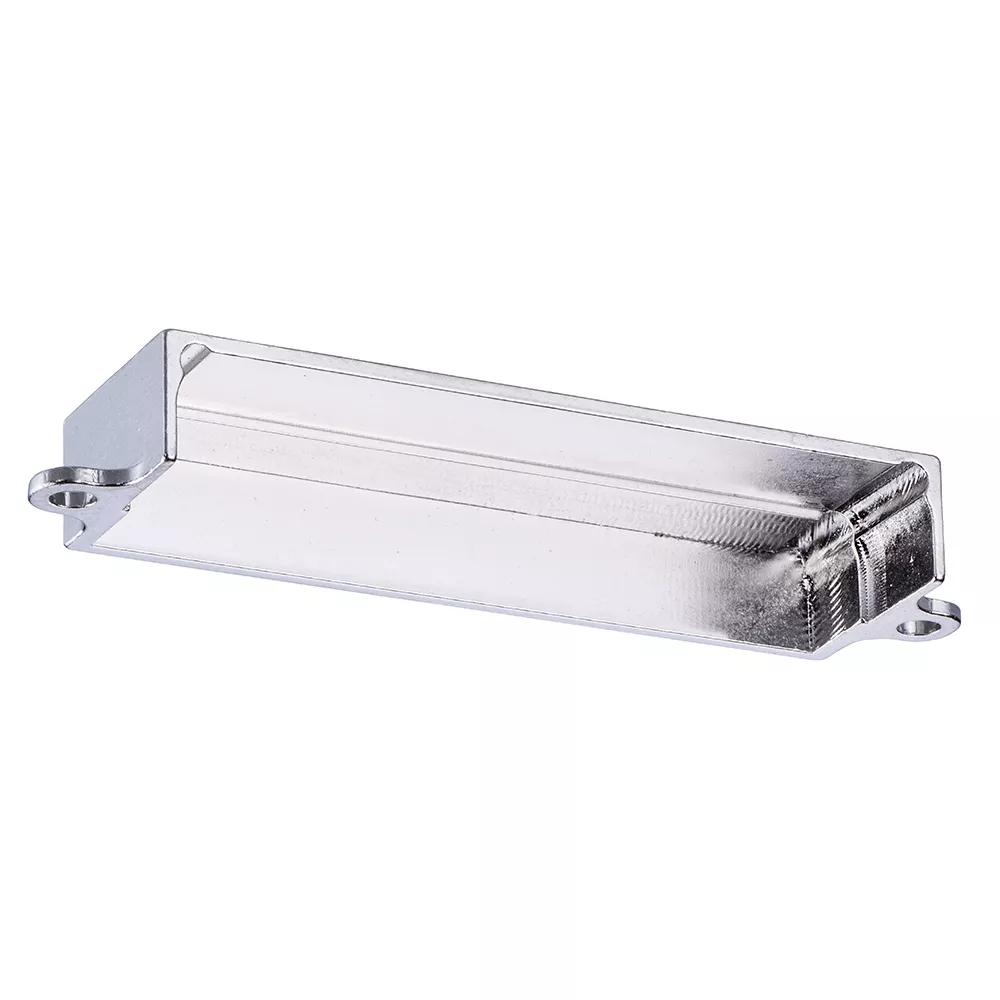

Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors - Throughboard or Surface Mount. Accessory only - connectors to be purchased separately.

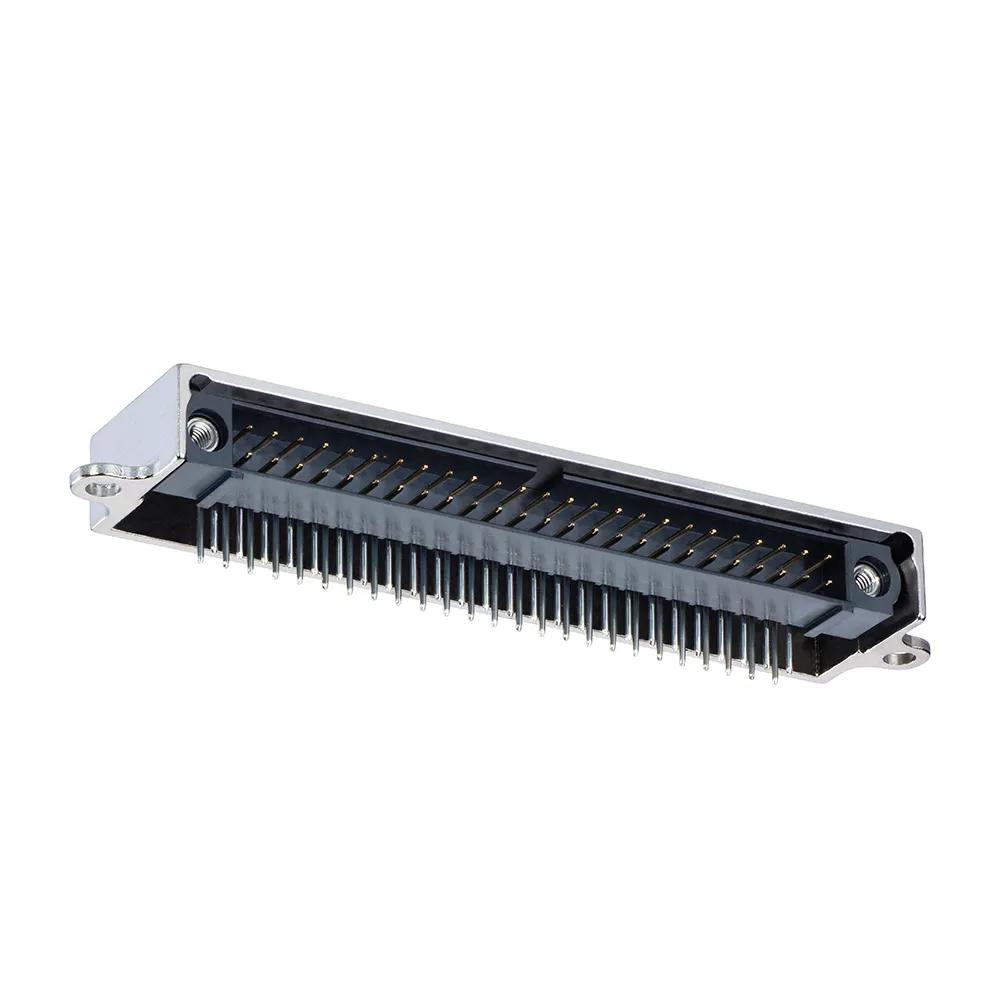

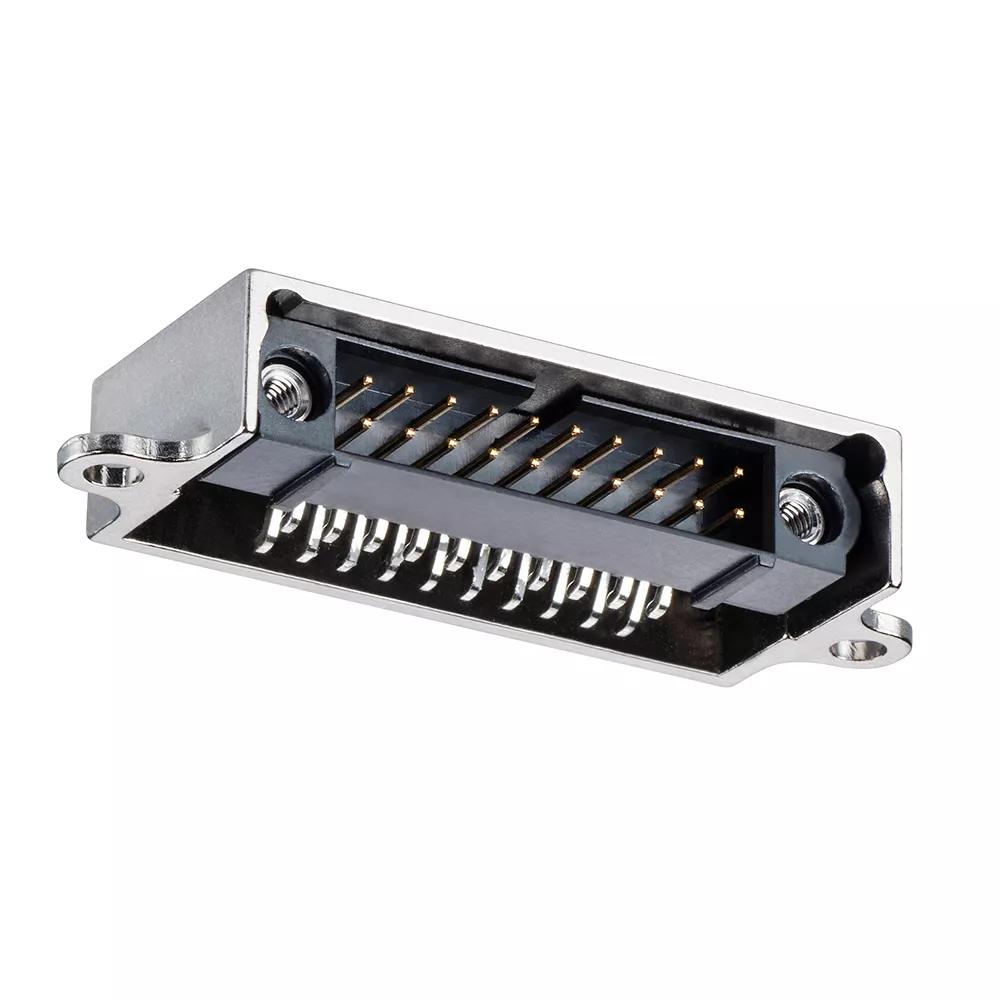

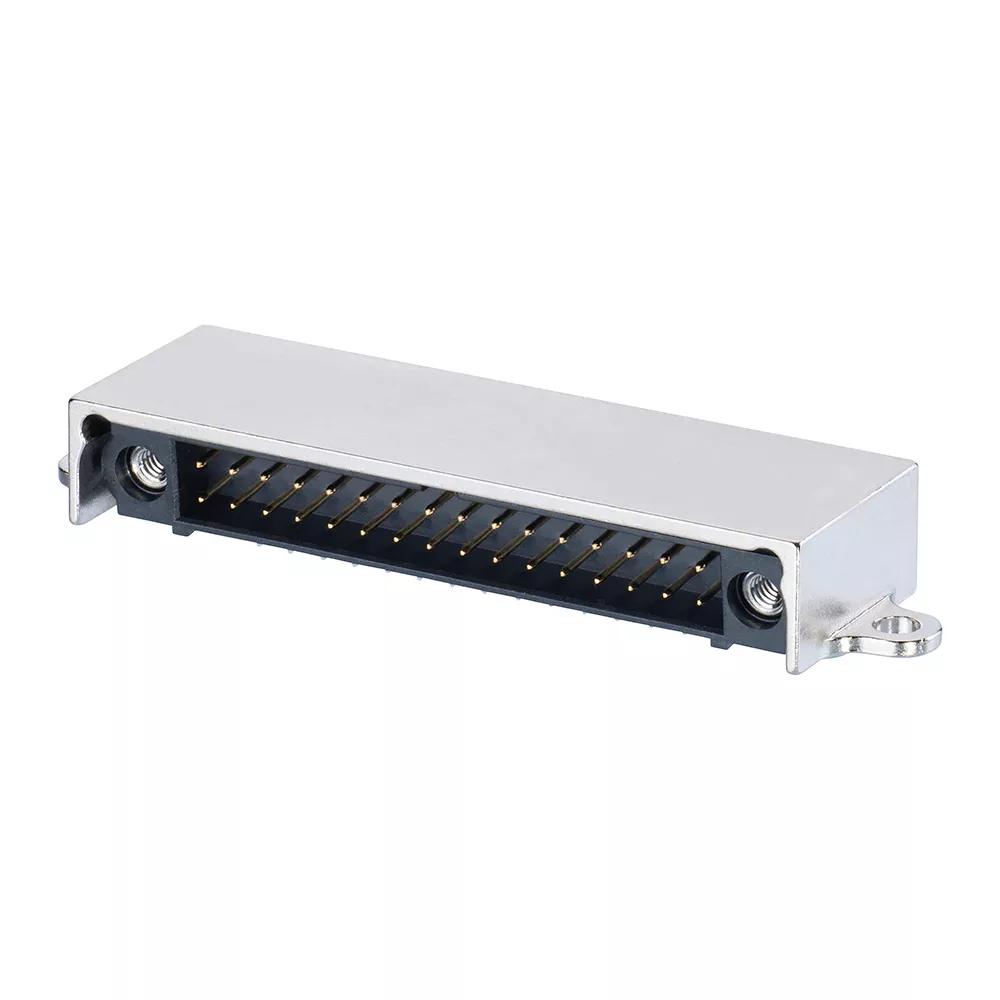

Suitable for J-Tek (all signal contacts) with 40 (20+20) contacts, or equivalent sized Mix-Tek connectors. Connectors can be fitted with internal or board-mounting fixings..

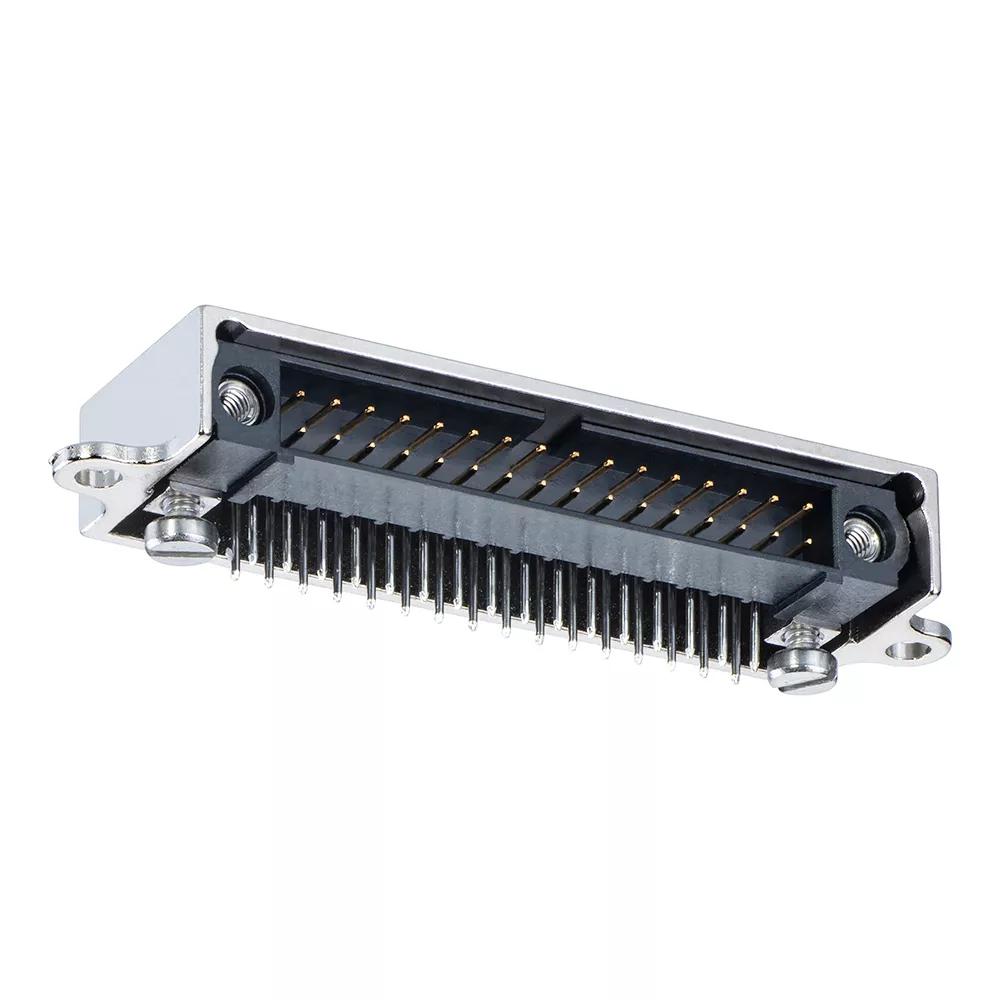

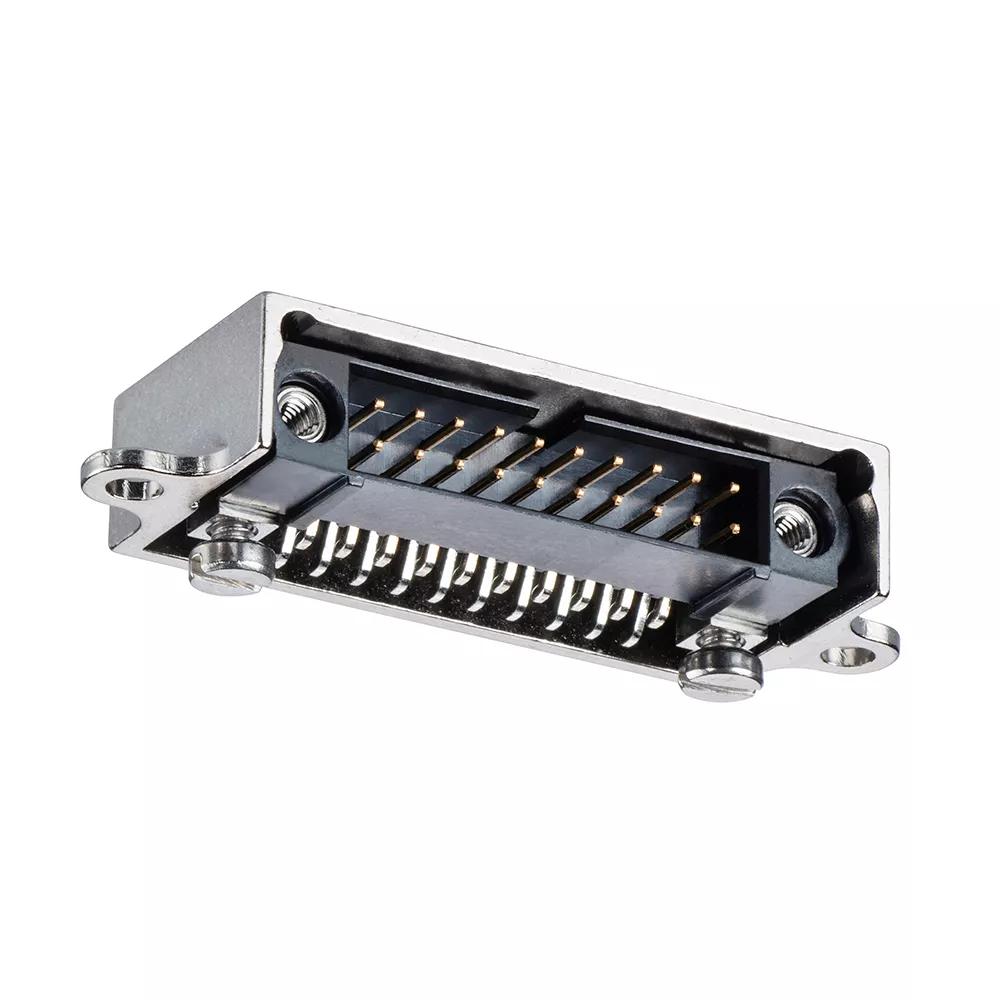

Use hex socket bolt M80-2320000B or slotted bolt M80-2270000B, combined with hex nut M80-2430000B or slotted nut M80-2130000B for mounting to PCBs up to 2mm thickness.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Compatible with Board Mount
Number of Rows:
2
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
40
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable:
No
Materials
Housing Material:
Aluminium Alloy
Packaging Style:
Bulk/Loose
Housing Colour:
Nickel
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
4.345g
Dimensions:
60.80 x 14.00 x 7.40
Height of Connector above PCB:
7.40mm
Downloads
Technical Drawing / Datasheet - M80-904.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Product Training Module - Overview of the Datamate Metal Backshells range
Product Datasheet - Datamate range: signal connectors (HRi)
Product Datasheet - Datamate Mix-Tek range (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-904 series
RoHS - M80-9044002
