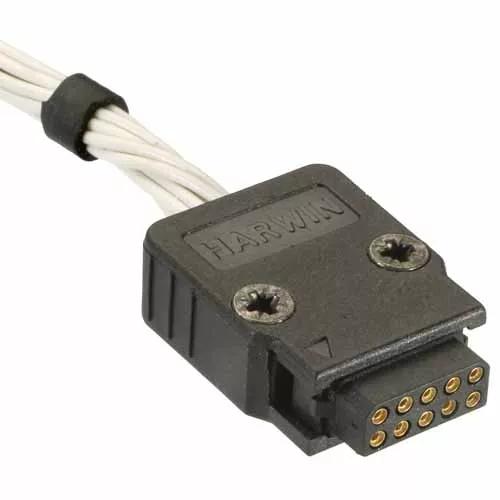

Use with Datamate L-Tek female Double Row crimp connector 14 (7+7) contacts, mate with male unlatched connectors only.
Hood kit of parts, including: body, cover, cable clamp and screws. See instruction sheet IS-08 for advice on use.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
None
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
14
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Polarised:
No
Cuttable:
No
Materials
Housing Material:
PBT
Flammability Rating:
UL94V-0
Packaging Style:
Single Pack
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
2.885g
Dimensions:
20.00 x 20.30 x 7.71 max
Downloads
Technical Drawing / Datasheet - M80-880.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-08 - M80-880 Datamate Cable Hood Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate range: signal connectors (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M80-880 series
RoHS - M80-8801498
