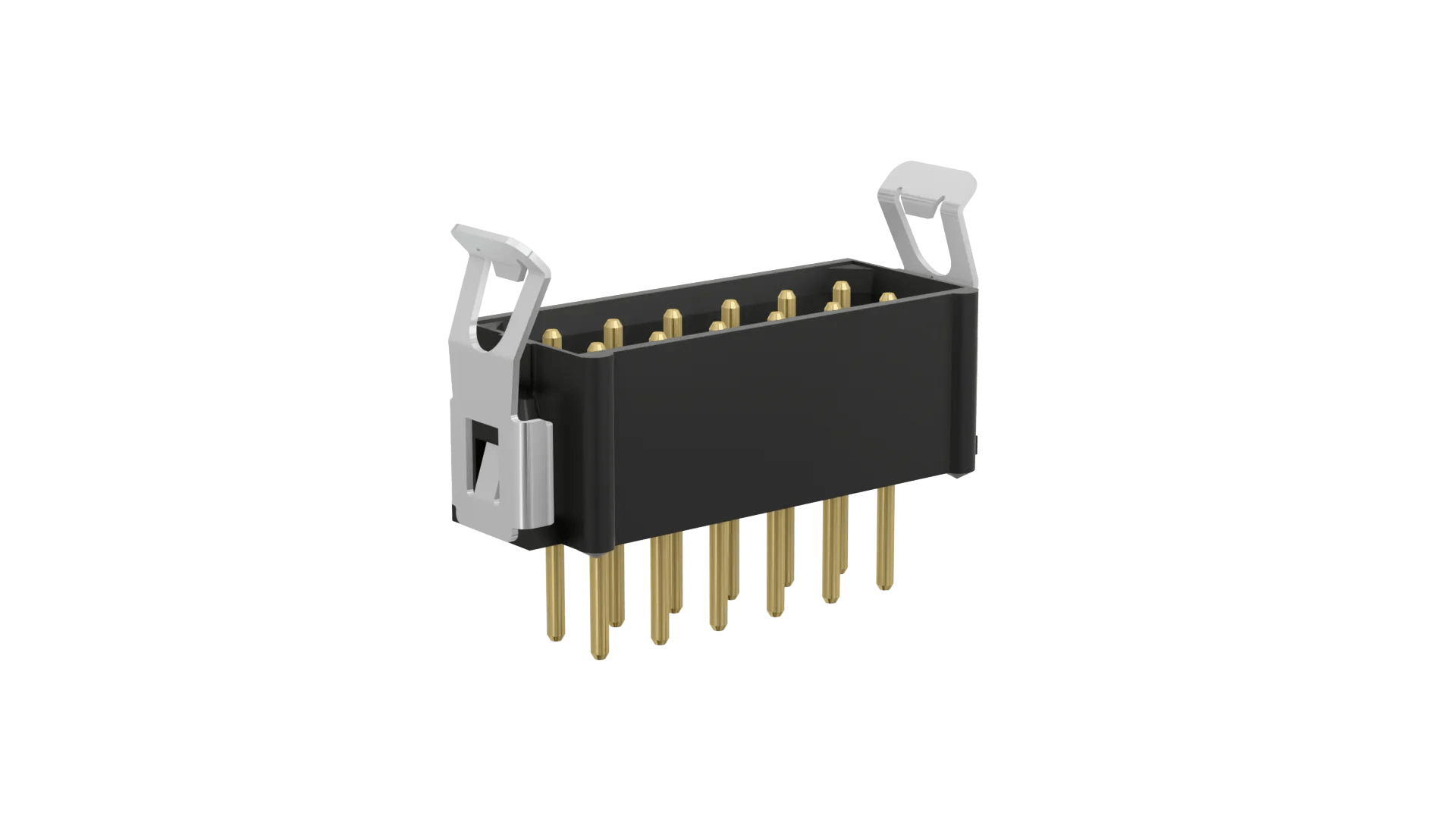

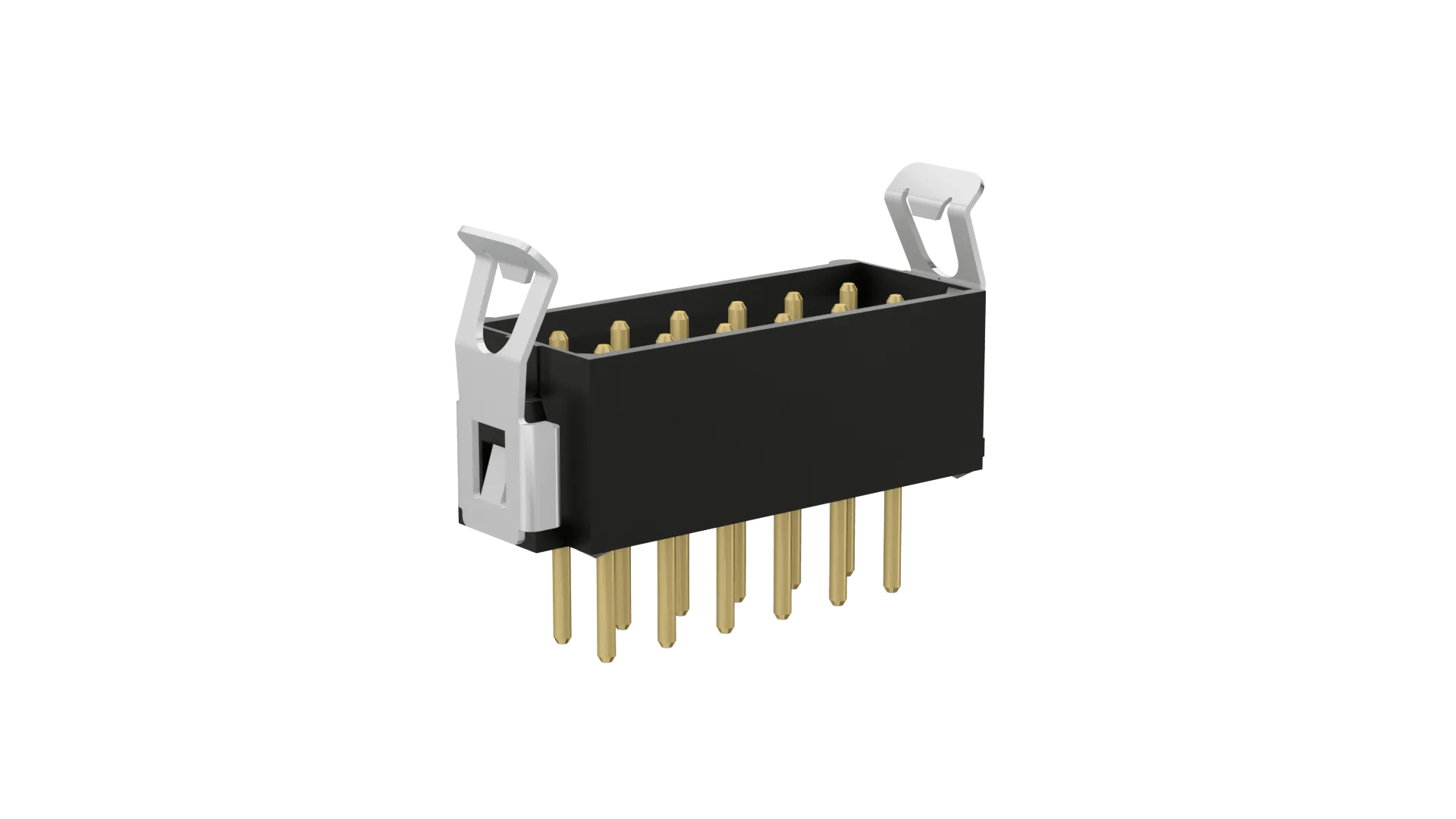

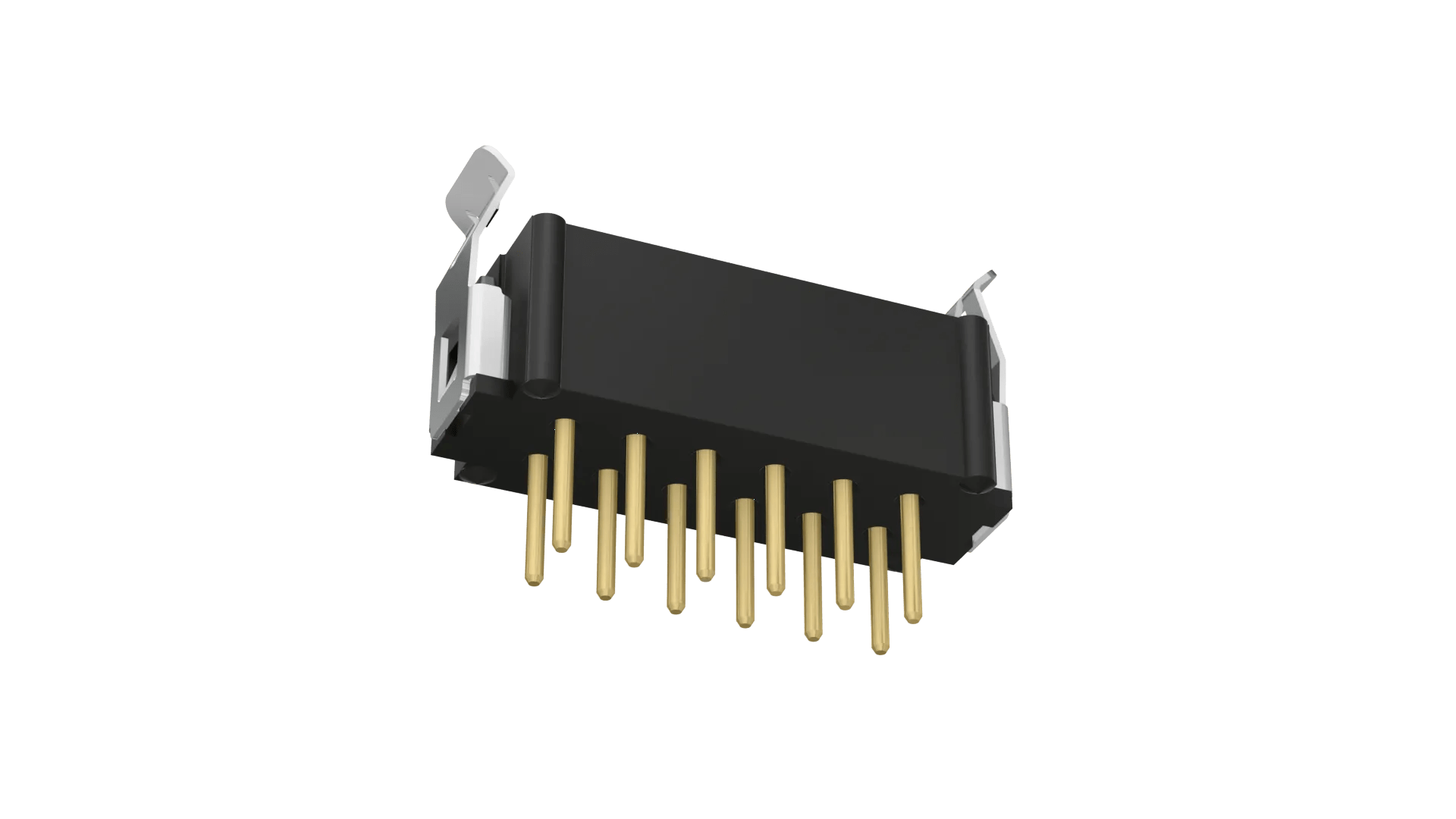

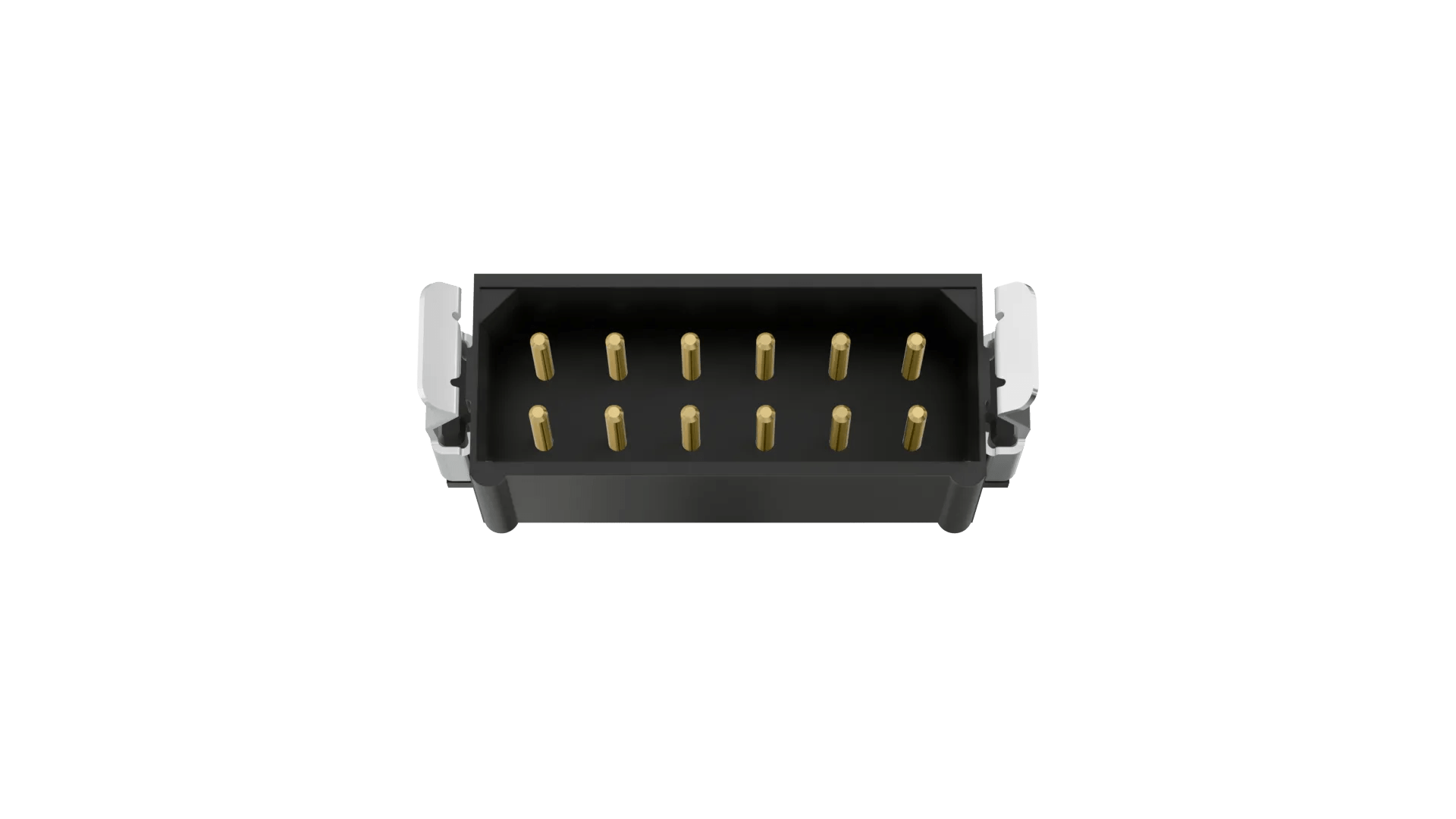

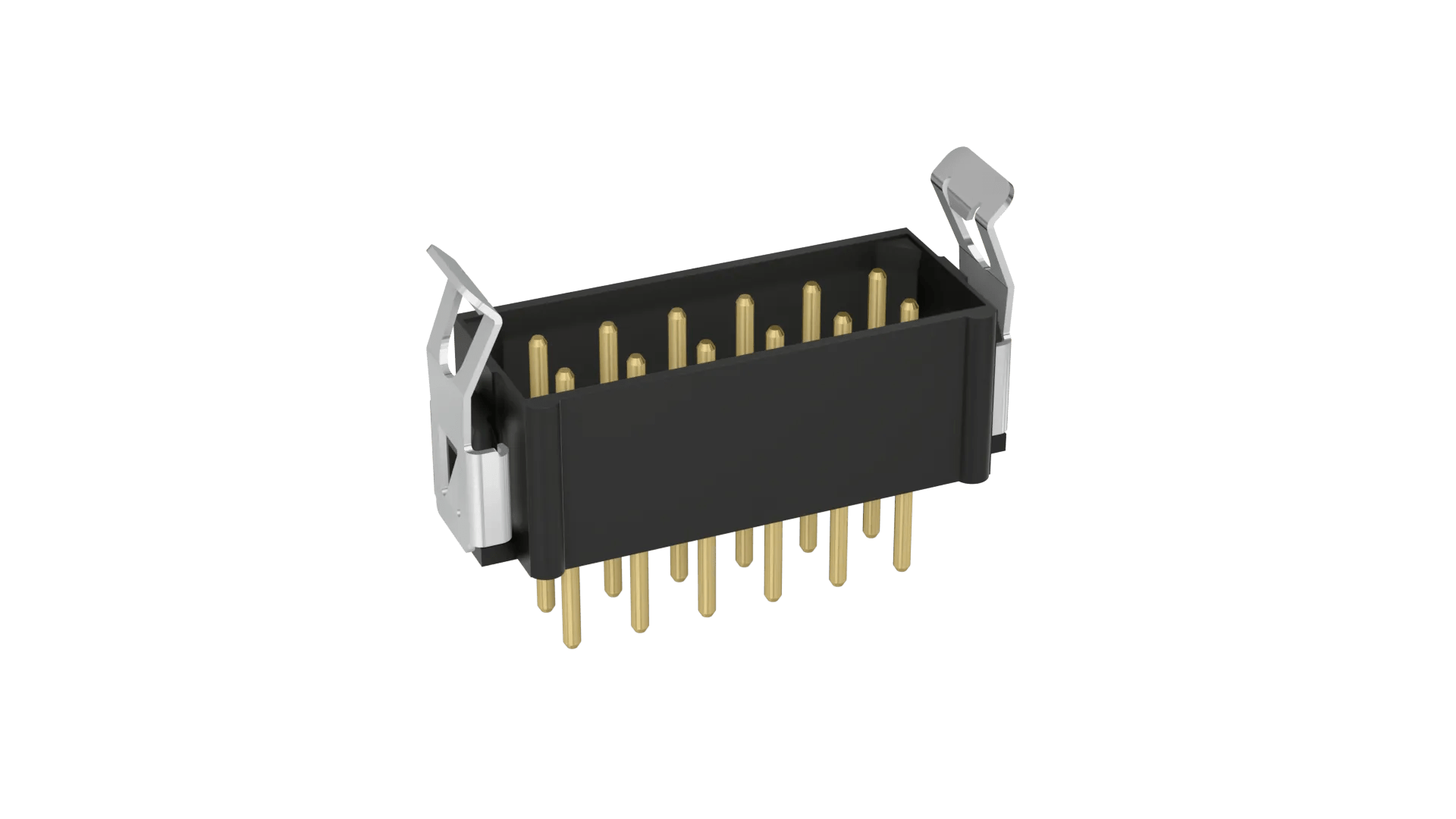

Double Row, 12 (6+6) x 3mm PC Tail contacts - Gold finish on contact area, Tin finish on termination.
Locking latches - tooling required to separate mated connectors.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
Locking Latch
Mating Pin Size:
Ø0.5mm
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
12
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
0.639g
Dimensions:
16.10 x 5.85 x 11.35
PC Tail Length:
3.00mm
Height of Connector above PCB:
8.35mm
