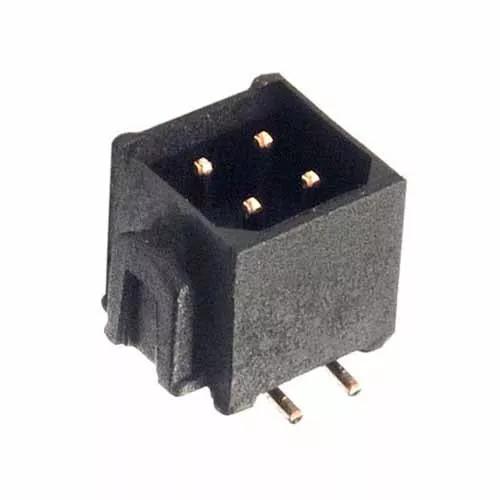

2.00mm Pitch High-Reliability Connector - Datamate L-Tek
Double Row, 4 (2+2) x Surface Mount contacts - Gold finish on contact area, Tin finish on termination.
Unlatched (latches not fitted). Packaged in tubes.
For complete pin numbering or pin out information, see Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Change Notifications
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
None
Mating Pin Size:
Ø0.5mm
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
4
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
0.236g
Dimensions:
7.60 x 7.50 x 6.10
Height of Connector above PCB:
6.10mm
Downloads

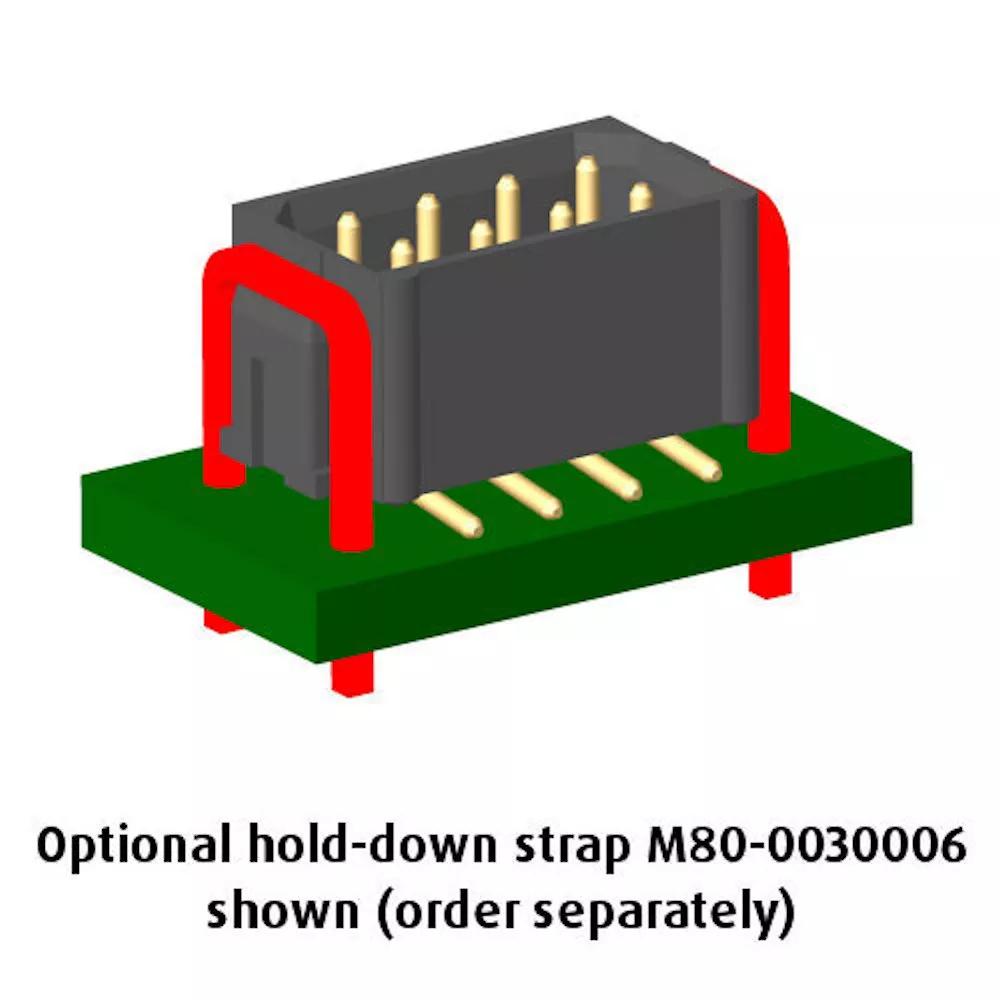

Product Training Module - Using the Datamate Strain Relief Strap M80-0030006
Catalog page - Datamate L-Tek Mating Profiles
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Product Datasheet - Datamate range: signal connectors (HRi)
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Technical Drawing / Datasheet - M80-826.pdf
Plating thickness on Datamate signal contacts & T-Contact
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
RoHS - M80-8260442
Material composition for M80-826 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
