M80-5S22442MD

M80-5S22442MD

12+12 Pos. Male DIL Horizontal SMT Conn. 101Lok

HRi

M80-5S22442MD

12+12 Pos. Male DIL Horizontal SMT Conn. 101Lok

2.00mm Pitch High-Reliability Connector - Datamate J-Tek

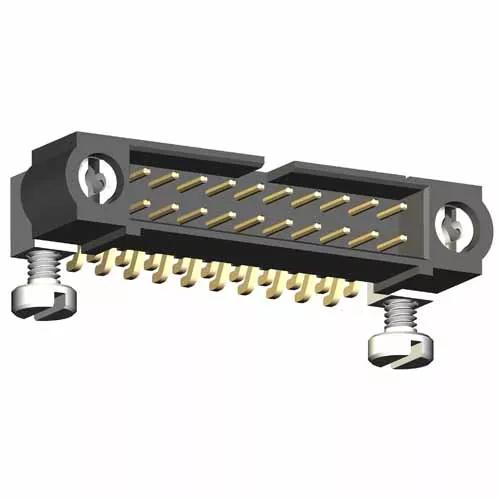

  • Double Row, Surface Mount horizontal connector, 101Lok retainers with 5mm board mount - 24 contacts (12+12).

  • Gold finish on contact area, Tin finish on termination. Slotted bolts provided for assembly to board mount jackscrews. For spare board mount bolts, order M80-2270000B.

  • For complete pin numbering or pin out information, see the Component Specification C005XX.

View Technical Details

Out of Stock

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Style of Jackscrews:

    101Lok Receptacle with Board/Front Panel Mount

  • Mating Pin Size:

    Ø0.5mm

  • Number of Rows:

    2

  • Connector Orientation:

    Horizontal

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    24

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    Dependent on mating contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PPS

  • Base Material of Contact:

    Brass

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    2.00mm (0.079")

  • Weight:

    2.782g

  • Dimensions:

    34.00 x 10.10 x 6.00

  • Thread Size:

    M2

  • Height of Connector above PCB:

    6.00mm

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - M80-5S2XXXXMD.pdf

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Plating thickness on Datamate signal contacts & T-Contact

    • Product Information

  • Catalog page - Datamate J-Tek Mating Profiles

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

  • Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok

  • Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

  • Product Datasheet - Datamate range: signal connectors (HRi)

    • Test Reports

  • Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000

  • Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance

  • Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests

  • Test Report HT010 - Datamate Mechanical - Horizontal SMT Contacts for male J-Tek connectors

  • Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok

  • Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

  • Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0

  • Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump

    • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material composition for M80-5S2XXXXMD series

  • RoHS - M80-5S22442MD
