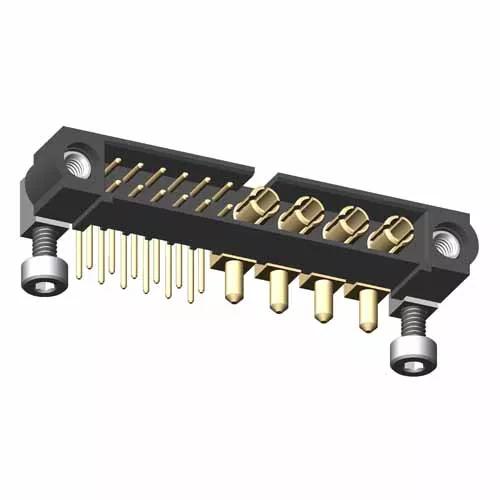

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Jackscrews + 5mm board mount (with hex socket head bolt), 12 x signal and 4 x power contacts assembled for horizontal PCB connection. 3mm length PC Tail signal contacts, 3.5mm length PC Tail power contacts.
Gold finish on contact area and termination. For spare board mount bolts, order M80-2320000B.
For complete pin numbering or pin out information, see Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Jackscrew with Hex Socket Board Mount Bolts (Standard Gender)
Mating Pin Size:
Ø0.5mm (signal)
Number of Rows:
Mixed
Connector Orientation:
Horizontal
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
4
Number of Signal Contacts:
12
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Phosphor Bronze (signal), Beryllium Copper (power)
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
4.382g
Dimensions:
38.00 x 8.60 x 9.50
Thread Size:
M2
PC Tail Length:
3.00mm and 3.50mm
Height of Connector above PCB:
6.00mm
