2.00mm Pitch High-Reliability Connector - Datamate J-Tek

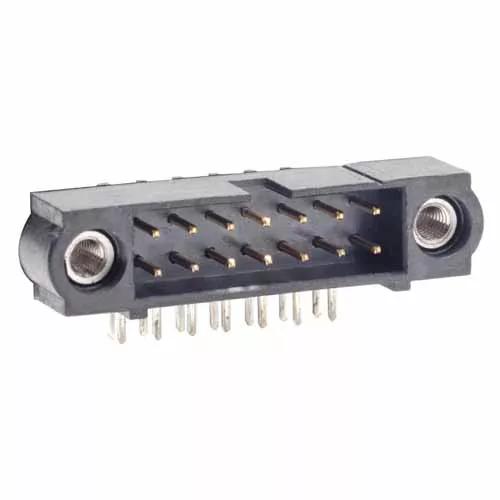

Double Row, 3mm PC Tail connector with jackscrews (internal only) - 14 contacts (7+7).
Gold finish on contact area, Tin/Lead finish on termination.
For complete pin numbering or pin out information, see Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Jackscrew (Standard Gender)
Mating Pin Size:
Ø0.5mm
Number of Rows:
2
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
14
Operating Temperature:
-55°C to +125°C
RoHS Status:
Not RoHS Compliant (2015/863/EU)
Current Rating:
Dependent on mating contact
Soldering Data:
Max Solder Temperature: 235°C for 5 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Tin/Lead
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
1.264g
Dimensions:
24.00 x 8.25 x 9.00
Thread Size:
M2
PC Tail Length:
3.00mm
Height of Connector above PCB:
6.00mm
Downloads
Catalog page - Datamate J-Tek Mating Profiles
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Product Datasheet - Datamate range: signal connectors (HRi)
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Technical Drawing / Datasheet - M80-530.pdf
Plating thickness on Datamate signal contacts & T-Contact
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
RoHS - M80-5301422
Material composition for M80-530 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
