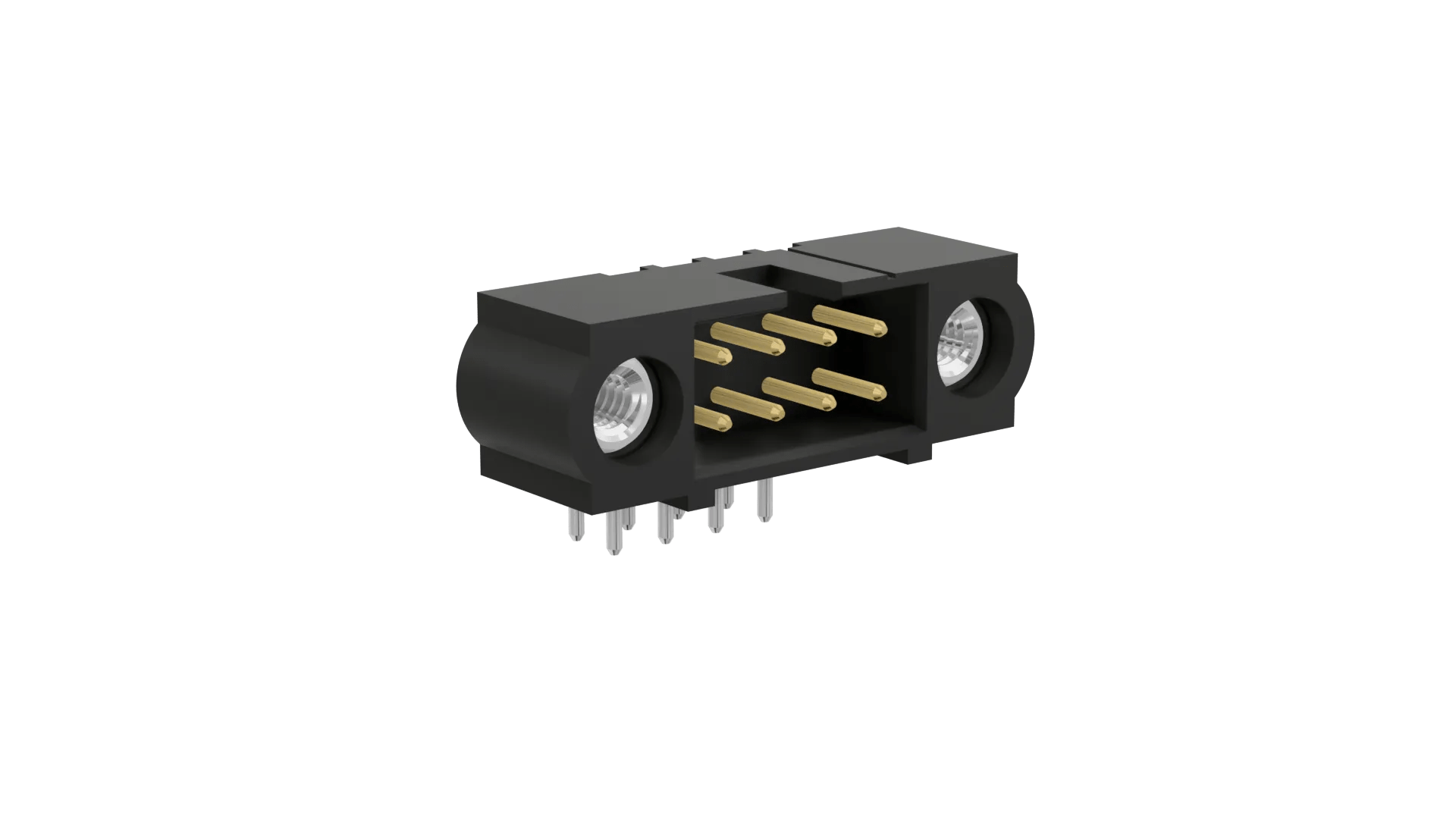

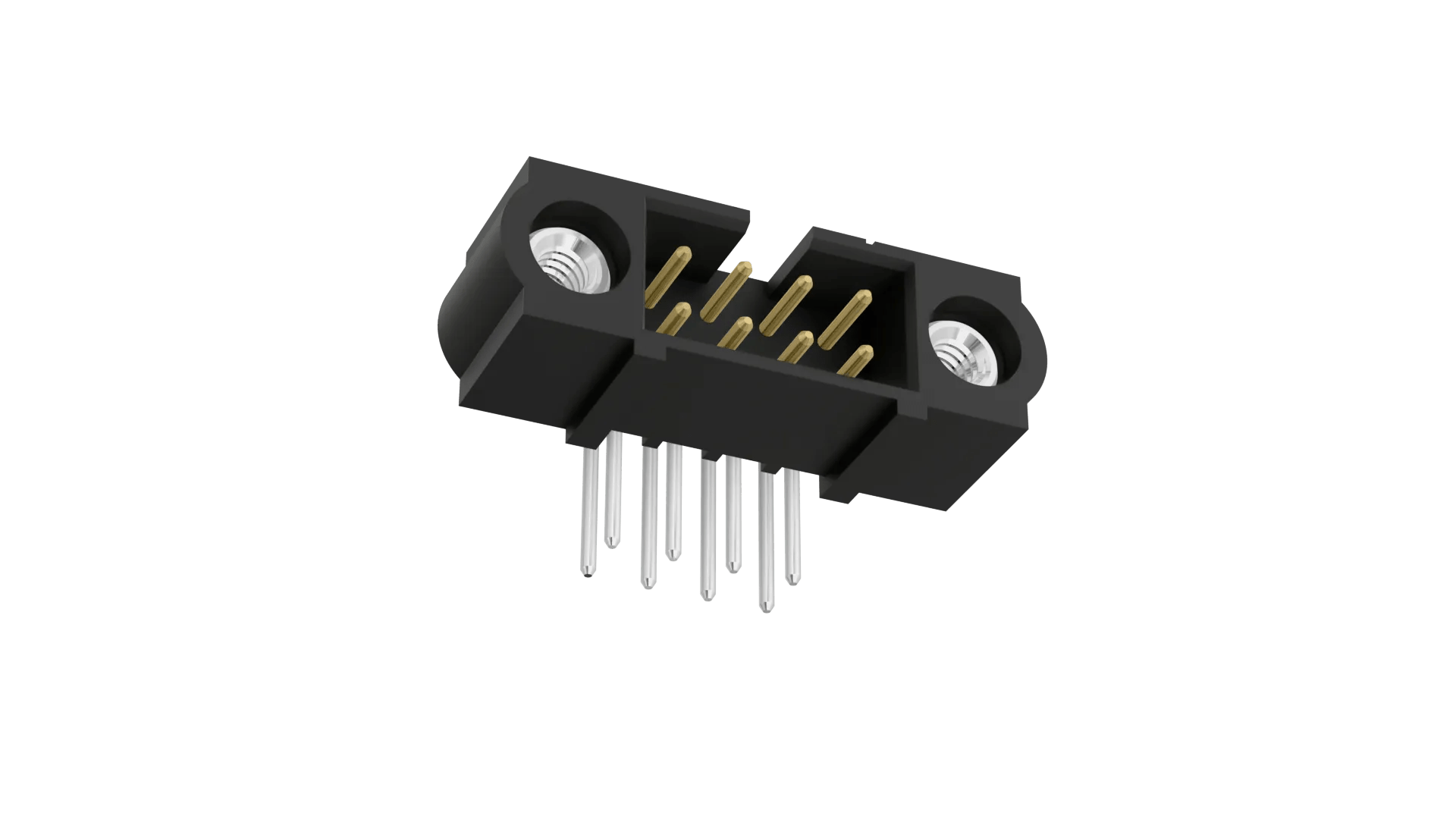

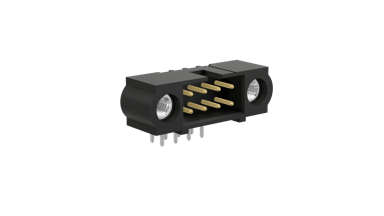

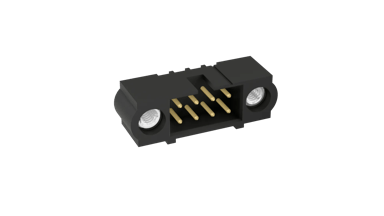

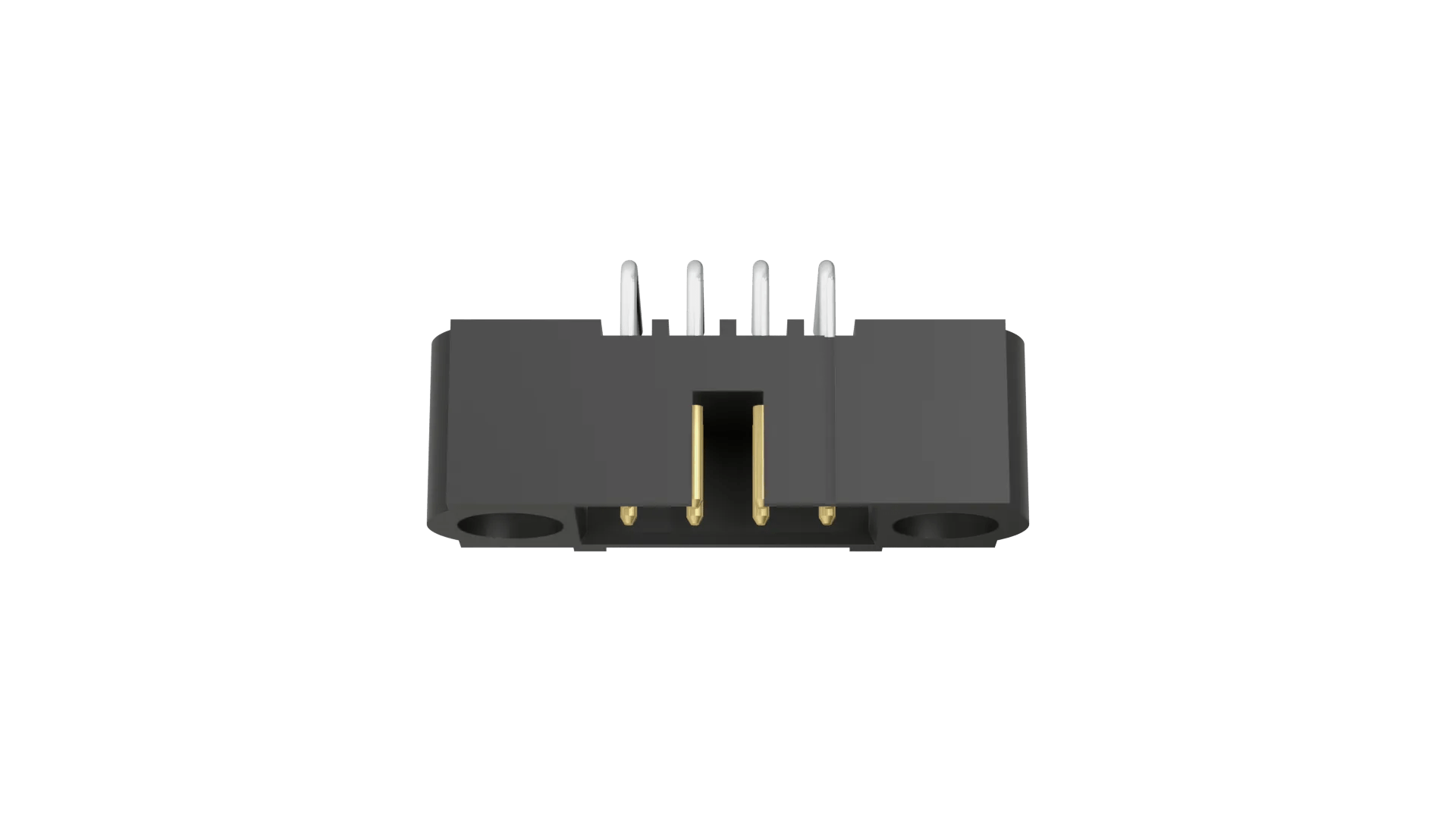

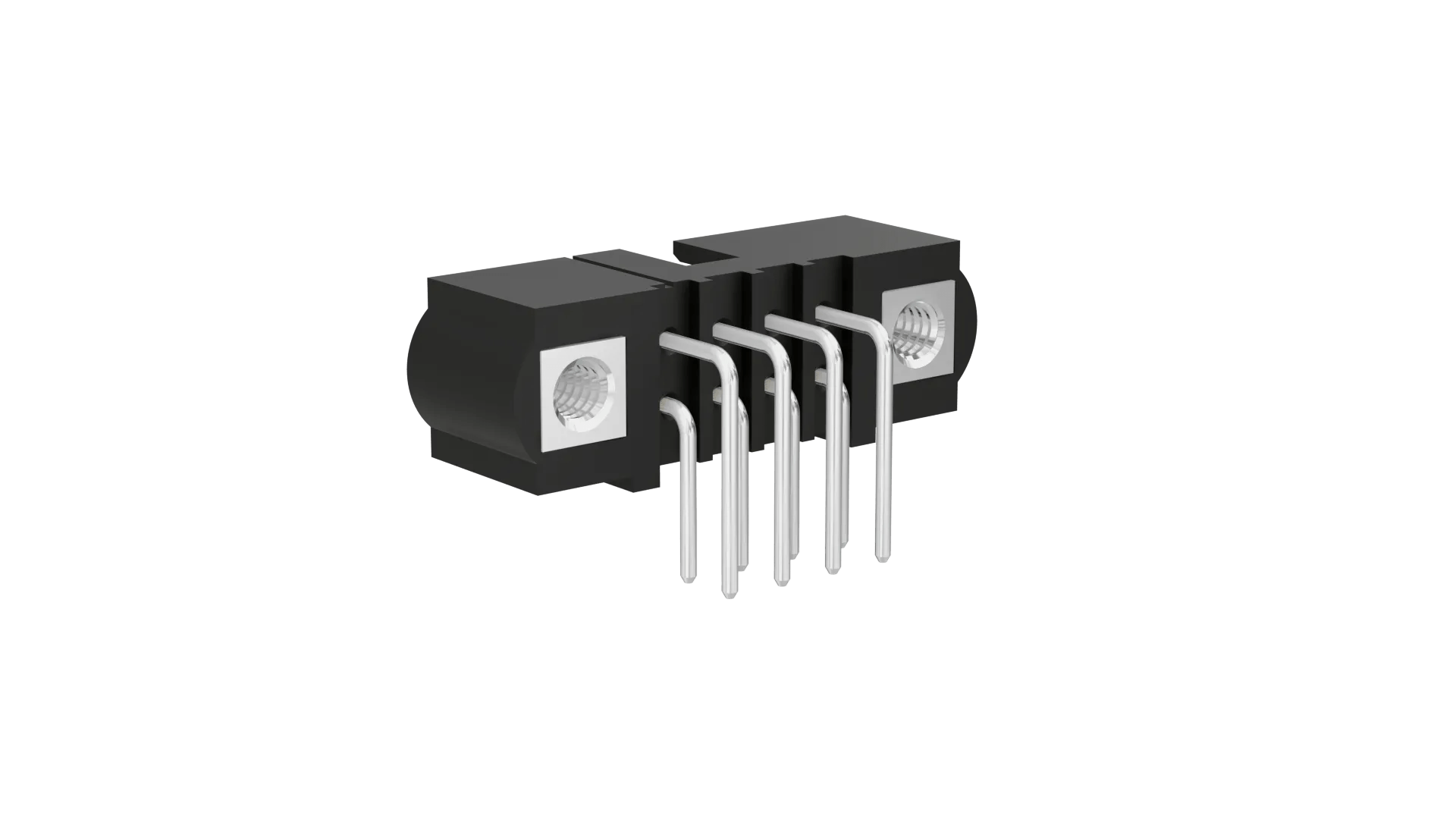

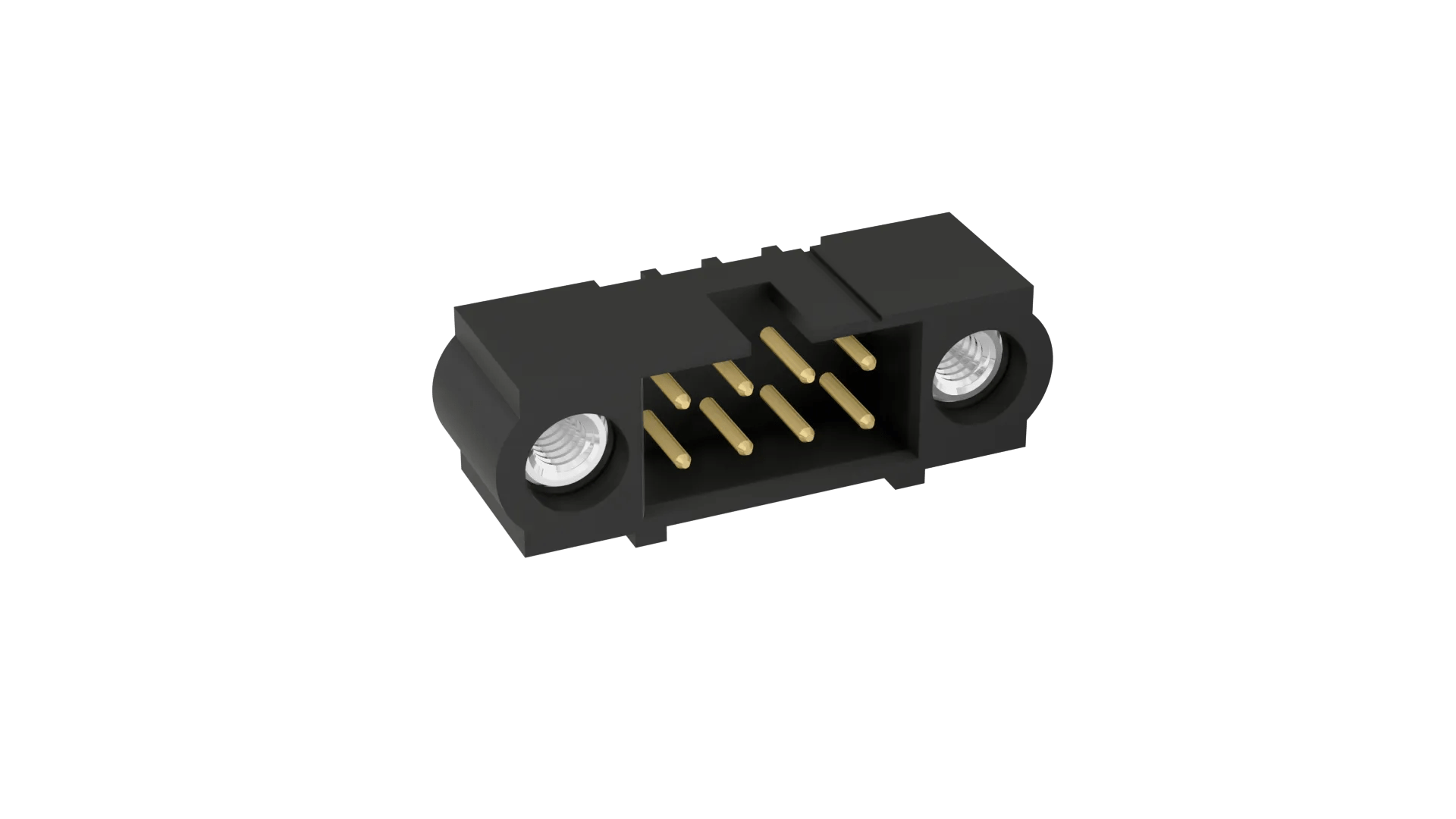

Double Row, 3mm PC Tail connector with jackscrews (internal only) - 8 contacts (4+4).
Gold finish on contact area, Tin finish on termination.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Fixing
Mating Pin Size:
Ø0.5mm
Number of Rows:
2
Connector Orientation:
Horizontal
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
8
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
Dependent on mating contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
0.995g
Dimensions:
18.00 x 8.25 x 9.00
Thread Size:
M2
PC Tail Length:
3.00mm
Height of Connector above PCB:
6.00mm
