4.00mm Pitch High-Reliability Connector - Datamate Power

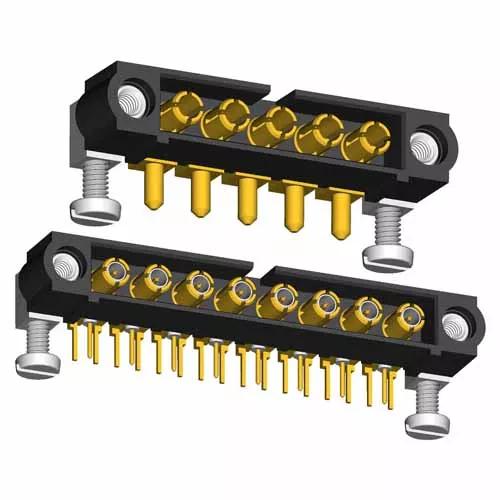

Jackscrews + 5mm board mount (with slotted bolts), 3 x power contacts assembled for horizontal PCB connection. For spare board mount bolts, order M80-2270000B.
3.5mm length PC Tail. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)
Number of Rows:
1
Connector Orientation:
Horizontal
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
3
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
20A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
3.257g
Dimensions:
22.00 x 8.60 x 9.50
Thread Size:
M2
PC Tail Length:
3.50mm
Height of Connector above PCB:
6.00mm
