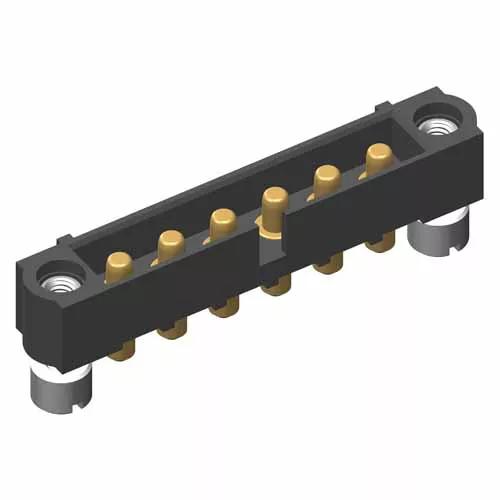

4.00mm Pitch High-Reliability Connector - Datamate Power
Jackscrews + 3.5mm board mount (with slotted nuts), 6 x high power contacts assembled for vertical PCB connection. For spare board mount nuts, order M80-2130000B.
Rated to 40A nominal, 3.5mm length PC Tail. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Fixing with Board/Front Panel Mount
Number of Rows:
1
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
6
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
40A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
3.202g
Dimensions:
34.00 x 6.00 x 9.05
Thread Size:
M2
PC Tail Length:
3.50mm
Height of Connector above PCB:
5.55mm
Downloads
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Datasheet - Datamate Mix-Tek range (HRi)
Technical Drawing / Datasheet - M80-5000000M2-XX-XXX-00-000.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate power and coax contacts
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
RoHS - M80-5000000M2-06-PM1-00-000
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical
