2.00mm Pitch High-Reliability Connector - Datamate J-Tek

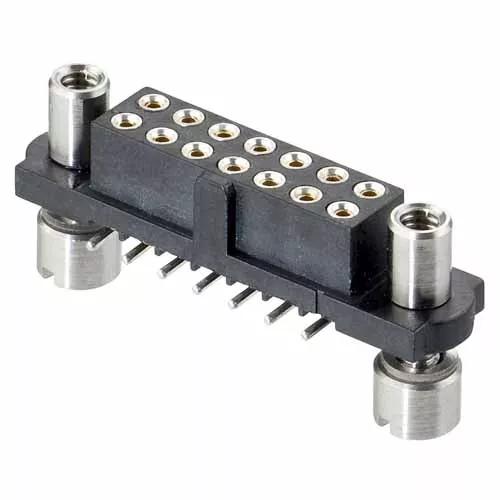

Double Row, Surface Mount connector with Reverse fix + 3.5mm board mount (slotted nuts) jackscrews - 14 contacts (7+7).
Gold finish on contact area, Tin finish on termination. Slotted nuts provided for assembly to panel mount stud. For spare board mount nuts, order M80-2130000B.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Internal Thread Fixing with Board/Front Panel Mount
Mating Pin Size:
Ø0.5mm
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
14
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
3.3A max individual contact, 3A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
2.177g
Dimensions:
24.00 x 7.50 x 9.20
Thread Size:
M2
Height of Connector above PCB:
6.00mm
Downloads
Catalog page - Datamate J-Tek Mating Profiles
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Datasheet - Datamate range: signal connectors (HRi)
Technical Drawing / Datasheet - M80-4S1XXXXF8.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
Plating thickness on Datamate signal contacts & T-Contact
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M80-4S1XXXXF8 series
RoHS - M80-4S11442F8
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007) + USB2.0
Test Report HT025 - Datamate L-Tek Environmental - Detailed Vibration + Shock and Bump
