2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

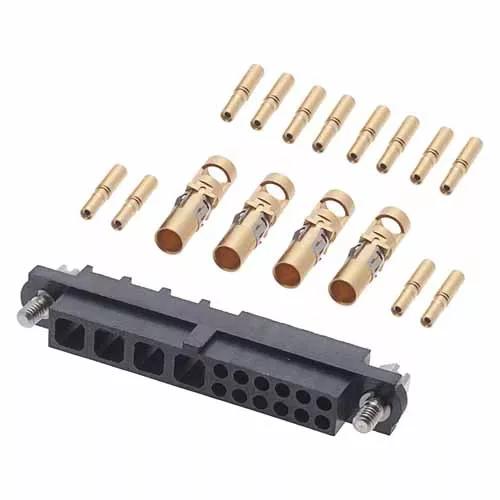

Complete kit: housing (with hexagonal slotted jackscrews) with 12 x signal and 4 x power contacts supplied loose.
Power solder contact suitable for 12 AWG, Small Bore signal contact suitable for 24 to 28 AWG cable (Ø1.1mm max insulation). Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.
Checking stock availability...
Check Availability
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Floating Jackscrew with Hex Slotted Head (Standard Gender)
Mating Pin Size:
Ø0.5mm (signal)
Number of Rows:
Mixed
Connector Orientation:
Straight
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
4
Number of Signal Contacts:
12
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Brass (power)
Flammability Rating:
UL94V-0
Packaging Style:
Single Pack
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm/4.00mm (0.079"/0.157")
Weight:
3.855g
Dimensions:
38.00 x 5.50 x 13.00
Thread Size:
M2
Wire Size:
24-28 AWG + 12 AWG
