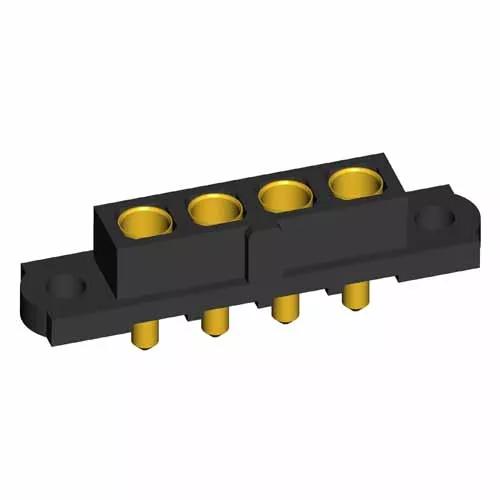

4.00mm Pitch High-Reliability Connector - Datamate Power
No jackscrews, 4 x power contacts assembled for vertical PCB connection.
3.5mm length PC Tail. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.
Checking stock availability...
Check Availability
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Entry Style:
Top Entry
Style of Jackscrews:
None fitted
Number of Rows:
1
Connector Orientation:
Vertical
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
4
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
20A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Brass
Flammability Rating:
UL94V-0
Packaging Style:
Single Pack
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
1.146g
Dimensions:
26.00 x 5.50 x 8.68
PC Tail Length:
3.50mm
Height of Connector above PCB:
5.18mm
