M80-302

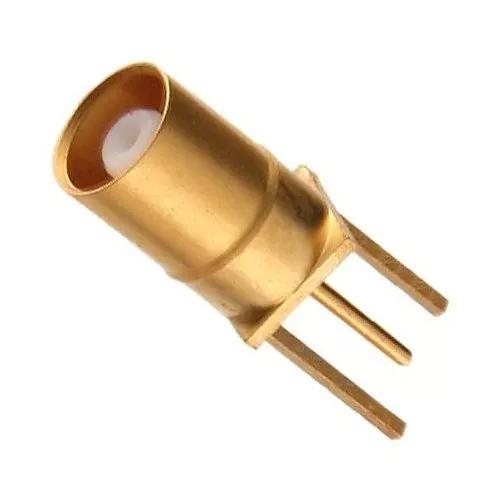

Datamate Mix-Tek Female Vertical Throughboard Coax Contact, 4.5mm tail

4.00mm Pitch High-Reliability Connector - Datamate Coax

  • Vertical orientation with 4.5mm PC Tail.

  • Specified as 302 in a Mix-Tek connector part number.

  • Gold finish on contact areas and termination.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • Entry Style:

    Top Entry

  • Connector Orientation:

    Vertical

  • Country of Origin:

    GB

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    0.5A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    PTFE

  • Base Material of Contact:

    Beryllium Copper inner contact, Brass outer contact

  • Packaging Style:

    Bulk/Loose

  • Finish / Plating on Termination:

    Gold

  • Housing Colour:

    White

Dimensions

  • Contact Pitch:

    4.00mm (0.157")

  • Weight:

    0.137g

  • Dimensions:

    9.40 x 3.00 square

  • PC Tail Length:

    4.50mm

  • Height of Connector above PCB:

    4.90mm

Downloads

    Product Information

  • Product Training Module - Guide to the Datamate Coax range

  • Product Datasheet - Datamate Mix-Tek range (HRi)

  • Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability

    • Technical Documentation

  • Technical Drawing / Datasheet - M80-301-302.pdf

  • Plating thickness on Datamate power and coax contacts

  • C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

    • Environmental Compliance

  • RoHS - M80-302

  • Material composition for M80-302 product

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

    • Test Reports

  • Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
