4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

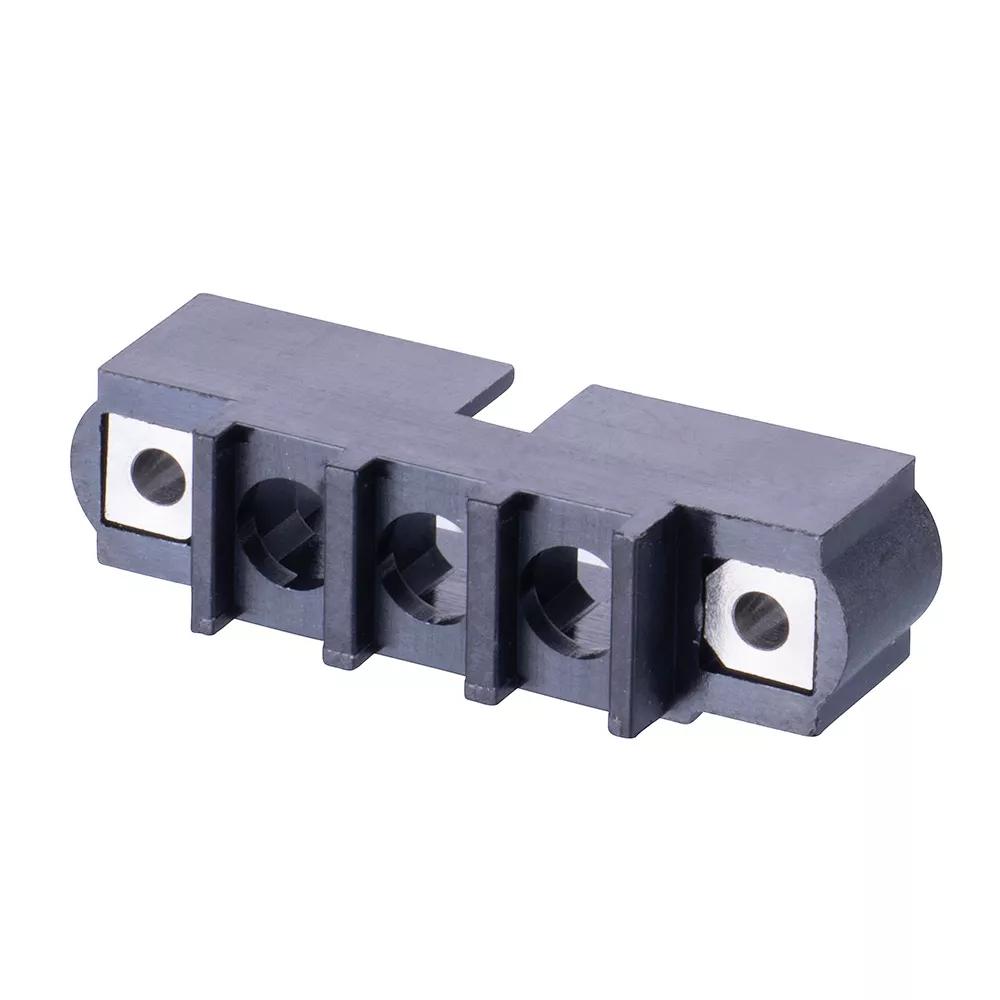

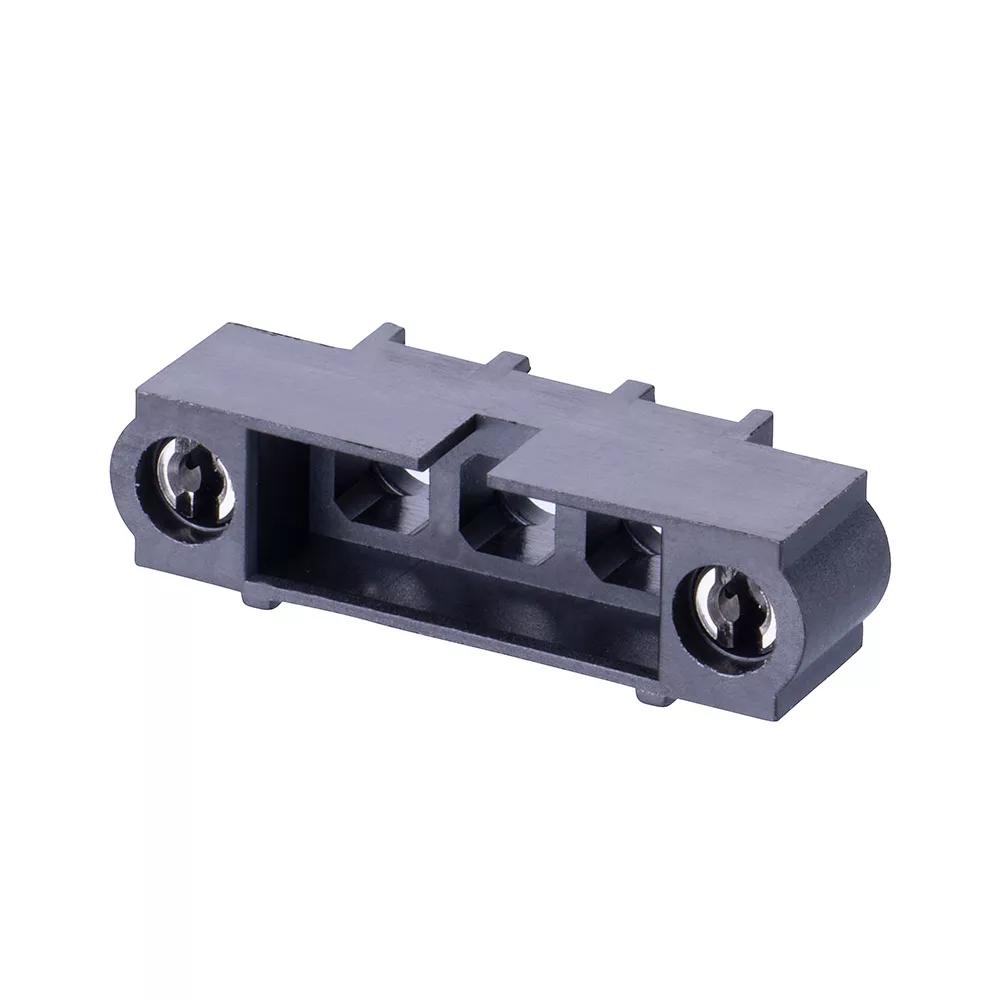

Single row polarized Male cable connector housing - 3 contact. Fitted with 101Lok bayonet receptacles for fast, simple mating and release.
Use with any of the male Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under "Related Products" further down this page.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
101Lok Receptacle Fixing
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
3
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
Dependent on assembled contacts
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
PPS
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
1.045g
Dimensions:
22.00 x 6.00 x 7.85
Downloads
Catalog page - Datamate Mix-Tek Pin Numbering + Mating Profiles
Product Training Module - Datamate Mix-Tek Housings
Product Training Module - Overview Guide to the Datamate range + 2 & 4mm pitch High-Reliability
Product Training Module - Guide to Datamate Latches (L-Tek) + Jackscrews (J-Tek) and 101Lok
Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-52 - Datamate Mix-Tek Assembly and Contact Removal Instruction Sheet
Distributor part numbers for suitable cables for Datamate + Gecko + M300 & Kona
Product Datasheet - Datamate Mix-Tek range (HRi)
Technical Drawing / Datasheet - M80-273MCXX-XX-XX.pdf
C005XX Component Specification - Datamate M80 and M83 Series (2.00mm + 4.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M80-273MCXX-00-00 series
RoHS - M80-273MC03-00-00
Test Report HT001 - Datamate Mechanical Endurance - number of cycles + up to 10 +000
Test Report HT002 - Datamate Voltage Proof + Voltage Flashover + and Insulation Resistance
Test Report HT004 - Datamate J-Tek Environmental - Vibration + Shock + Bump + Acceleration and other tests
Test Report HT015 - Datamate Environmental (Vibration + Shock + Bump) - J-Tek and 101Lok
Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging
Test Report HT020 - Datamate Mix-Tek Special Contacts - Environmental + Mechanical and Electrical
Test Report HT035 - Datamate Mix-Tek Power Connectors - Mechanical and Electrical
Test Report HT040 - Datamate High Power Contacts - Mechanical and Electrical
Test Report HT052 - Datamate Coax M80-307 & M80-317 contacts - RF Test
Test Report HT078 - Datamate Mix-Tek 20A Power testing
