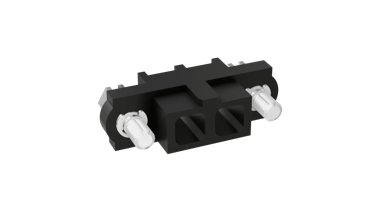

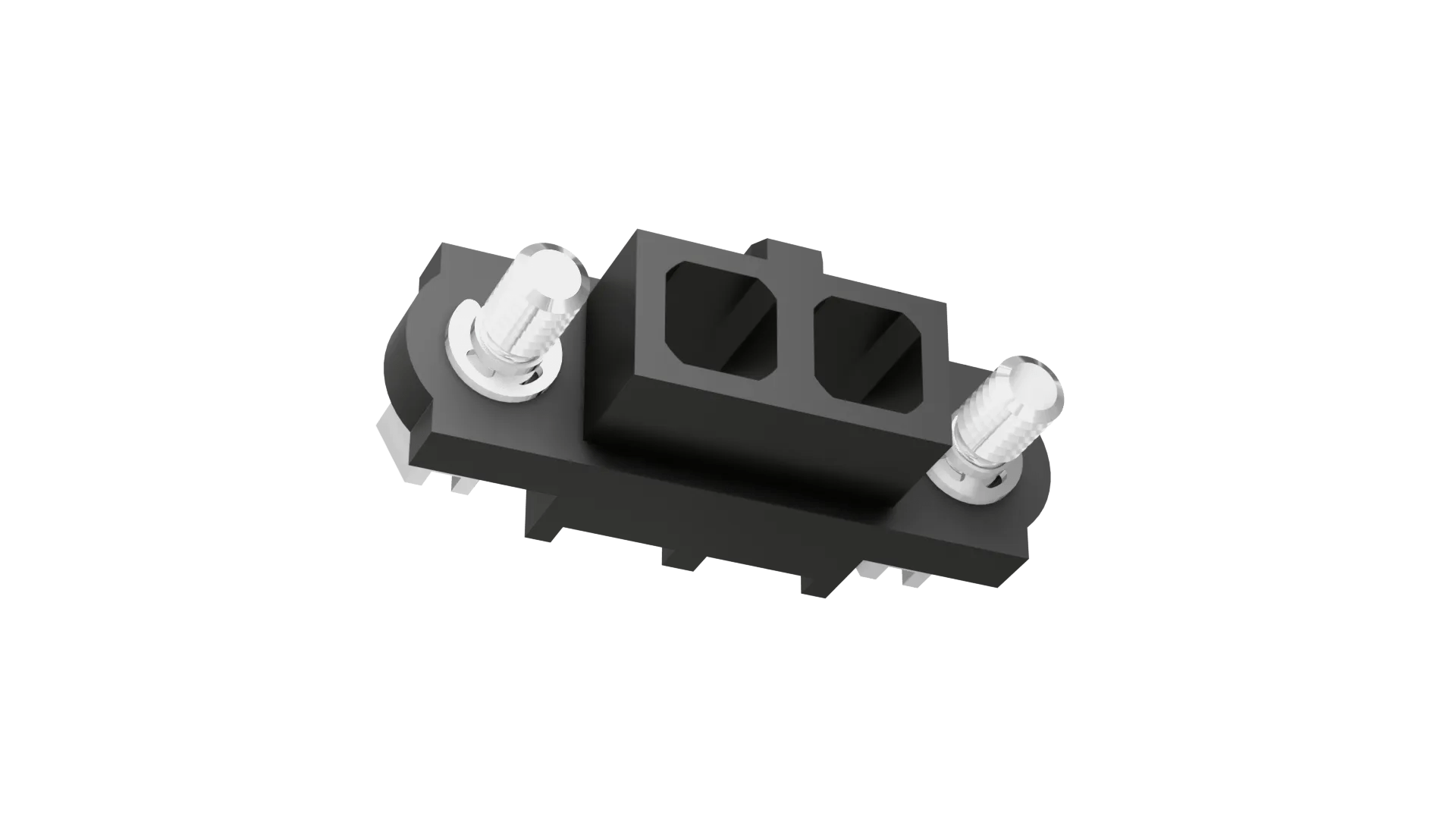

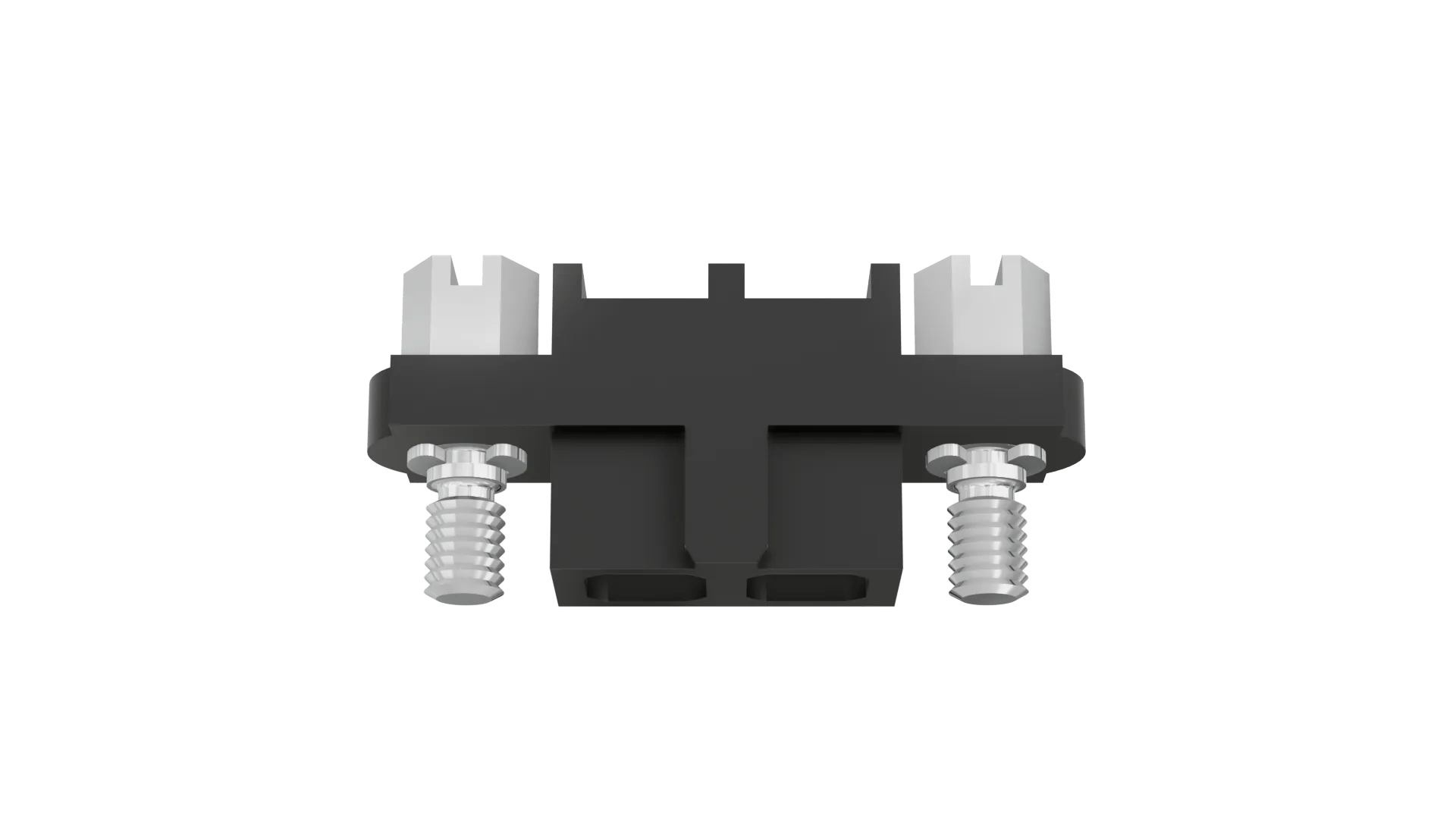

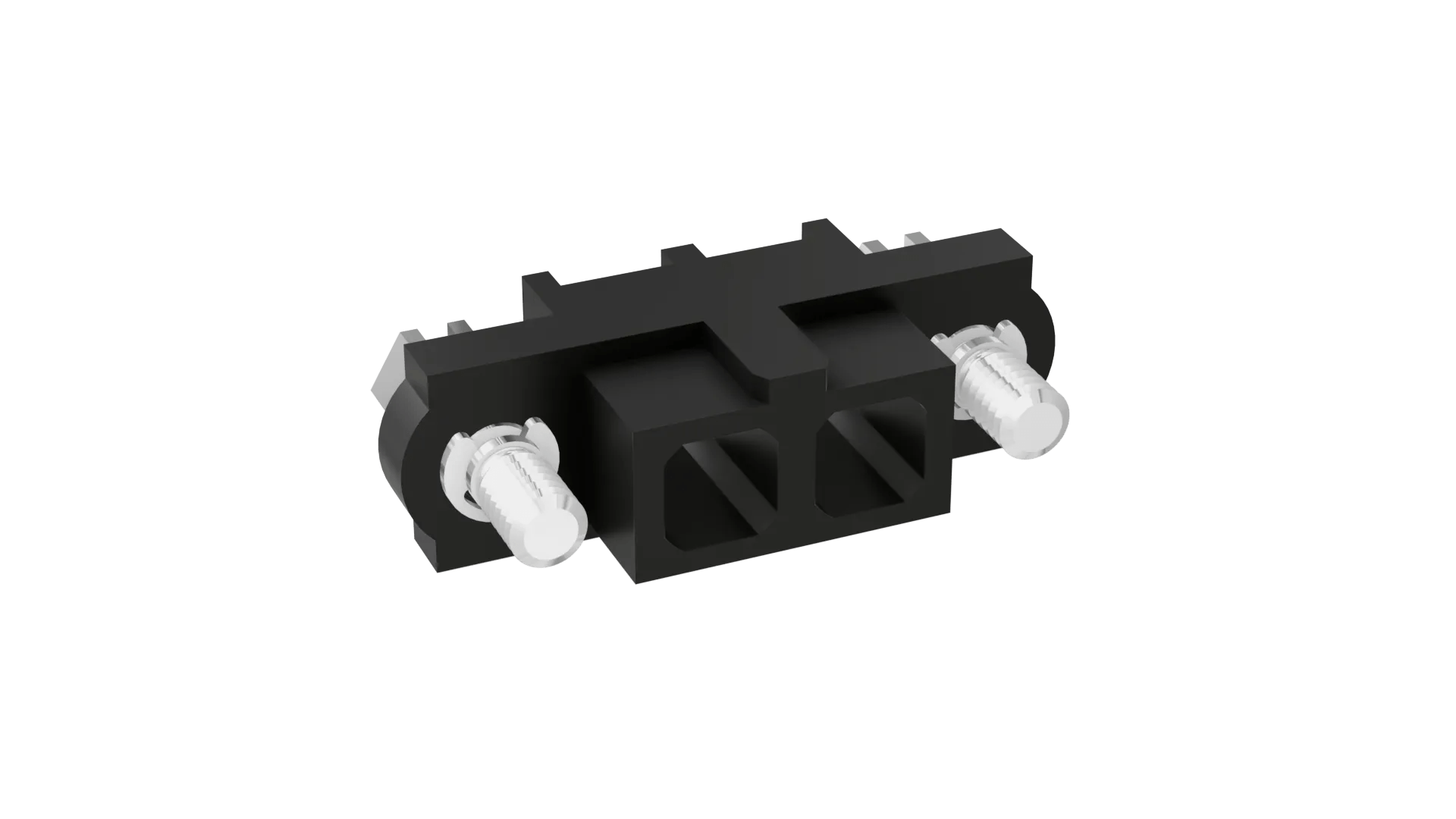

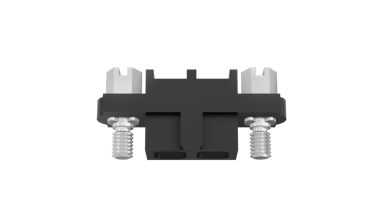

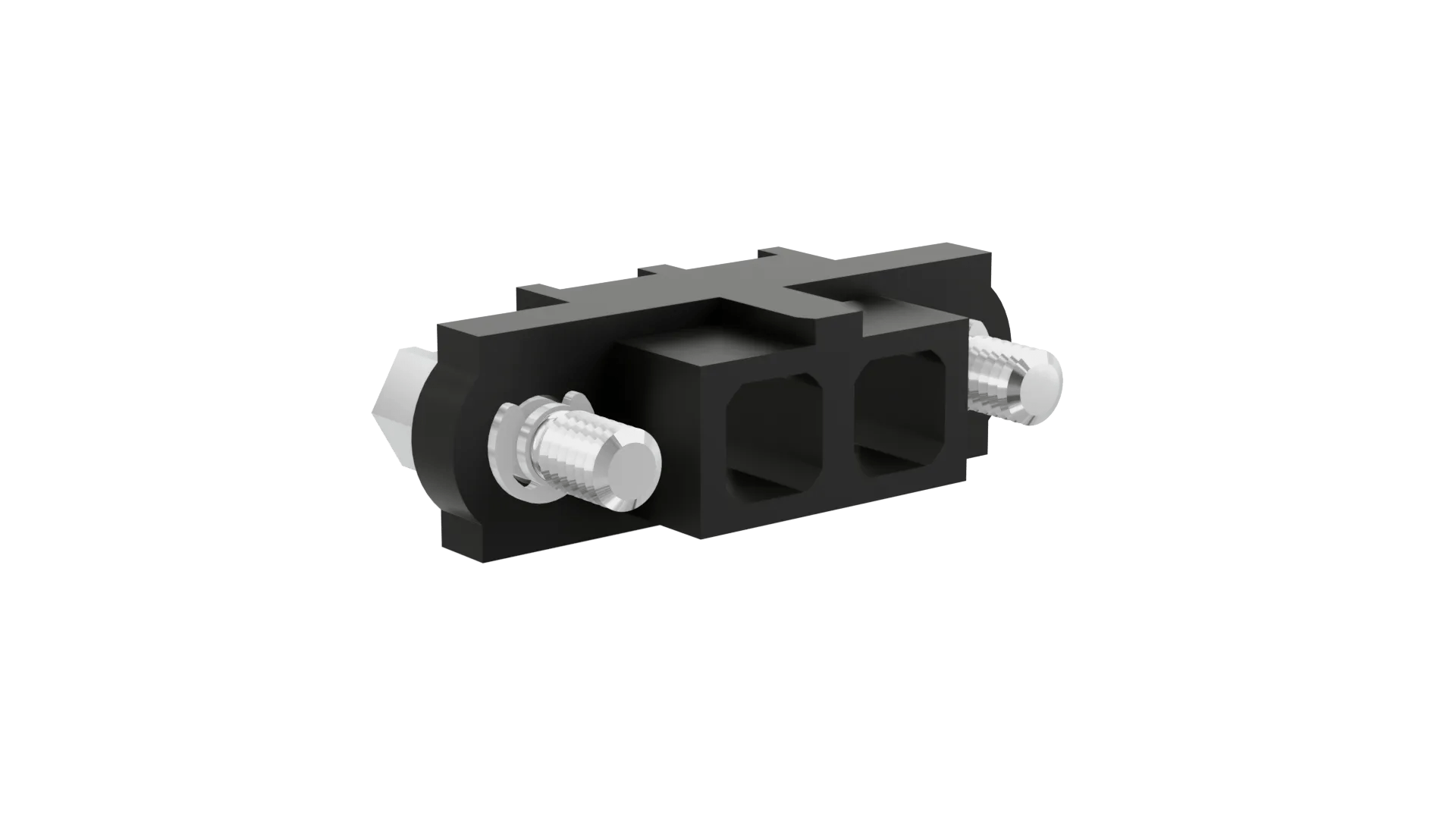

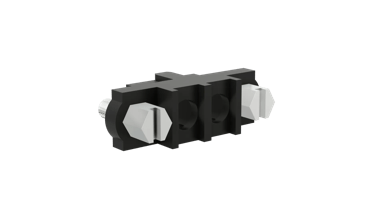

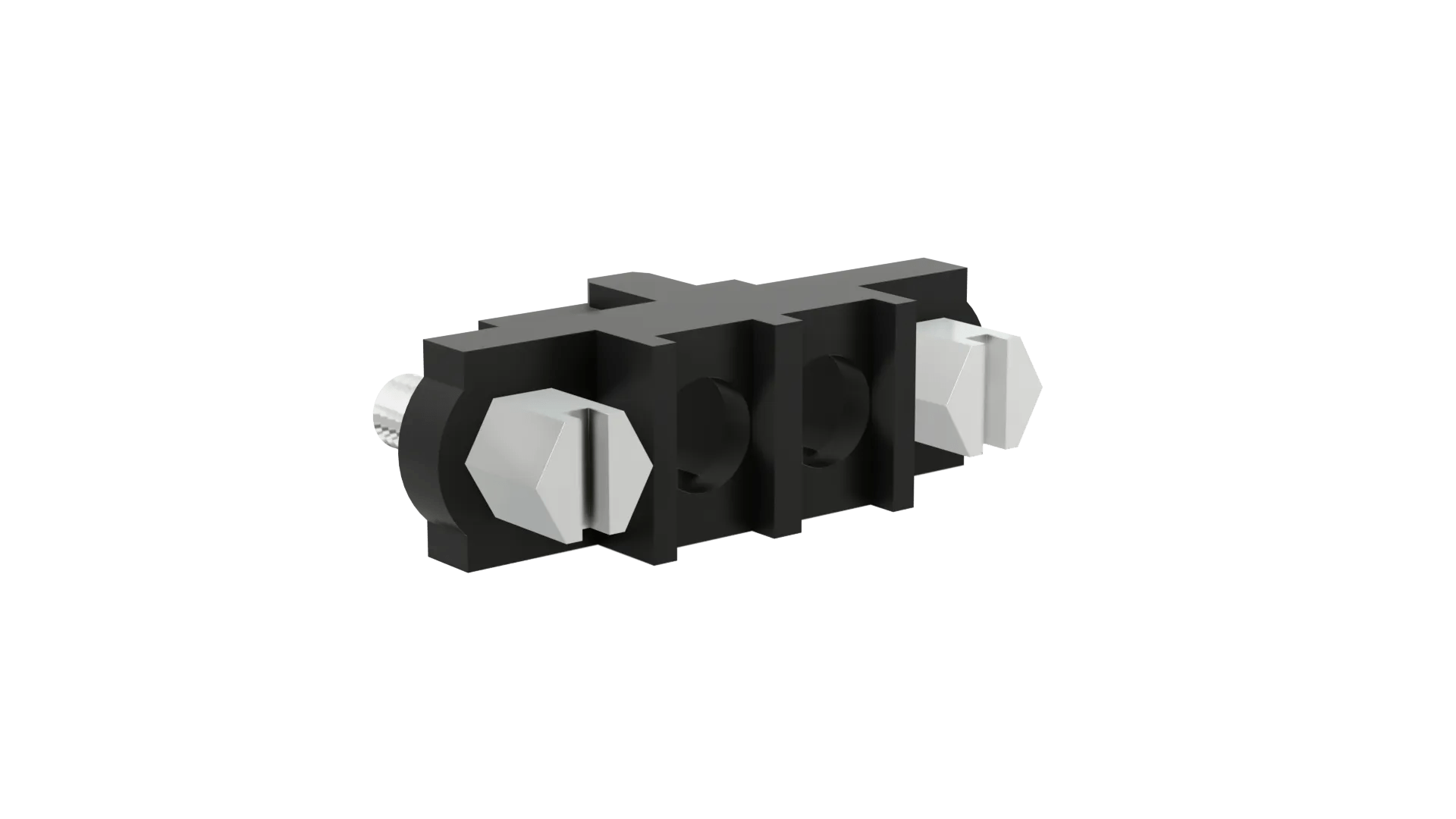

Single row polarized Female cable connector housing - 2 contact. Fitted with floating jackscrews, Hexagonal slotted head.
Use with any of the female Datamate Mix-Tek power or coax contacts (sold separately): see the complete list of compatible contacts under "Related Products" further down this page.
For complete pin numbering or pin out information, see the Component Specification C005XX.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Slotted Head
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
GB
Side Stackable:
No
Number of Power/Coax Contacts:
2
Operating Temperature:
-55°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
Dependent on assembled contacts
Polarised:
Yes
Cuttable:
No
Materials
Housing Material:
PPS
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Black
Dimensions
Contact Pitch:
4.00mm (0.157")
Weight:
0.965g
Dimensions:
18.00 x 5.50 x 9.50
Thread Size:
M2
