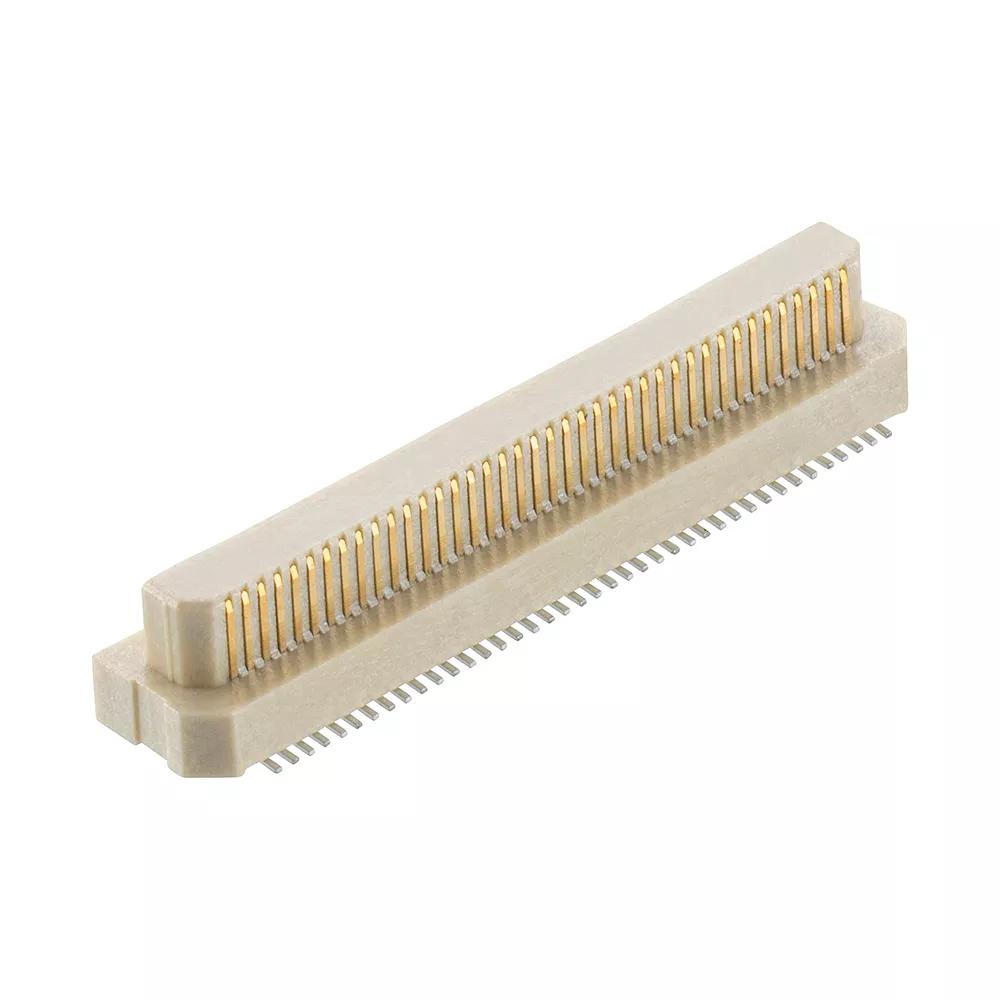

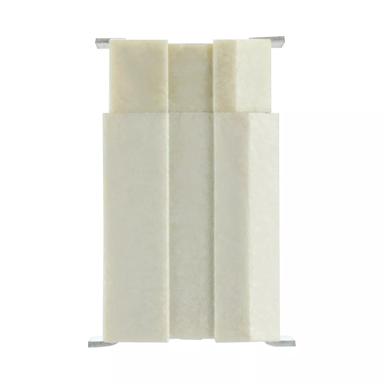

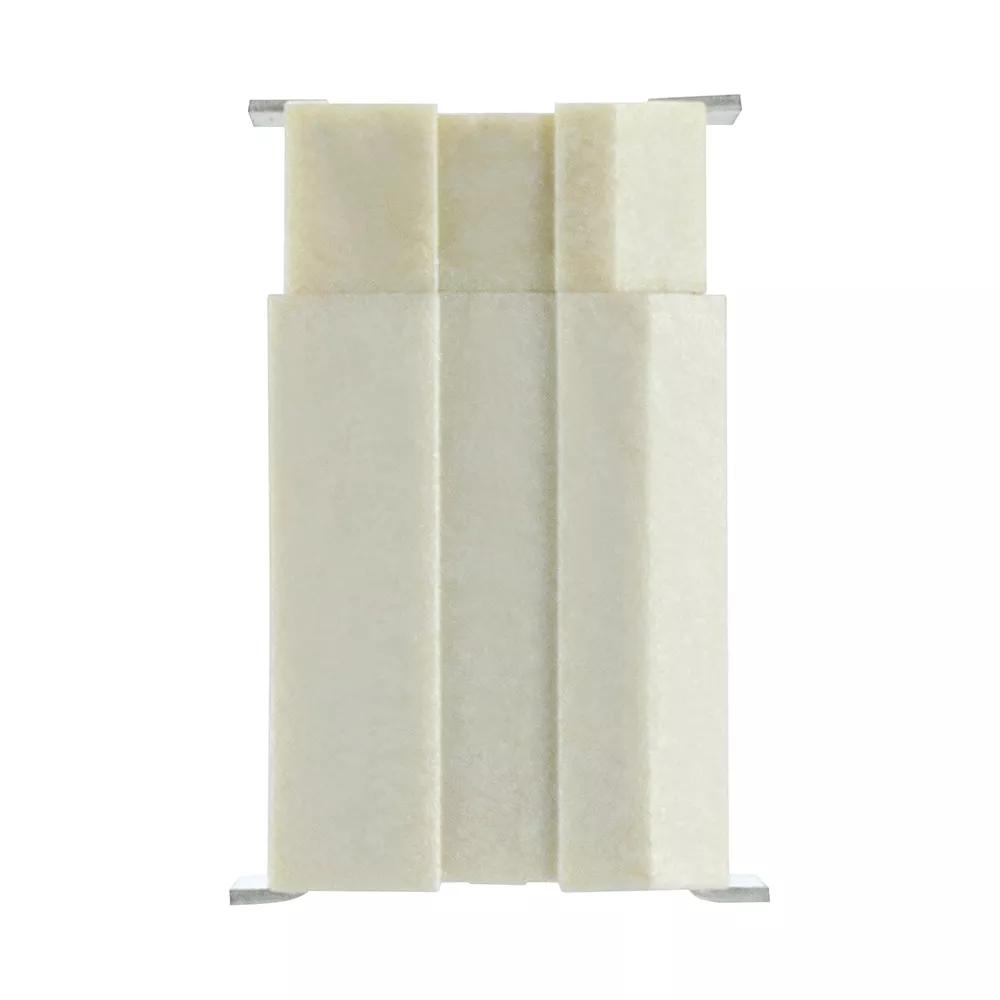

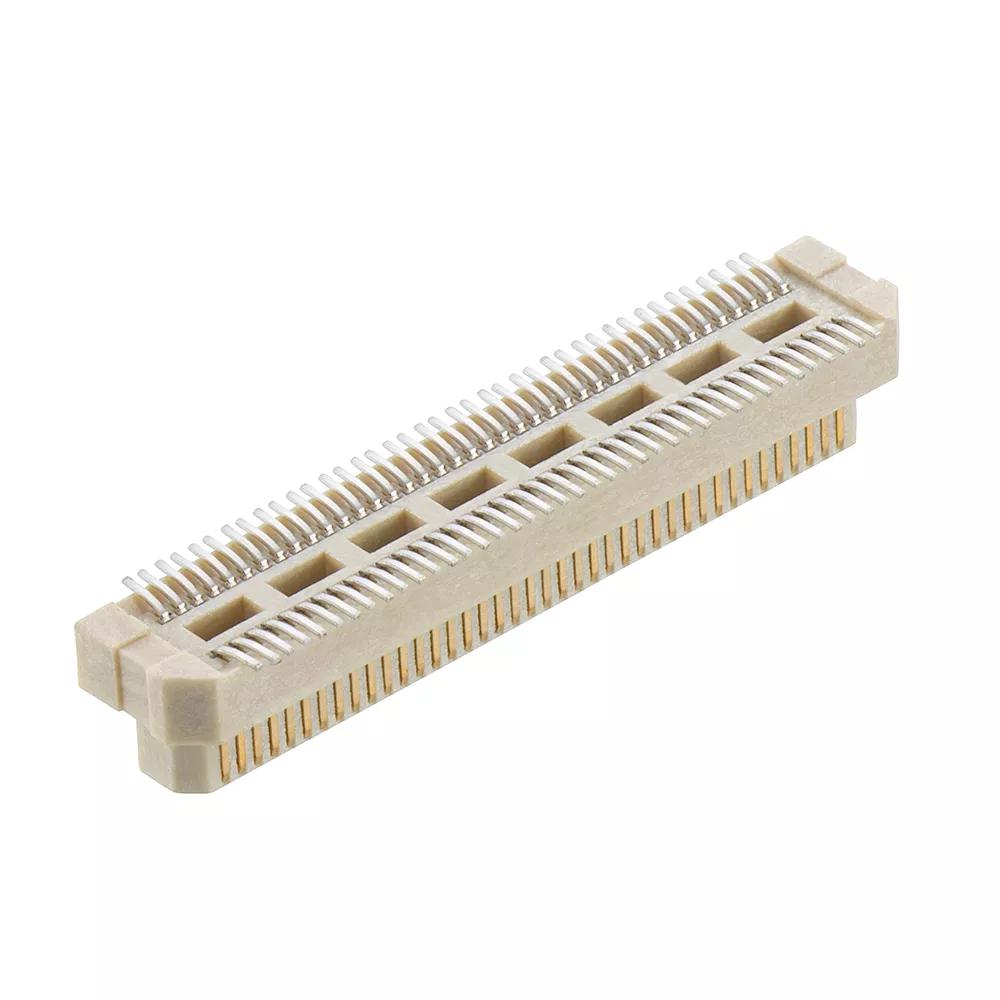

0.50mm (0.0197") Pitch PCB Connector - Archer .5
Double Row vertical board-to-board, surface mount plug connector - 80 contacts (40+40).
High-speed connection with a data rate up to 8GHz, 16Gb/s.
Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel (pick & place caps not required).
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
80
Operating Temperature:
-55°C to +85°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
0.5A per contact
Soldering Data:
Max Solder Temperature: 260°C for 5 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Natural
Dimensions
Contact Pitch:
0.50mm (0.0197")
Weight:
0.52g
Dimensions:
23.20 x 5.00 x 4.30
Height of Connector above PCB:
4.30mm
Downloads
Product Training Module - Overview of the Archer .8 and Archer .5 ranges
Product Datasheet - ARCHER: Archer .5 and Archer .8 range (BBi)
Technical Drawing / Datasheet - M58-350R.pdf
C054XX Component Specification - Archer .5 M58 Series (0.50mm pitch PCB Connectors)
Outgassing data for Harwin products (plastics)
RoHS - M58-3500842R
Material composition for M58-350 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
