0.80mm (0.031") Pitch PCB Connector - Archer .8

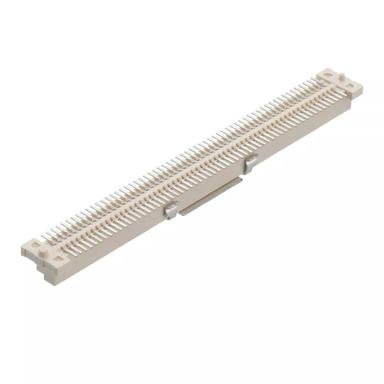

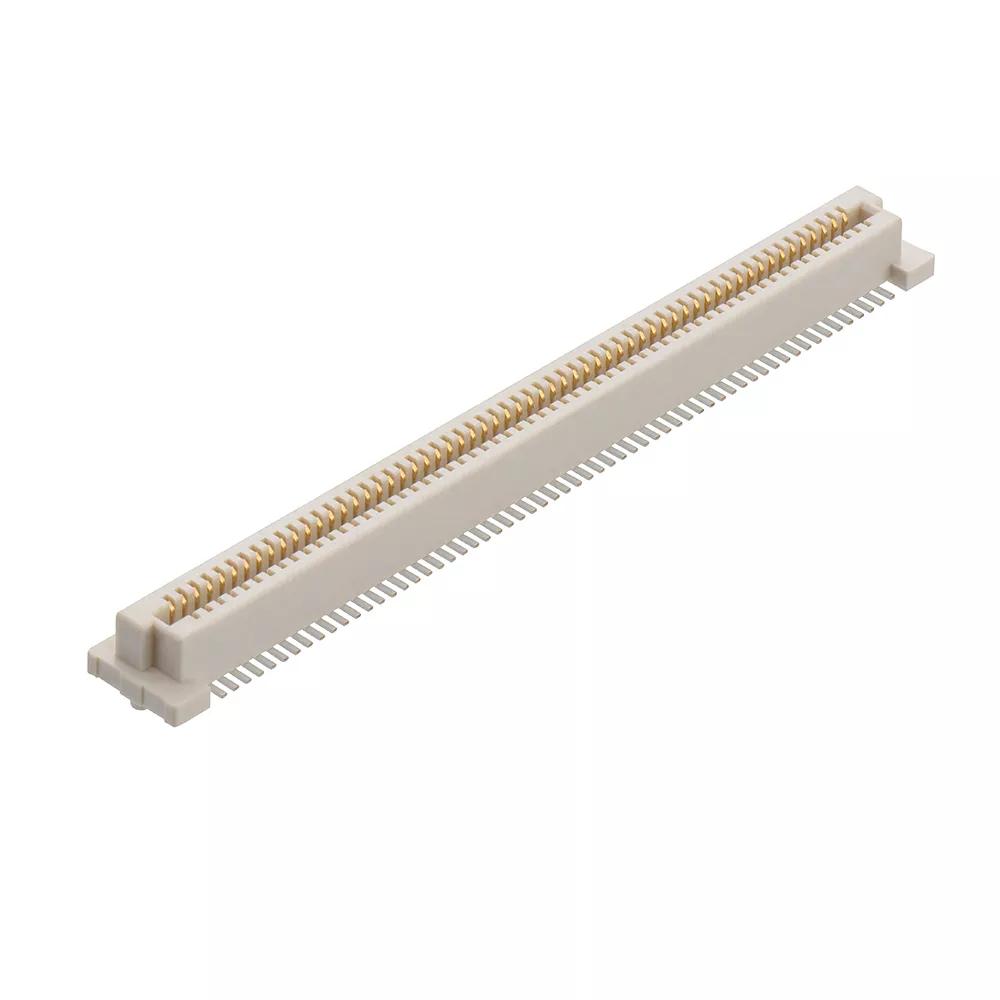

Double Row vertical board-to-board, surface mount receptacle connector with location pegs - 120 contacts (60+60).
High-speed connection with a data rate up to 12GHz, 24Gb/s.

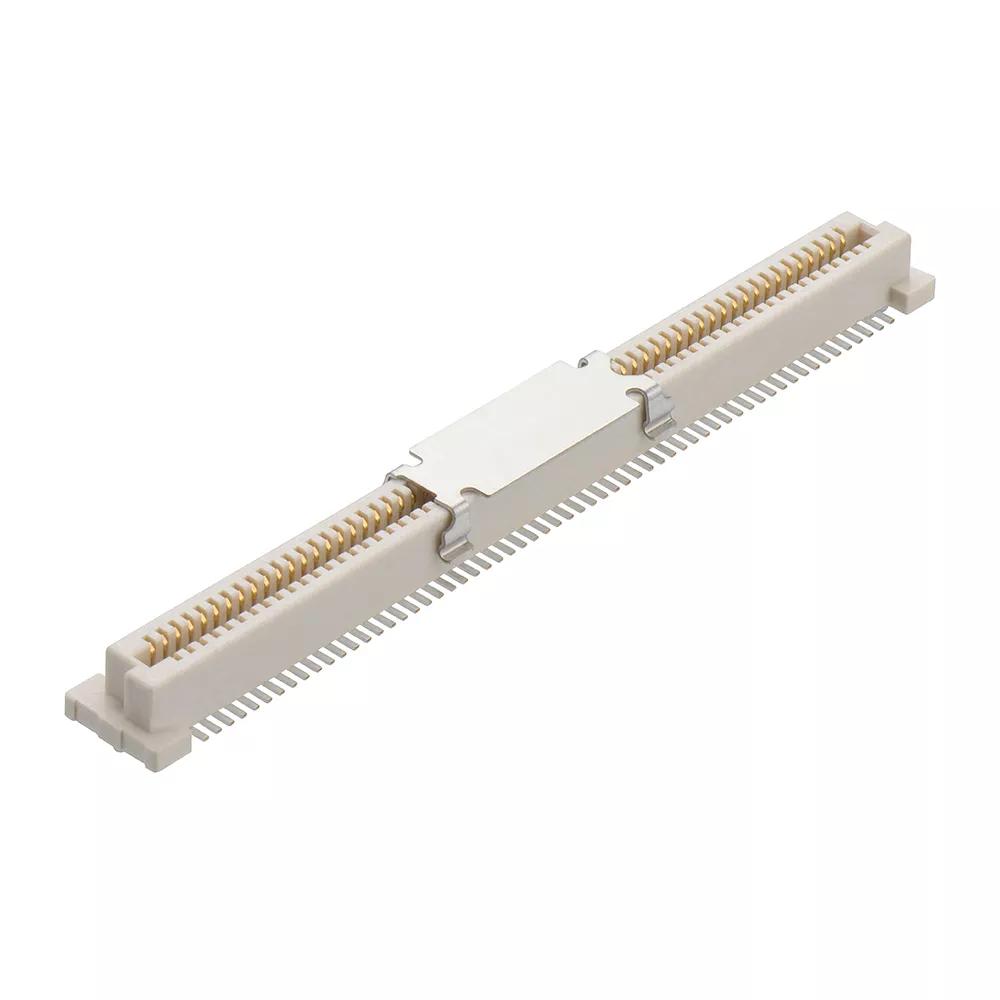

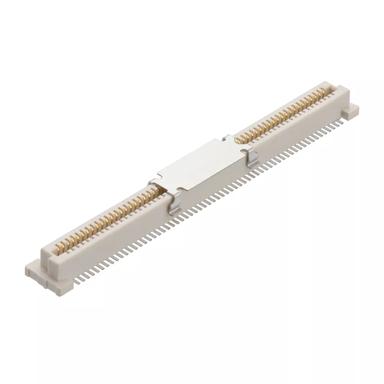

Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
120
Operating Temperature:
-40°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
0.5A per contact
Soldering Data:
Max Solder Temperature: 250°C for 5 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Natural
Dimensions
Contact Pitch:
0.80mm (0.031")
Weight:
1.325g
Dimensions:
53.75 x 6.00 x 4.42
Height of Connector above PCB:
3.70mm
Downloads
Product Training Module - Overview of the Archer .8 and Archer .5 ranges
Product Datasheet - ARCHER: Archer .5 and Archer .8 range (BBi)
Technical Drawing / Datasheet - M58-280R.pdf
C053XX Component Specification - Archer .8 M58 Series (0.80mm pitch PCB Connectors)
Outgassing data for Harwin products (plastics)
RoHS - M58-2801242R
Material composition for M58-280 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
