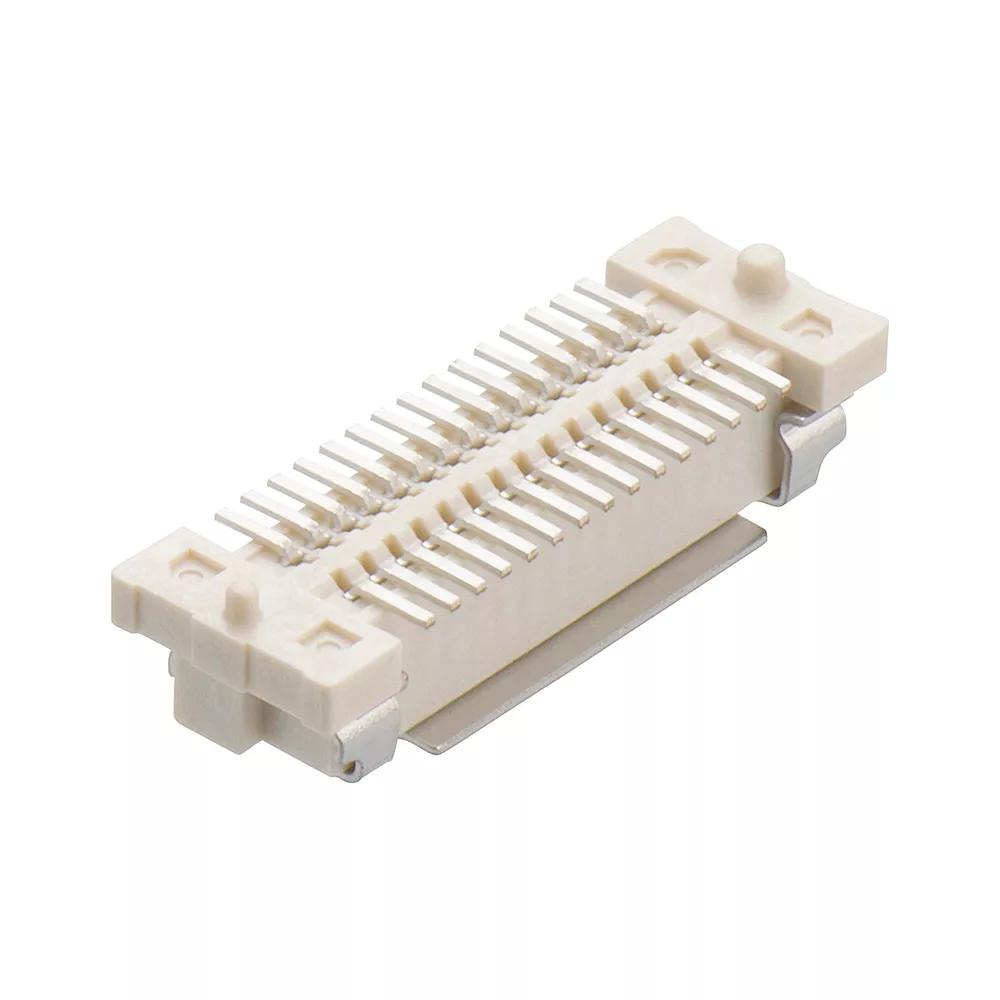

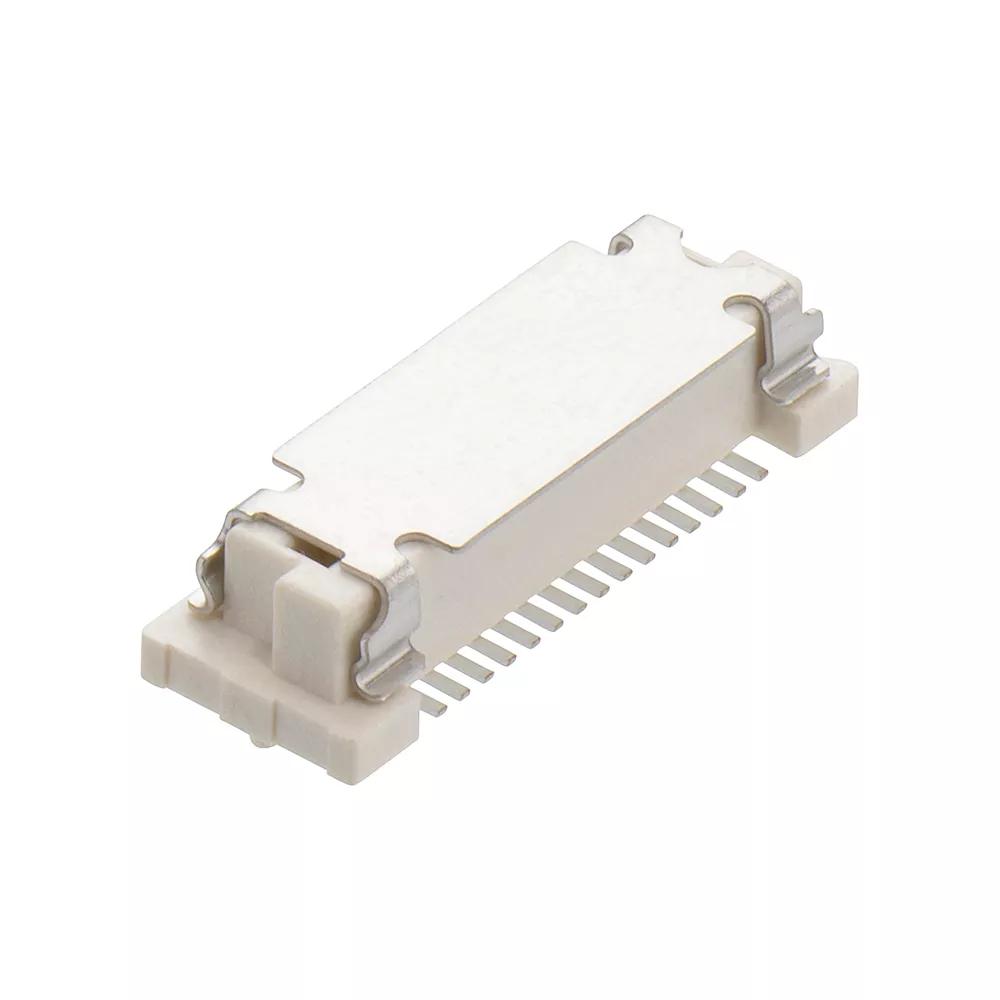

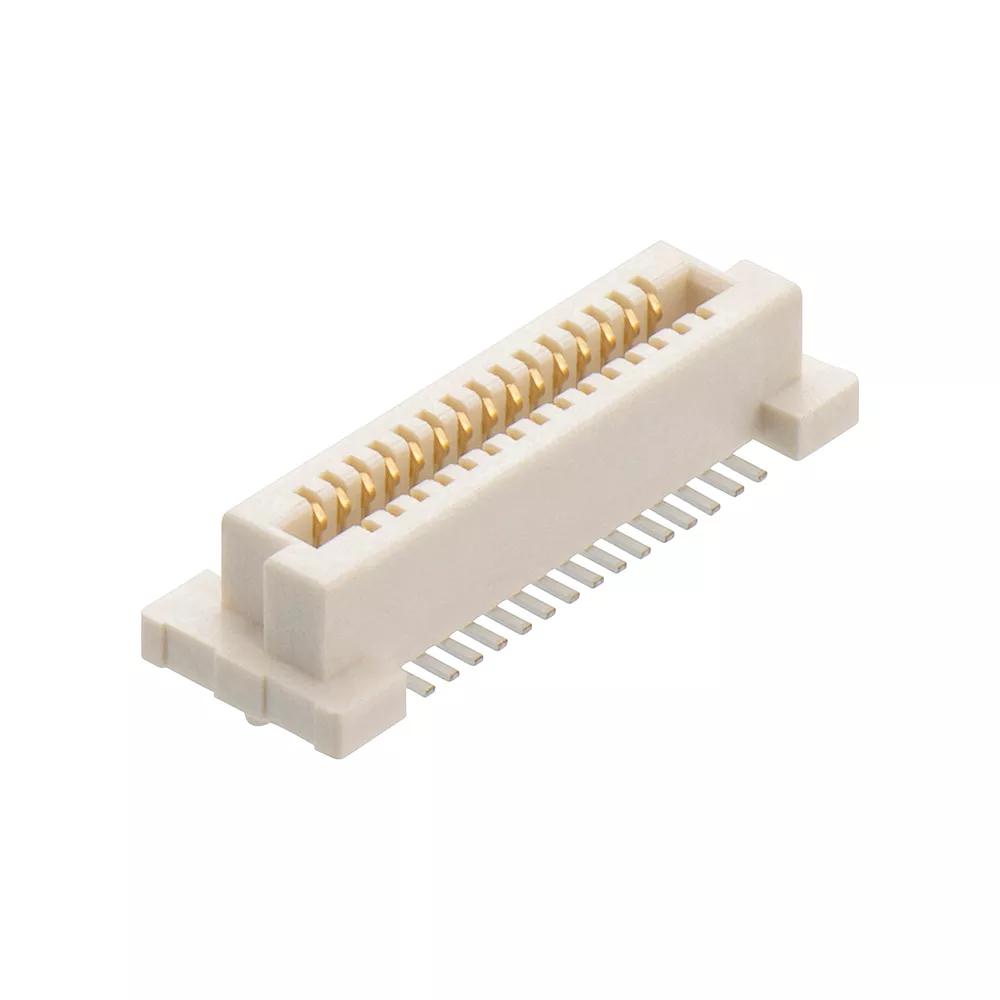

Double Row vertical board-to-board, surface mount receptacle connector with location pegs - 30 contacts (15+15).
High-speed connection with a data rate up to 12GHz, 24Gb/s.
Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
30
Operating Temperature:
-40°C to +125°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
0.5A per contact
Soldering Data:
Max Solder Temperature: 250°C for 5 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Natural
Dimensions
Contact Pitch:
0.80mm (0.031")
Weight:
0.533g
Dimensions:
17.75 x 6.00 x 4.42
Height of Connector above PCB:
3.70mm
