1.27mm (0.05") Pitch PCB Connector - Kontrol

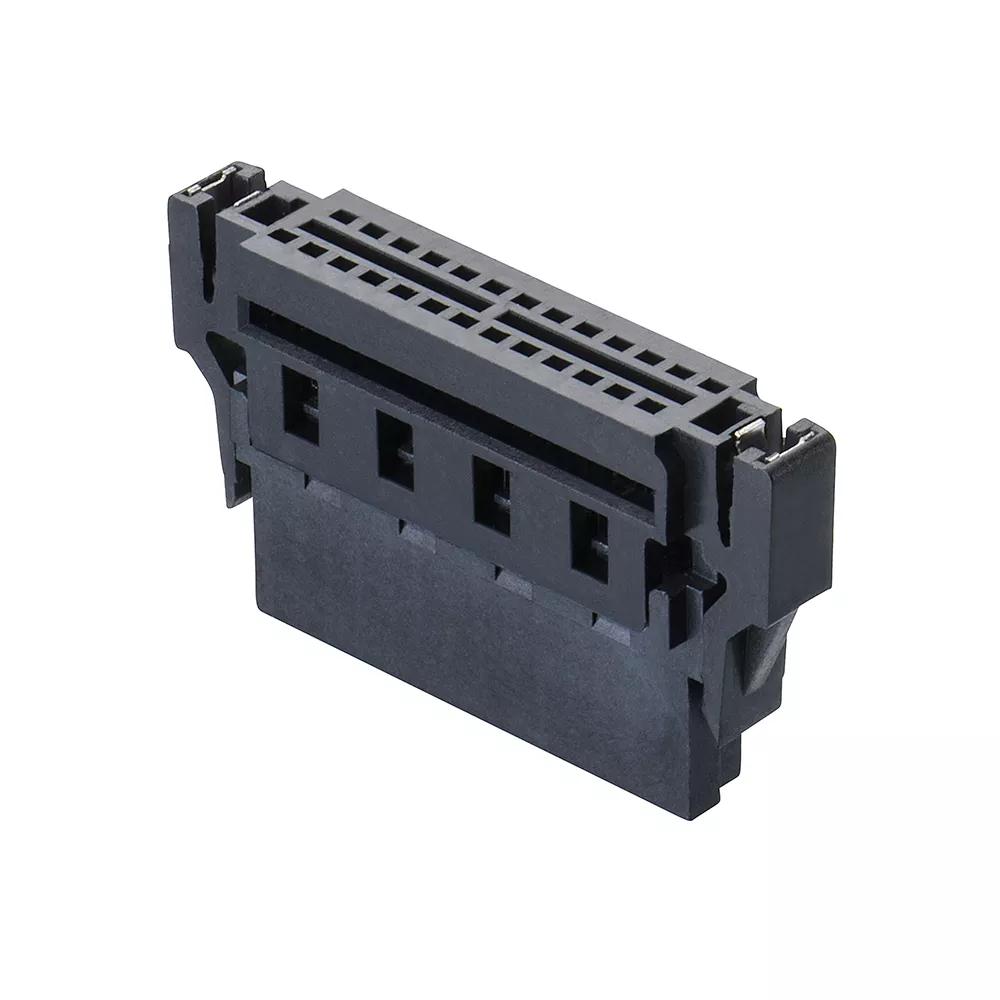

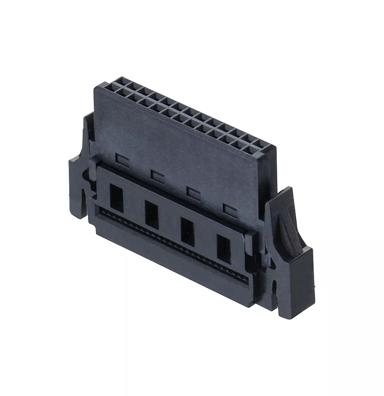

Double row female connector with IDC cable connection - 26 contacts (13+13). Latching features, polarized and shrouded. Gold finish on contact area, Tin finish on termination.
Suitable for 30 AWG ribbon cable, 0.635mm pitch, UL2678.
For complete pin numbering or pin out information, see Component Specification C047XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Latching Style:
Built-in Latches
Number of Rows:
2
Connector Orientation:
Angled
Side Stackable:
No
Number of Signal Contacts:
26
Operating Temperature:
-20°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
0.5A max per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
LCP (PA66 Latch Cover)
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tray
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
1.27mm (0.05")
Weight:
1.56g
Dimensions:
24.90 x 4.70 x 14.10
Wire Size:
30 AWG
Downloads
RoHS - M55-8202642
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
