M55-6101242R

M55-6101242R

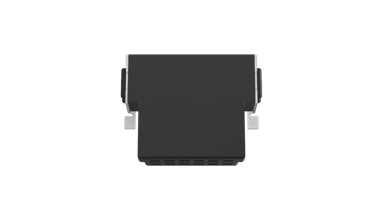

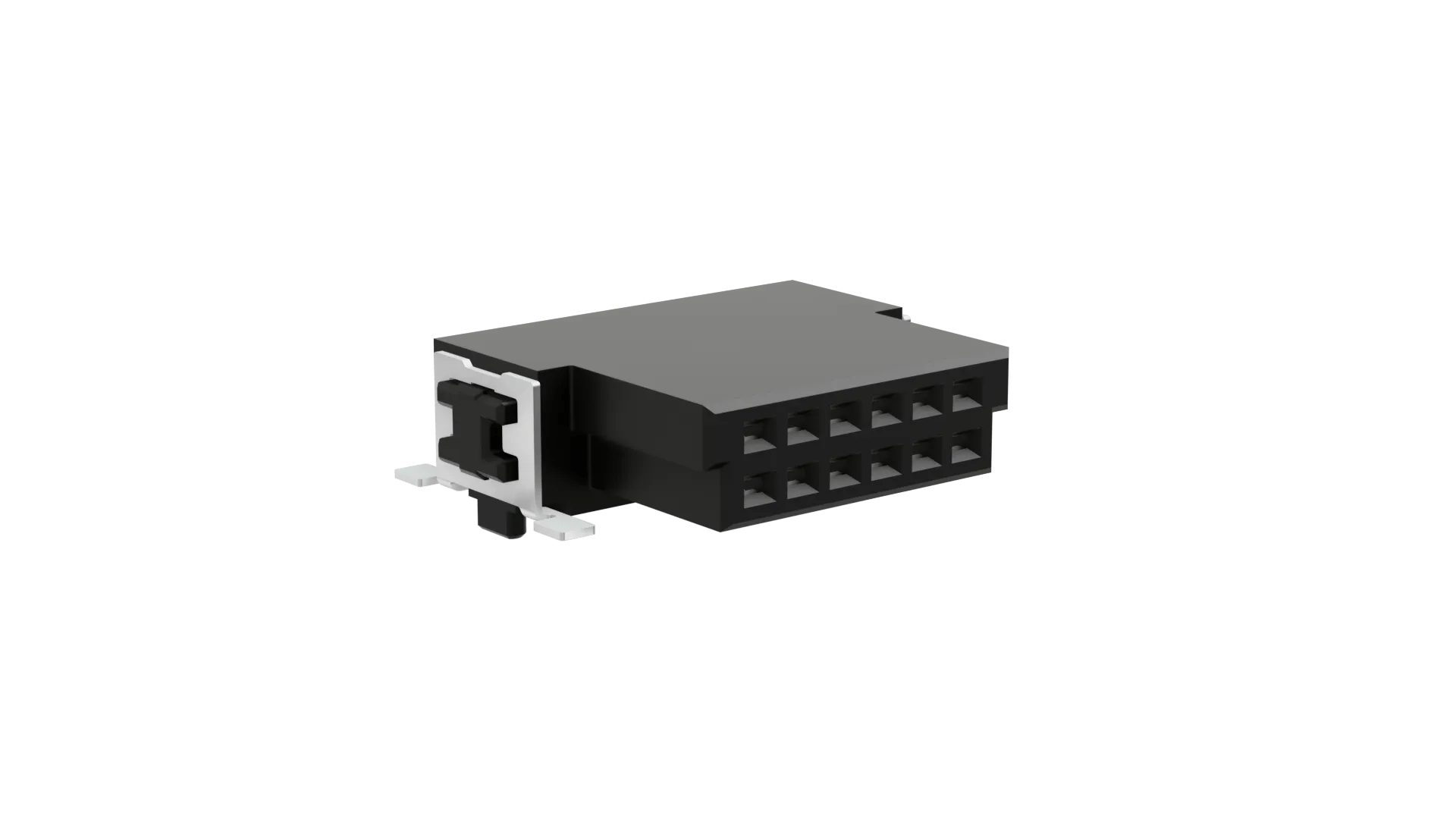

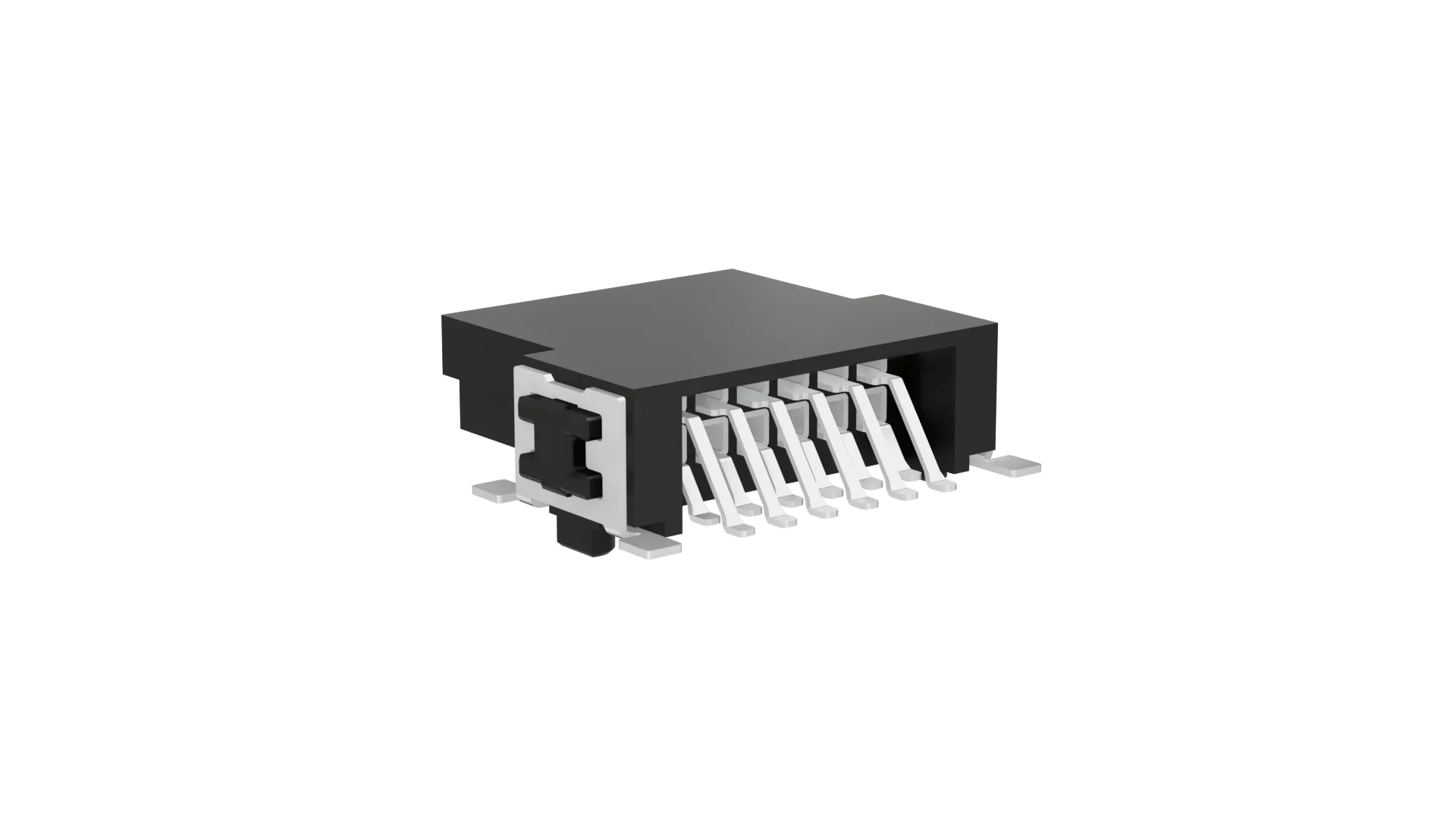

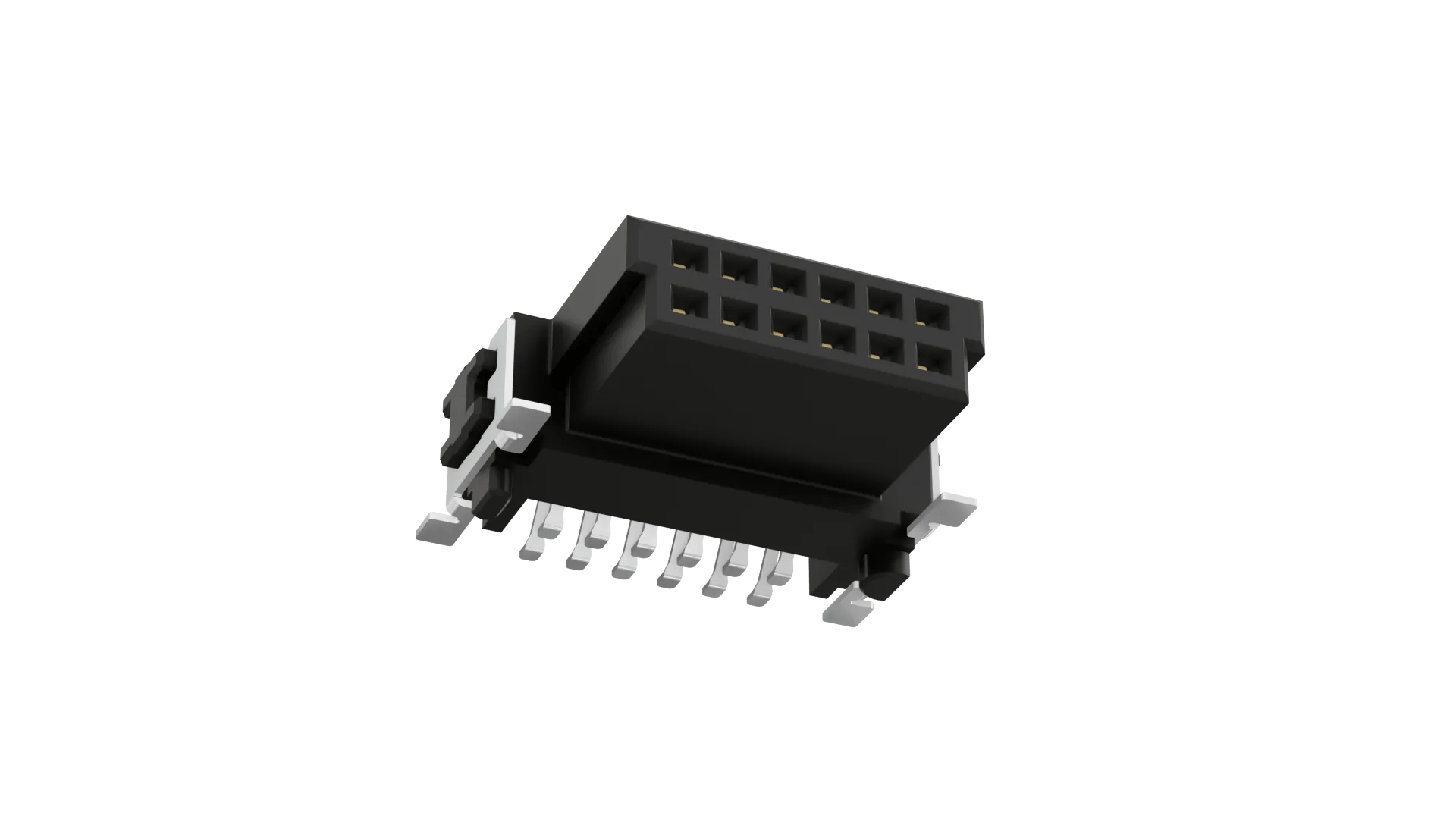

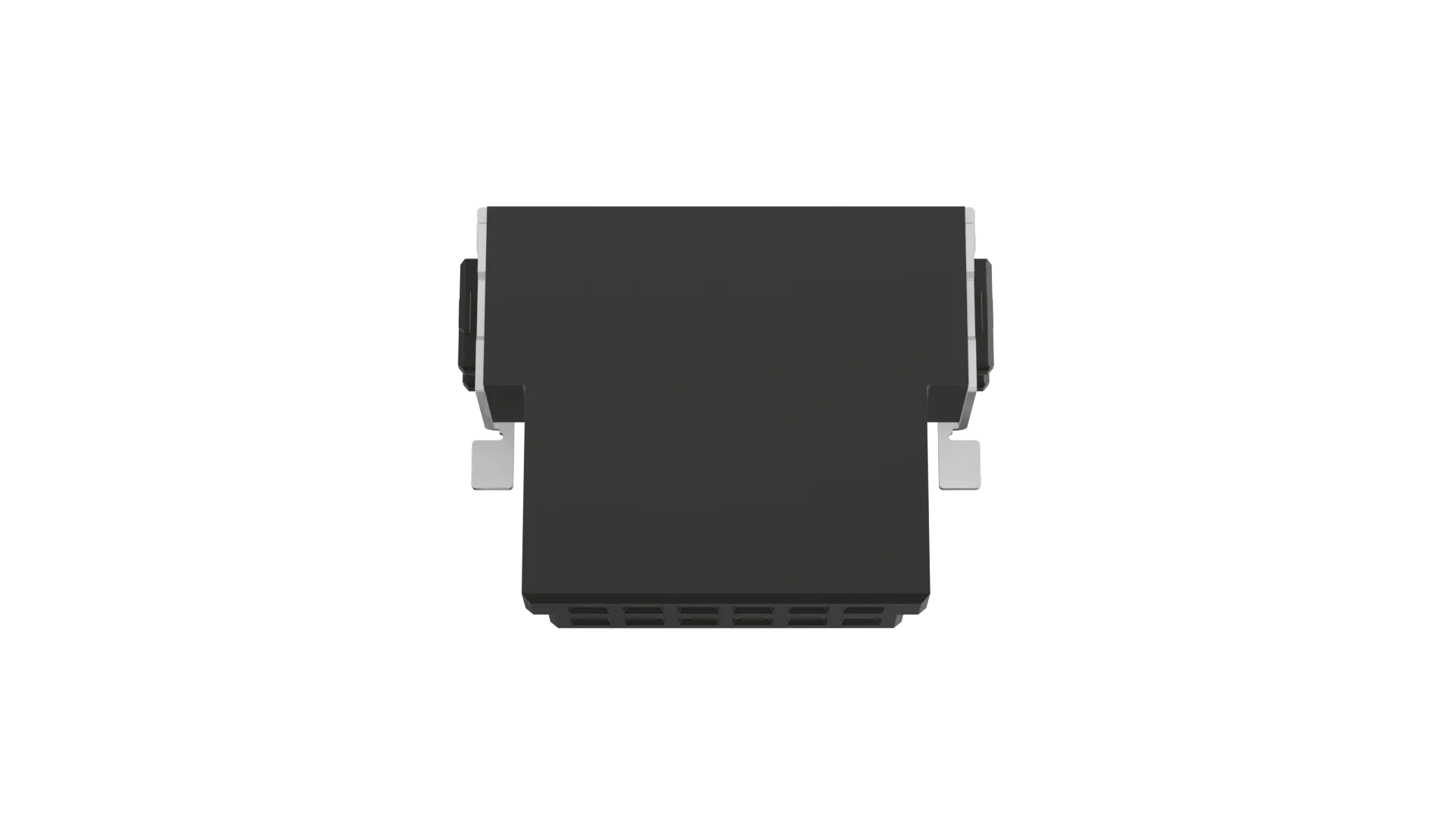

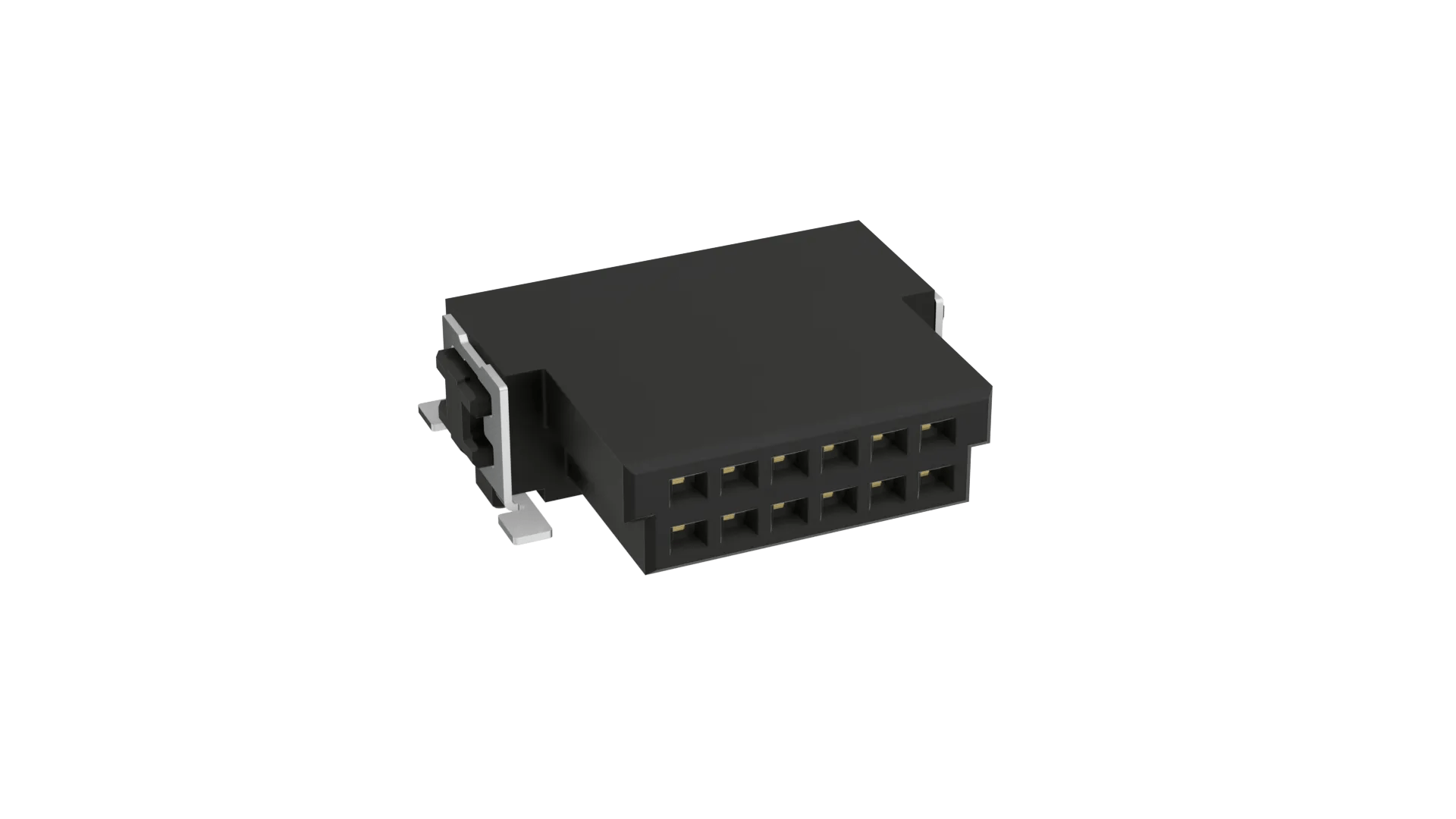

Kontrol (1.27mm pitch) DIL Horizontal Socket SMT high performance connector, in Tape and Reel - 12 contacts (6+6)

BBi
BBi
BBi

Traceparts account required

M55-6101242R

Kontrol (1.27mm pitch) DIL Horizontal Socket SMT high performance connector, in Tape and Reel - 12 contacts (6+6)

1.27mm (0.05") Pitch PCB Connector - Kontrol

  • Double Row Surface Mount, 10.8mm total footprint depth, shrouded polarized connector - 12 contacts (6+6). Location pegs, surface mount hold-down retaining tabs for additional solder strength.

  • Board stacking connectors for 90 degree or coplanar board-to-board connection. Supplied in Tape and Reel. Gold finish on contact area, Tin finish on termination.

  • For complete pin numbering or pin out information, see Component Specification C047XX.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Entry Style:

    Side Entry

  • Number of Rows:

    2

  • Connector Orientation:

    Horizontal

  • Country of Origin:

    CN

  • Side Stackable:

    No

  • Number of Signal Contacts:

    12

  • Operating Temperature:

    -55°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Current Rating:

    1.2A max per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    LCP

  • Base Material of Contact:

    Phosphor Bronze

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tape and Reel

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Housing Colour:

    Black

Dimensions

  • Contact Pitch:

    1.27mm (0.05")

  • Weight:

    0.611g

  • Dimensions:

    12.70 x 10.72 x 4.43

  • Height of Connector above PCB:

    3.68mm

Downloads

    Product Information

  • Catalog page - Archer Kontrol Mating Profiles

  • Product Datasheet - KONTROL: M55 range (BBi)

  • Product Training Module - Overview Guide to the Kontrol (M55 Series) High Performance range

    • Technical Documentation

  • Technical Drawing / Datasheet - M55-610.pdf

  • C047XX Component Specification - Kontrol M55 Series (1.27mm Pitch Industrial connectors)

  • Outgassing data for Harwin products (plastics)

    • Environmental Compliance

  • RoHS - M55-6101242R

  • Material composition for M55-610 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

    • Test Reports

  • Test Report HT064 - Kontrol (M55 Series) - Comparison to competitor product

  • Test Report HT060 - Kontrol (M55 series) - General (Electrical + Mechanical and Environmental)
