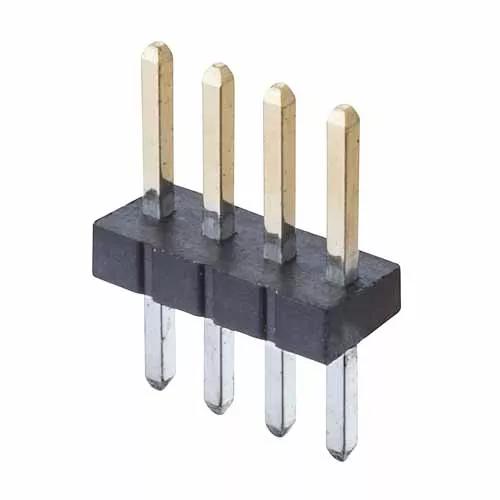

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
Single Row, 2.3mm PC Tail, 3mm mating pin height - 4 contacts.
Gold finish on contact area, Tin finish on termination.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Mating Pin Size:
0.4mm square
Number of Rows:
1
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
4
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1A per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
Yes
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 9T
Base Material of Contact:
Brass
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
1.27mm (0.05")
Weight:
0.048g
Dimensions:
5.08 x 2.10 x 6.30
PC Tail Length:
2.30mm
Height of Connector above PCB:
4.00mm
Downloads
Catalog page - Archer M50 Mating Profiles
Product Training Module - Overview Guide to the Harwin Archer range
Product Datasheet - ARCHER: M50 and M52 ranges (BBi)
Technical Drawing / Datasheet - M50-353.pdf
C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M50-353 series
RoHS - M50-3530442
