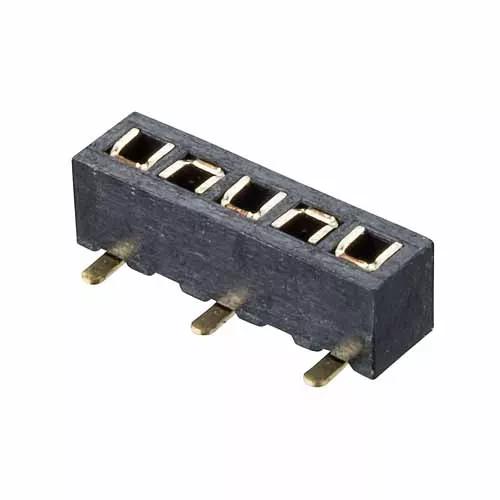

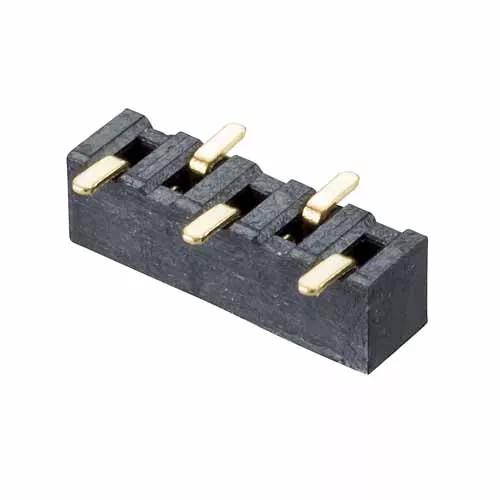

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
Single Row Surface Mount, 2.1mm connector height - 5 contacts.
Gold finish on contact area and termination. No location pegs.
Packaged in tubes.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Entry Style:
Dual Entry (Bottom Entry, Top Entry)
Mating Pin Size:
0.4mm square
Number of Rows:
1
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
5
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1A per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 9T
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
1.27mm (0.05")
Weight:
0.048g
Dimensions:
6.75 x 3.10 x 2.10
Height of Connector above PCB:
2.10mm
Downloads
Catalog page - Archer M50 Mating Profiles
Product Training Module - Overview Guide to the Harwin Archer range
Product Datasheet - ARCHER: M50 and M52 ranges (BBi)
Technical Drawing / Datasheet - M50-313.pdf
C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M50-313 series
RoHS - M50-3130545
