1.00mm (0.039") Pitch PCB Connector - M40 Cable-To-Board

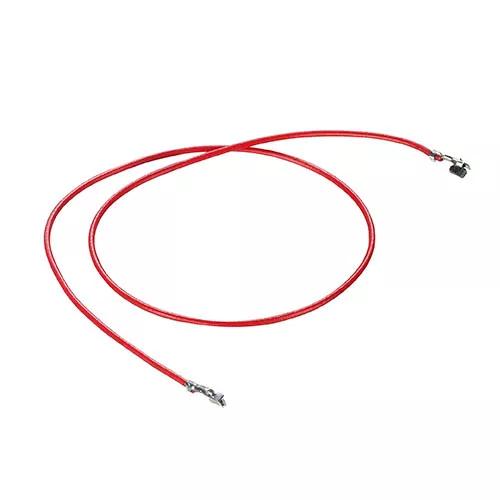

Single Pre-Crimped Contact, Female-to-Female with red 32 AWG wire, 150mm (6") long.

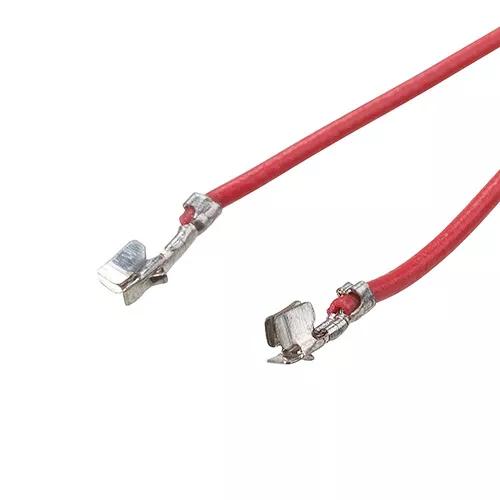

Manufactured with the M40-1000046 crimp contact. Tin finish on contact area.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size:
0.2mm x 0.4mm
Connector Orientation:
Straight
Country of Origin:
TW
Number of Signal Contacts:
1
Operating Temperature:
-25°C to +85°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1A per contact
Materials
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Phosphor Bronze
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
100% Tin over Nickel
Dimensions
Contact Pitch:
1.00mm (0.039")
Weight:
0.129g
Dimensions:
150.00 x 0.78 x 1.35
Wire Size:
32 AWG
