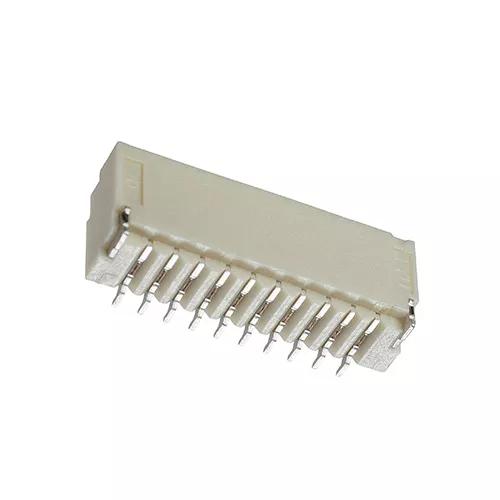

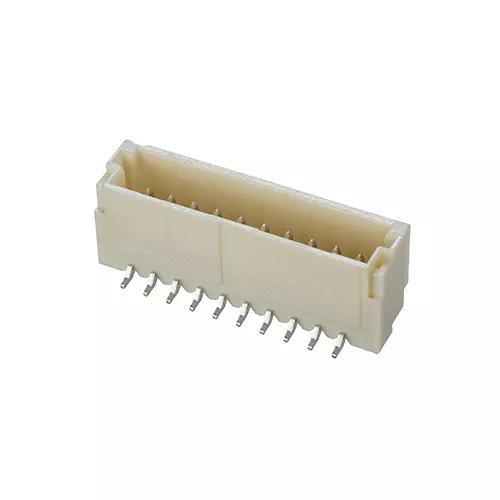

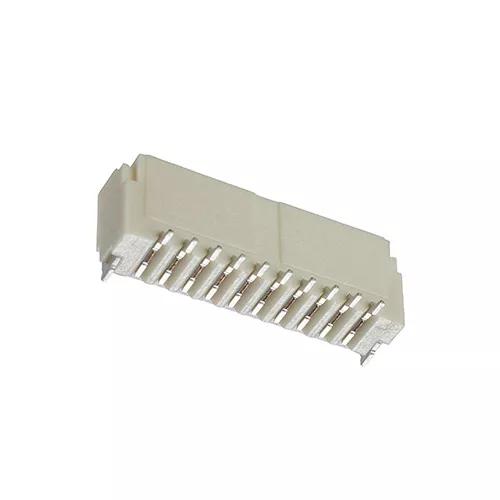

Single Row Male Vertical connector, Surface Mount with Tin finish - 12 contacts.
Surface mount hold-down tabs, shrouded and polarized housing.

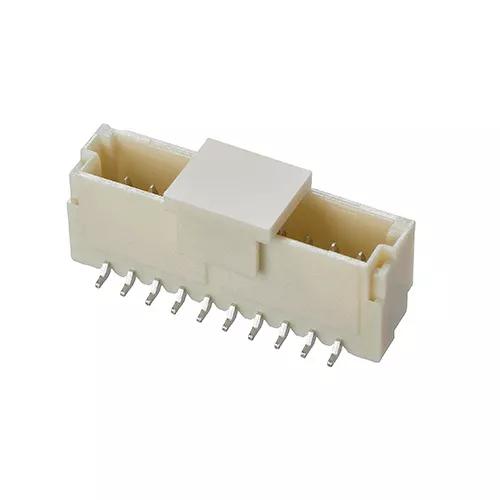

Packaged in Tape & Reel, with Pick & Place caps.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Mating Pin Size:
0.2mm x 0.4mm
Number of Rows:
1
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
No
Number of Signal Contacts:
12
Operating Temperature:
-25°C to +85°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1A per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
100% Tin over Nickel
Housing Material:
LCP
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Cream
Dimensions
Contact Pitch:
1.00mm (0.039")
Weight:
0.22g
Dimensions:
14.00 x 3.70 x 4.35
Height of Connector above PCB:
4.35mm
Downloads
Technical Drawing / Datasheet - M40-301R.pdf
Outgassing data for Harwin products (plastics)
Catalog page - M40 Cable-to-Board Specification + Mating Profile
Product Training Module - Overview of the Fine Pitch connectors + 1.25mm pitch and smaller
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M40-301 series
RoHS - M40-3011246R
