3.00mm Pitch High-Reliability Connector - M300

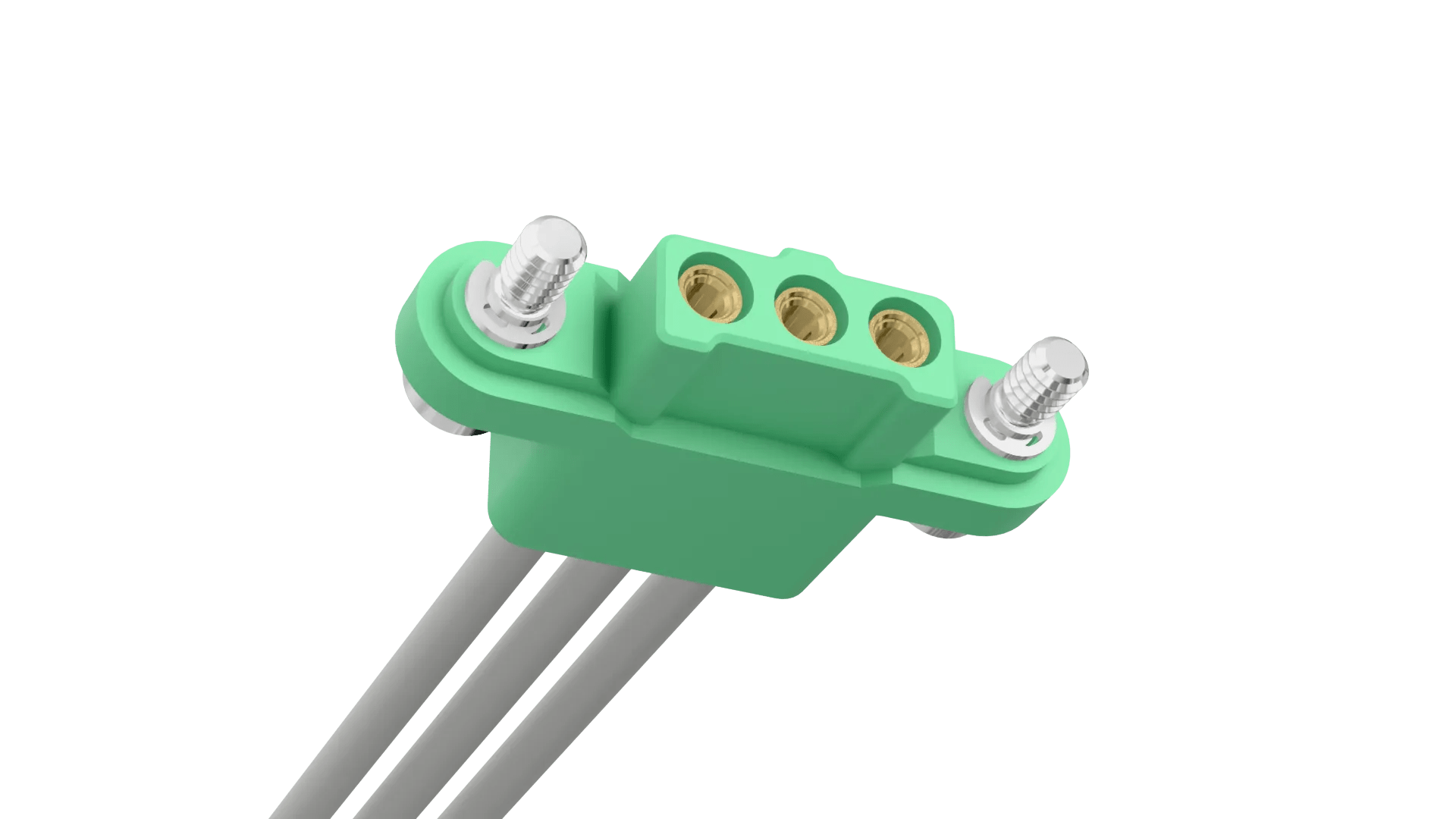

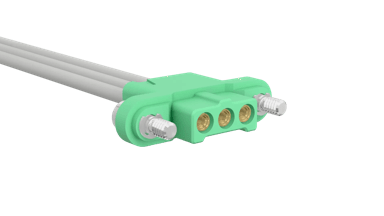

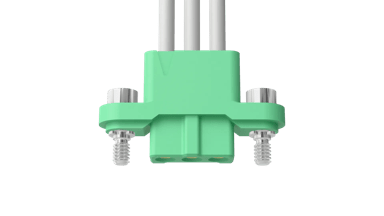

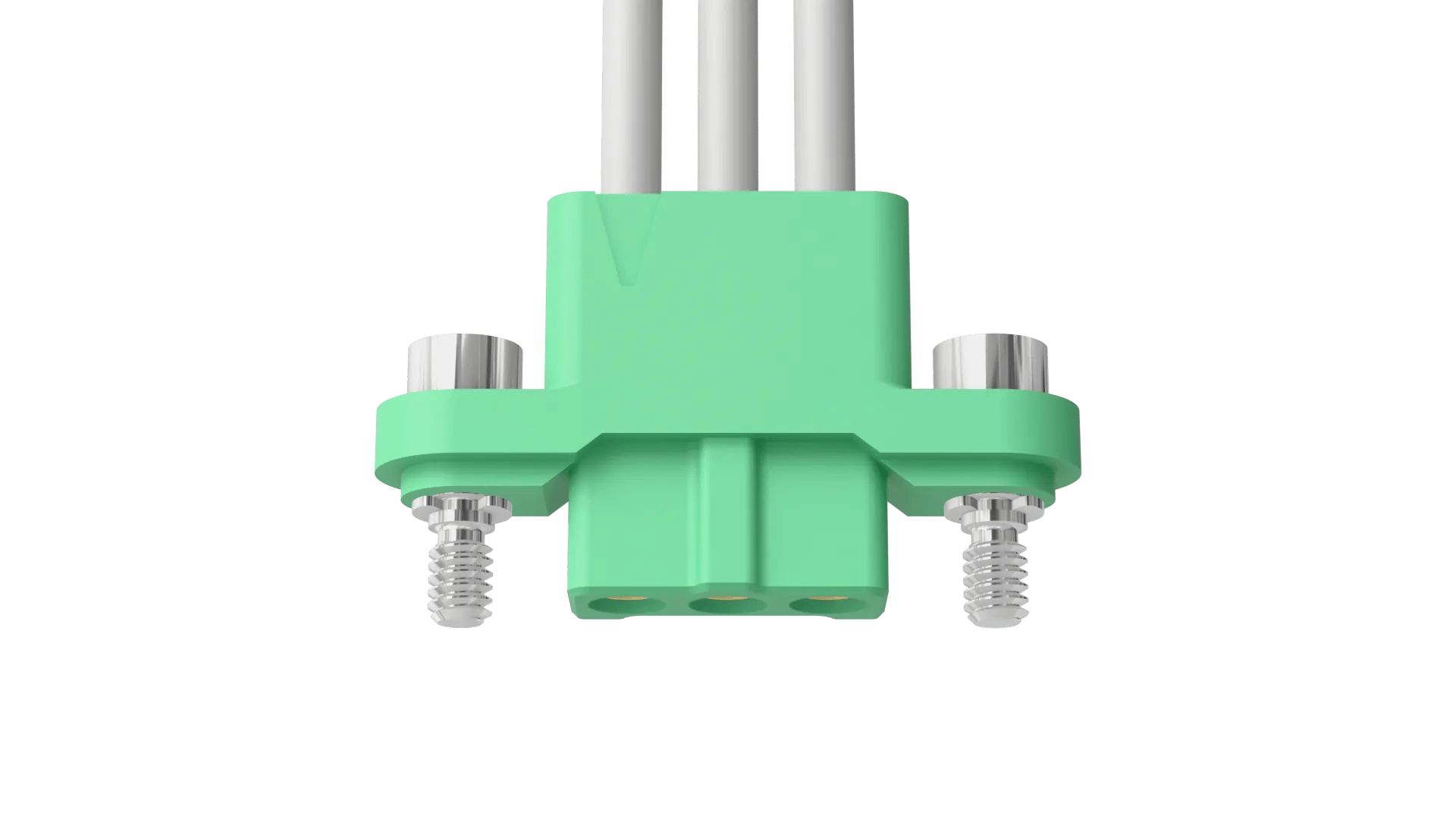

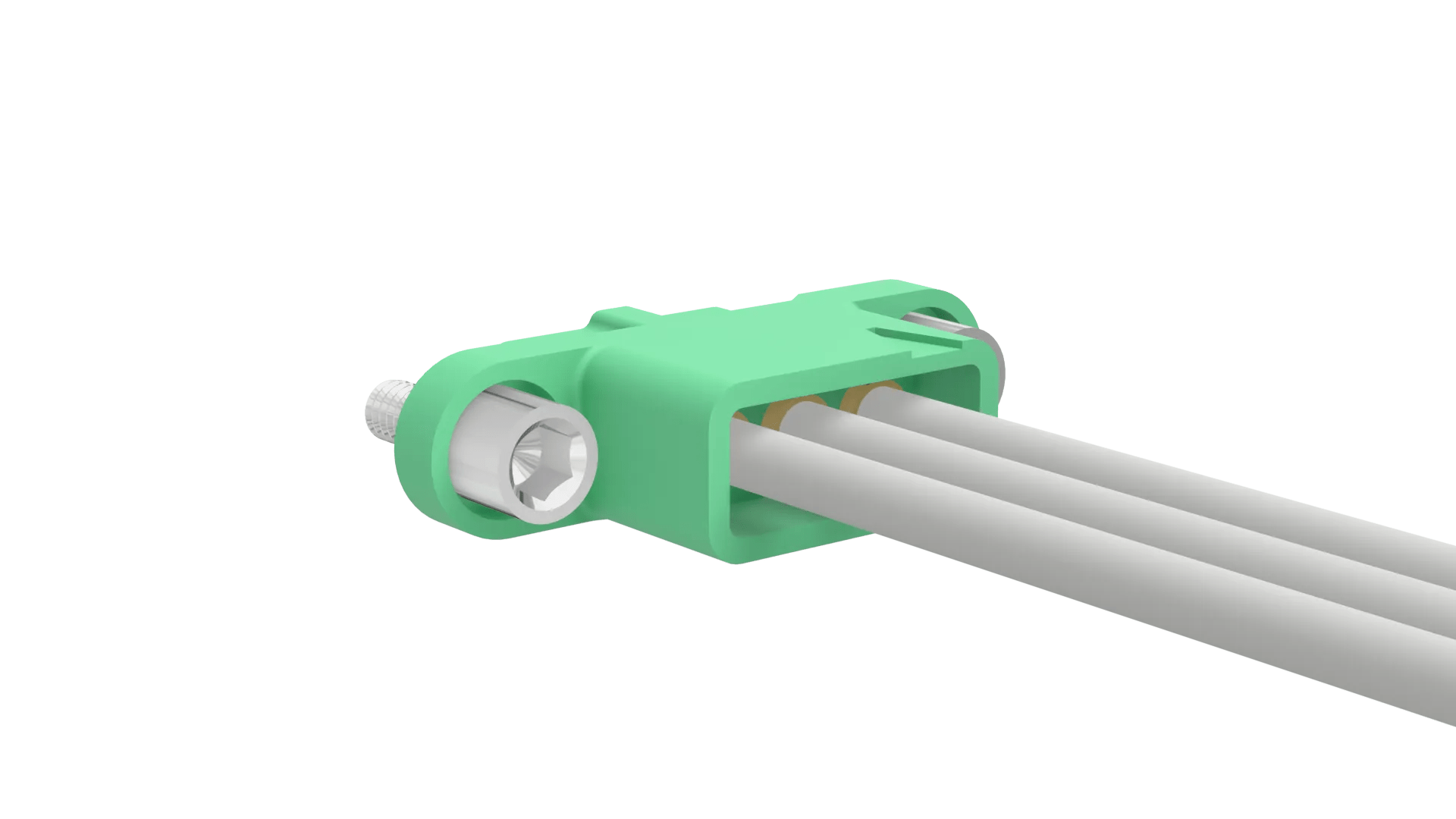

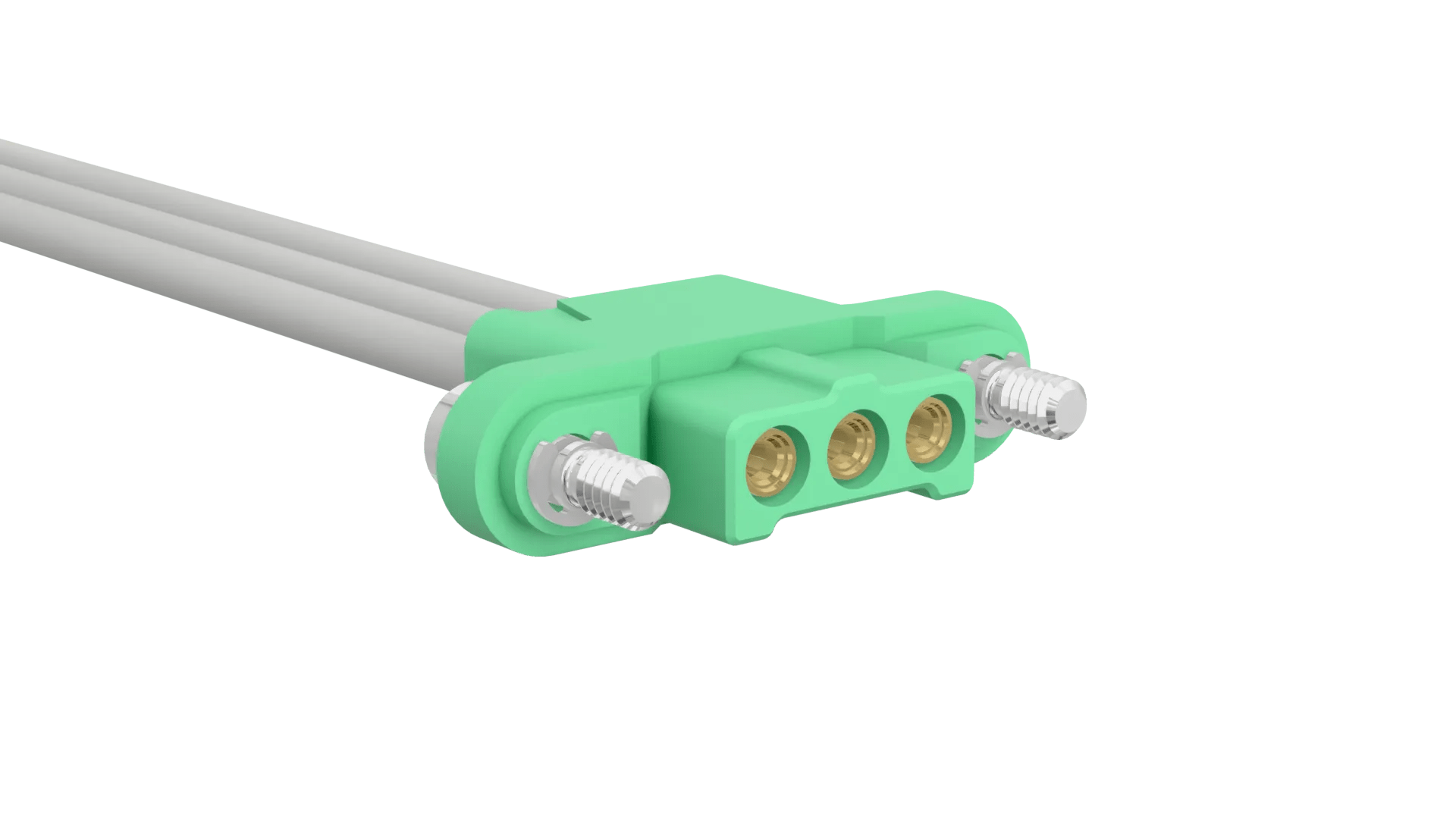

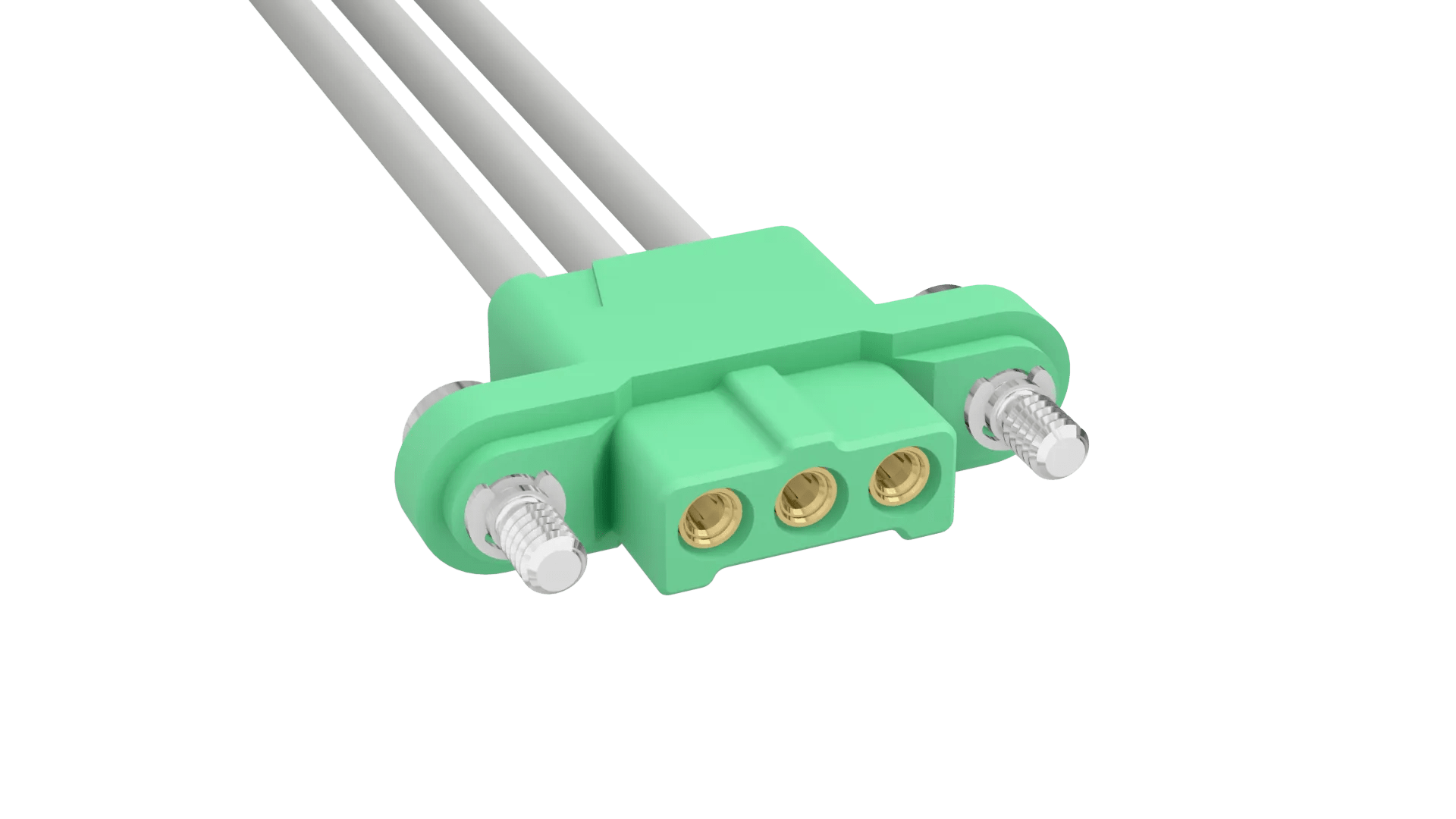

Female Single-Ended with white 20 AWG cable, 150mm (6") long - 3 contacts. Fitted with floating jackscrews, hex socket head. Gold finish on connector contact area.
Manufactured with the M300-0010045 crimp contacts, M300-2250396F2 Single Row crimp housing.
For complete pin numbering or pin out information, see Component Specification C048XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size:
Ø1mm
Number of Rows:
1
Connector Orientation:
Straight
Country of Origin:
GB/US
Side Stackable:
No
Number of Power/Coax Contacts:
3
Operating Temperature:
-65°C to +175°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
8A max per contact simultaneous
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 4T
Base Material of Contact:
Beryllium Copper contact clip, Brass shell
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Green
Dimensions
Contact Pitch:
3.00mm (0.118")
Weight:
5.289g
Dimensions:
151.00 x 21.30 x 5.30
Thread Size:
M2
Wire Size:
20 AWG
Downloads
Catalog page - M300 Mating Profiles + Pin Numbering
Product Training Module - Introduction to the M300 connectors + 3mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Datasheet - M300: M300 range (HRi)
Technical Drawing / Datasheet - M300-FCXXX05F2-XXXXL.pdf
C048XX Component Specification - M300 Series (3.00mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on M300 contacts
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
RoHS - M300-FC60305F2-0150L
