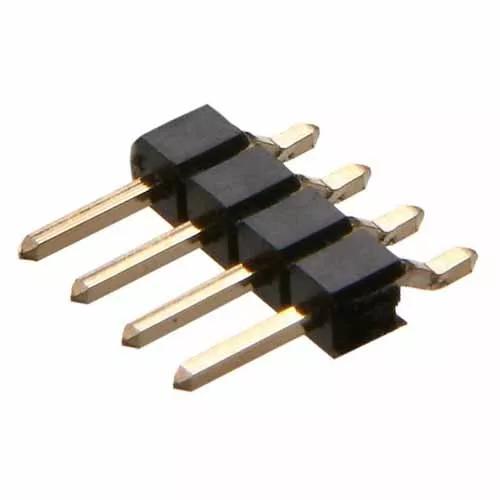

2.00mm (0.079") Pitch PCB Connector - M22 Series
Single row Surface Mount, 4.2mm mating pin length - 3 contacts.
Gold finish on contact area and termination. Packaged in Tape & Reel, with Pick & Place caps.
Suitable for mating with female crimp housings M22-302, and associated crimp contacts M22-304 or M22-305.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Mating Pin Size:
0.5mm square
Number of Rows:
1
Connector Orientation:
Horizontal
Country of Origin:
CN
Side Stackable:
No
Number of Signal Contacts:
3
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
2A per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
Yes
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 9T
Base Material of Contact:
Brass
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
0.16g
Dimensions:
6.00 x 9.00 x 2.00
Height of Connector above PCB:
2.00mm
Downloads
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Datasheet - INDESS range: M20 and M22 (BBi)
Technical Drawing / Datasheet - M22-533R.pdf
C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)
Outgassing data for Harwin products (plastics)
RoHS - M22-5330305R
Material composition for M22-533 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
