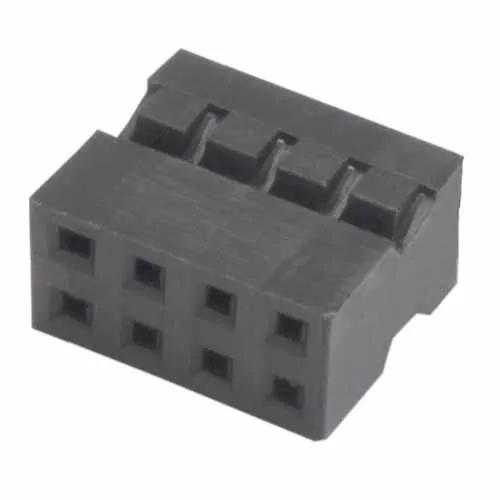

Double Row female crimp housing - 8 contact (4+4).
Use with crimp contacts M22-3040042, M22-3040046, M22-3050042 or M22-3050046.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Mating Pin Size:
0.5mm square
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
TW
Side Stackable:
Yes
Number of Signal Contacts:
8
Operating Temperature:
-25°C to +85°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1A per contact
Polarised:
No
Cuttable:
No
Materials
Housing Material:
Polyamide (Nylon) 66
Flammability Rating:
UL94V-2
Packaging Style:
Bulk/Loose
Housing Colour:
Black
Dimensions
Contact Pitch:
2.00mm (0.079")
Weight:
0.135g
Dimensions:
8.20 x 4.00 x 7.20
Downloads
Technical Drawing / Datasheet - M22-302.pdf
C018XX Component Specification - M22 Series (2.00mm pitch PCB connectors)
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Datasheet - INDESS range: M20 and M22 (BBi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M22-302 series
