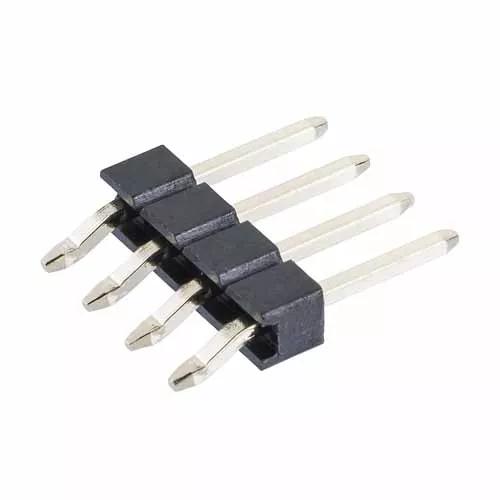

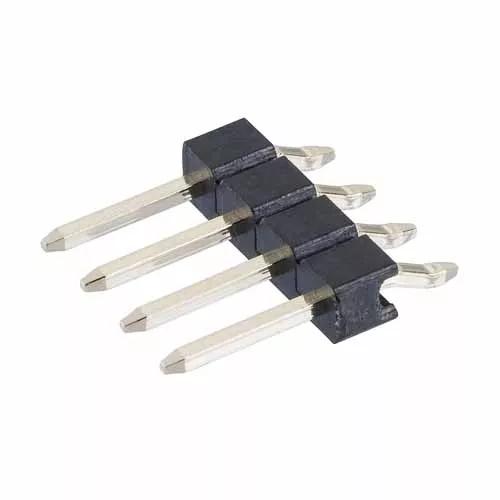

2.54mm (0.1") Pitch PCB Connector - M20 Series
Single Row Surface Mount, 6.0mm mating pin, 2.5mm molding profile - 4 contacts.
Gold finish on contact area and termination.
Packaged in Tape & Reel, with Pick & Place caps.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Mating Pin Size:
0.64mm square
Number of Rows:
1
Connector Orientation:
Horizontal
Country of Origin:
CN
Side Stackable:
No
Number of Signal Contacts:
4
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
3A per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
Yes
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 9T
Base Material of Contact:
Brass
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.54mm (0.1")
Weight:
0.351g
Dimensions:
10.16 x 11.50 x 2.50
Height of Connector above PCB:
2.50mm
Downloads
Product Training Module - Overview Guide to the Harwin M20 (2.54mm pitch) and M22 (2mm pitch) ranges
Product Datasheet - INDESS range: M20 and M22 (BBi)
Technical Drawing / Datasheet - M20-889.pdf
C001XX Component Specification - M20 Series (2.54mm pitch PCB connectors)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M20-889 series
RoHS - M20-8890445R
