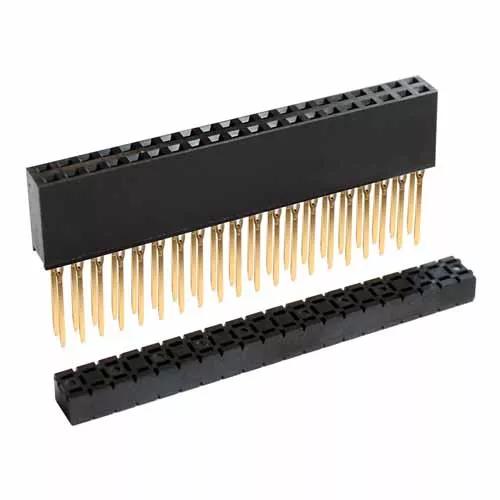

2.54mm (0.1") Pitch Double Row, with press-fit tails - Gold finish, 40 contacts (20+20).
12.1mm stackthrough tails.
Tails will mate with another PC/104 connector on the underside of the PCB.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Entry Style:
Top Entry
Mating Pin Size:
0.64mm square
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
TW
Side Stackable:
Yes
Number of Signal Contacts:
40
Operating Temperature:
-55°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
1A max per contact
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
No
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PPS
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Tube
Finish / Plating on Termination:
Gold
Housing Colour:
Black
Dimensions
Contact Pitch:
2.54mm (0.1")
Weight:
8.922g
Dimensions:
51.82 x 4.90 x 23.20
PC Tail Length:
12.10mm
Height of Connector above PCB:
11.10mm
