Hardware - Terminal Pin, Terminal Lug, Turret Lug

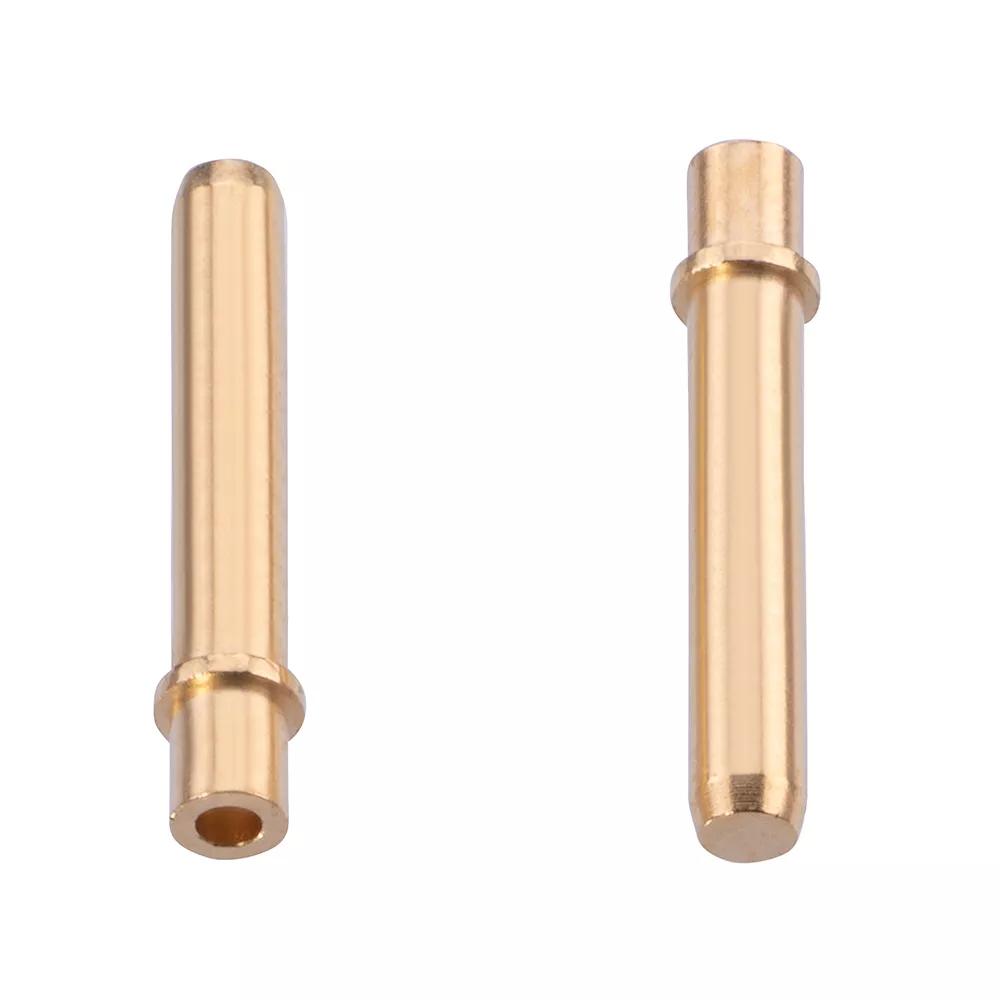

Ø1.75mm pin diameter, 9.5mm mating length, for 1.6mm panel thickness.
Gold finish.
Swage for additional mechanical retention. Product still requires soldering for electrical connection.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
Mating Pin Size:
Ø1.75mm
Connector Orientation:
Vertical
Country of Origin:
GB
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Dimensions
Weight:
0.242g
Dimensions:
11.85 x Ø2.25
PC Tail Length:
8.23mm
Height of Connector above PCB:
9.85mm
Downloads
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
Technical Drawing / Datasheet - H2181-H2185.pdf
Outgassing data for Harwin products (plastics)
RoHS - H2183-05
Material composition for H2183 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
