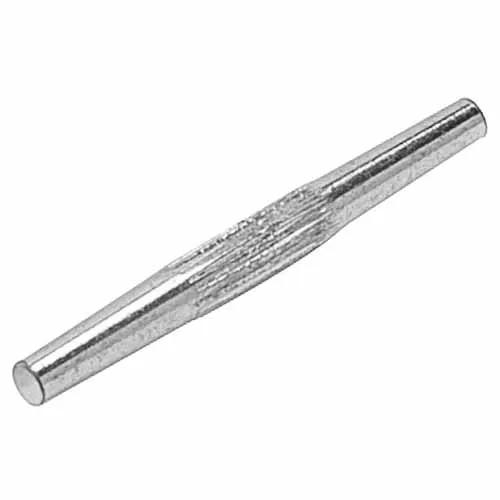

15.88mm long, Ø1.68mm spline. Double ended, for 3.2mm panel thickness.
Bright 100% Tin finish.
Knurled for mechanical board retention. Product still requires soldering for electrical connection.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation:
Vertical
Country of Origin:
GB
Number of Power/Coax Contacts:
1
Number of Signal Contacts:
1
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
100% Tin over Nickel
Dimensions
Weight:
0.239g
Dimensions:
15.88 x Ø1.68
