Hardware - Terminal Pin, Terminal Lug, Turret Lug

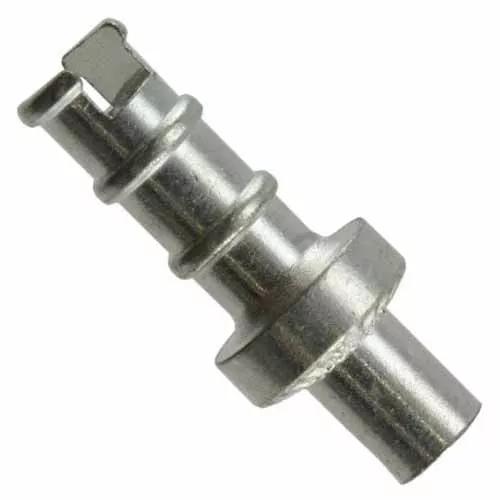

Triple turret with slot, 9.12mm high, Ø3.18mm diameter, for 2.4mm panel thickness.
Bright 100% Tin finish. Knurled underside of shoulder to prevent rotation once swaged.
Swage for additional mechanical retention. Product still requires soldering for electrical connection.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
Connector Orientation:
Vertical
Country of Origin:
GB
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
100% Tin over Nickel
Dimensions
Weight:
0.544g
Dimensions:
12.30 x Ø4.75
PC Tail Length:
3.18mm
Height of Connector above PCB:
9.12mm
Downloads
IS-35 - Punch and Die Tools Instruction Sheet
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
Technical Drawing / Datasheet - H2071Z01.pdf
Outgassing data for Harwin products (plastics)
RoHS - H2071Z01
Material composition for H2071Z01 product
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
