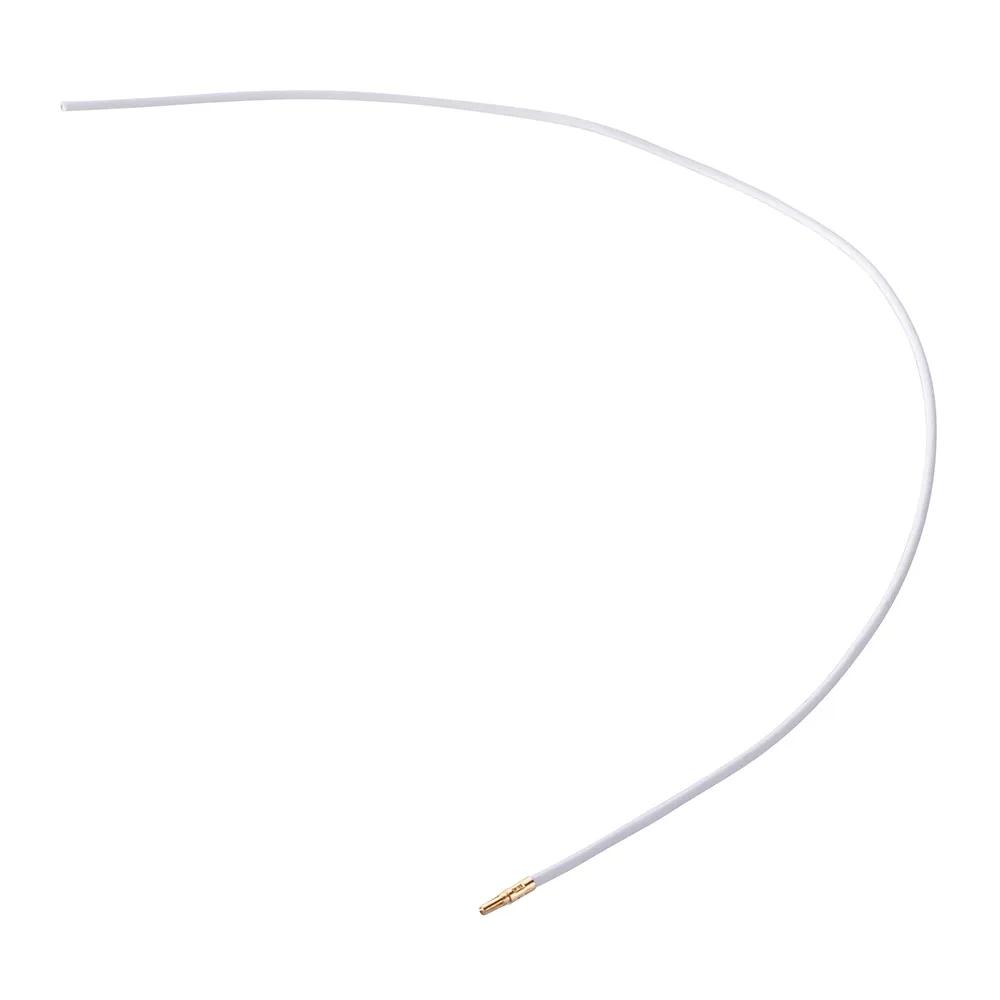

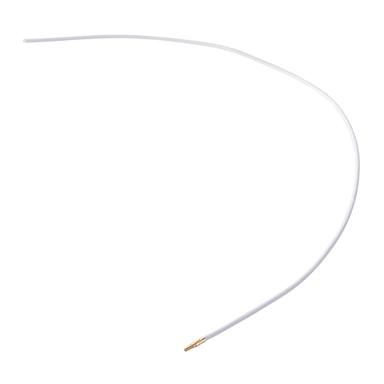

Single Pre-Crimped Contact, Female Single-Ended with white 26 AWG cable, 4000mm long.
Manufactured with the G125-0010005 crimp contacts. Gold finish on contact area.
To be used in Gecko-SL or Gecko-MT crimp housings (G125-224 series) and Gecko Latch crimp housings (G125-204 series).
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Change Notifications
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Mating Pin Size:
Ø0.4mm
Connector Orientation:
Straight
Country of Origin:
GB/US
Number of Signal Contacts:
1
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Materials
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
7.928g
Dimensions:
4000.00 x Ø1.03
Wire Size:
26 AWG
Downloads
Obsolescence Notification 08-Nov-2024 - Gecko Pre-Cabled Signal Contact part number change
Technical Drawing / Datasheet - G125-XXXXXXXXXXXXXX.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Plating thickness on Gecko contacts (signal and power)
Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
IS-38 - Z125-902 Assembly Tool Instruction Sheet
Product Datasheet - Gecko range: signal connectors (HRi)
Product Datasheet - Gecko-MT range (HRi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for G125-FWXXXXXAAL9400 series
RoHS - G125-FW14000AAL9400
