1.25mm Pitch High-Reliability Connector - Gecko-MT

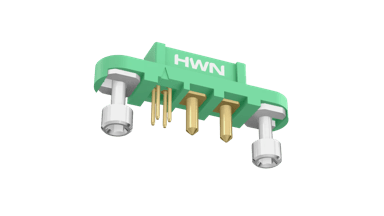

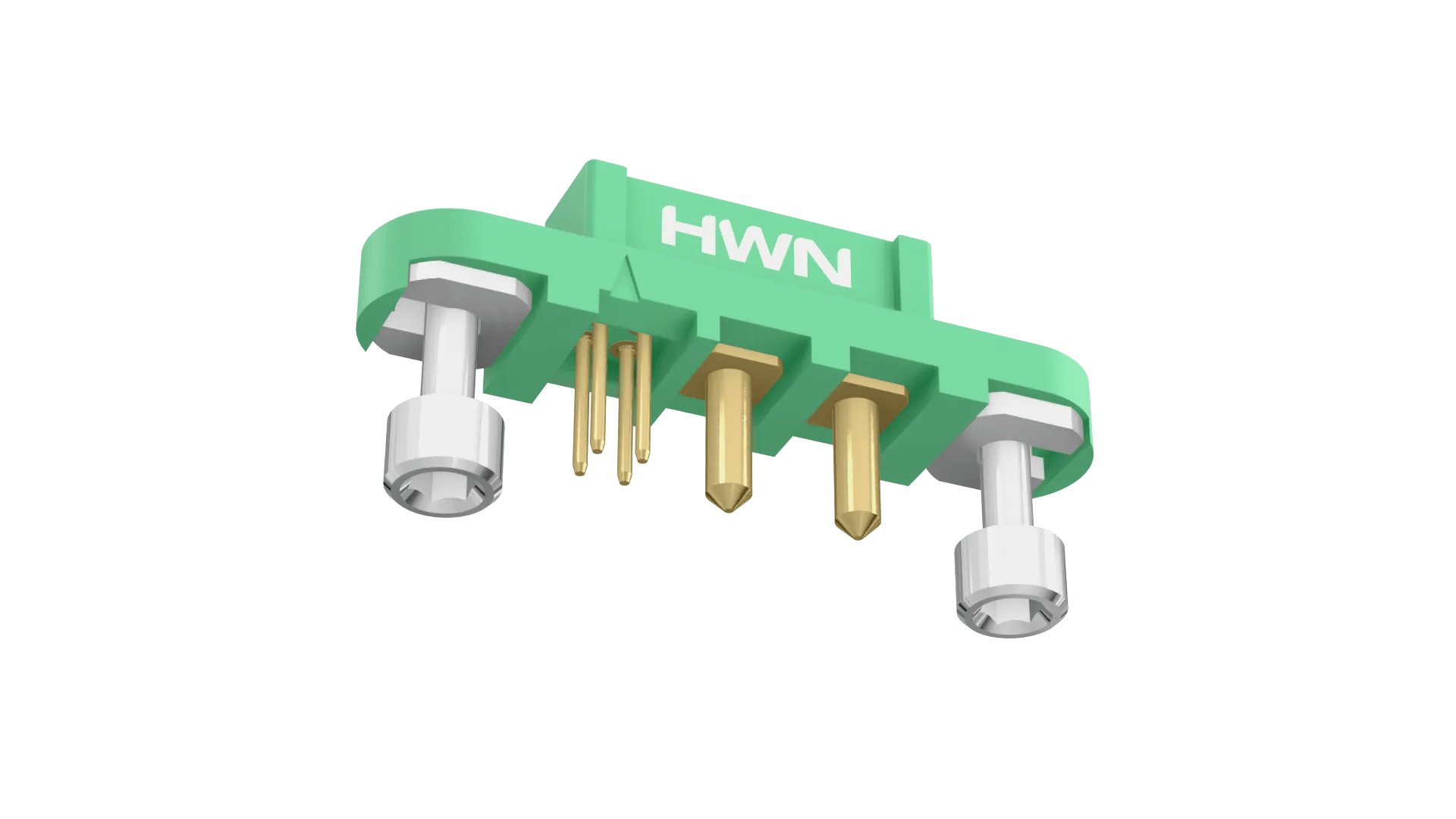

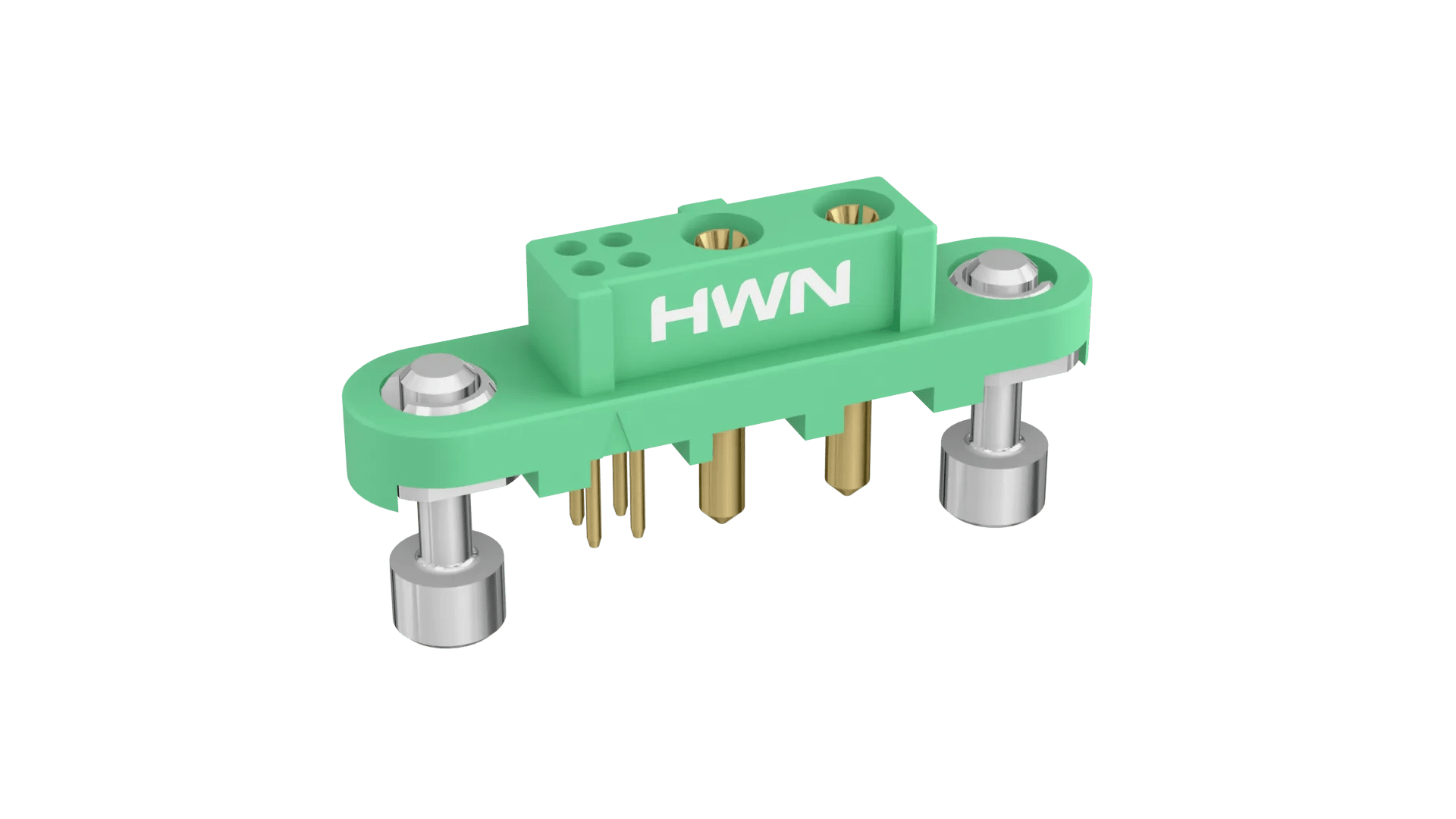

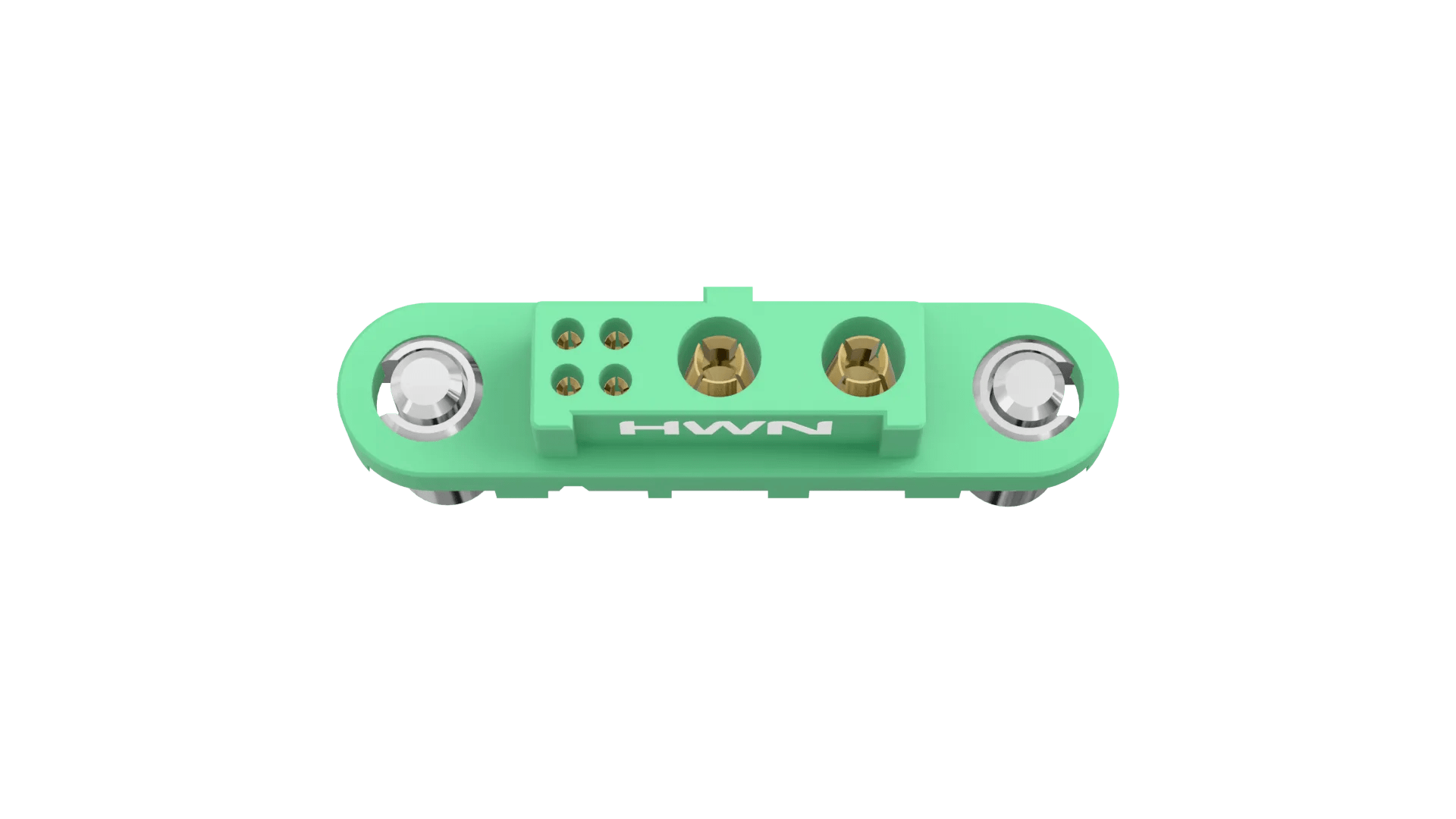

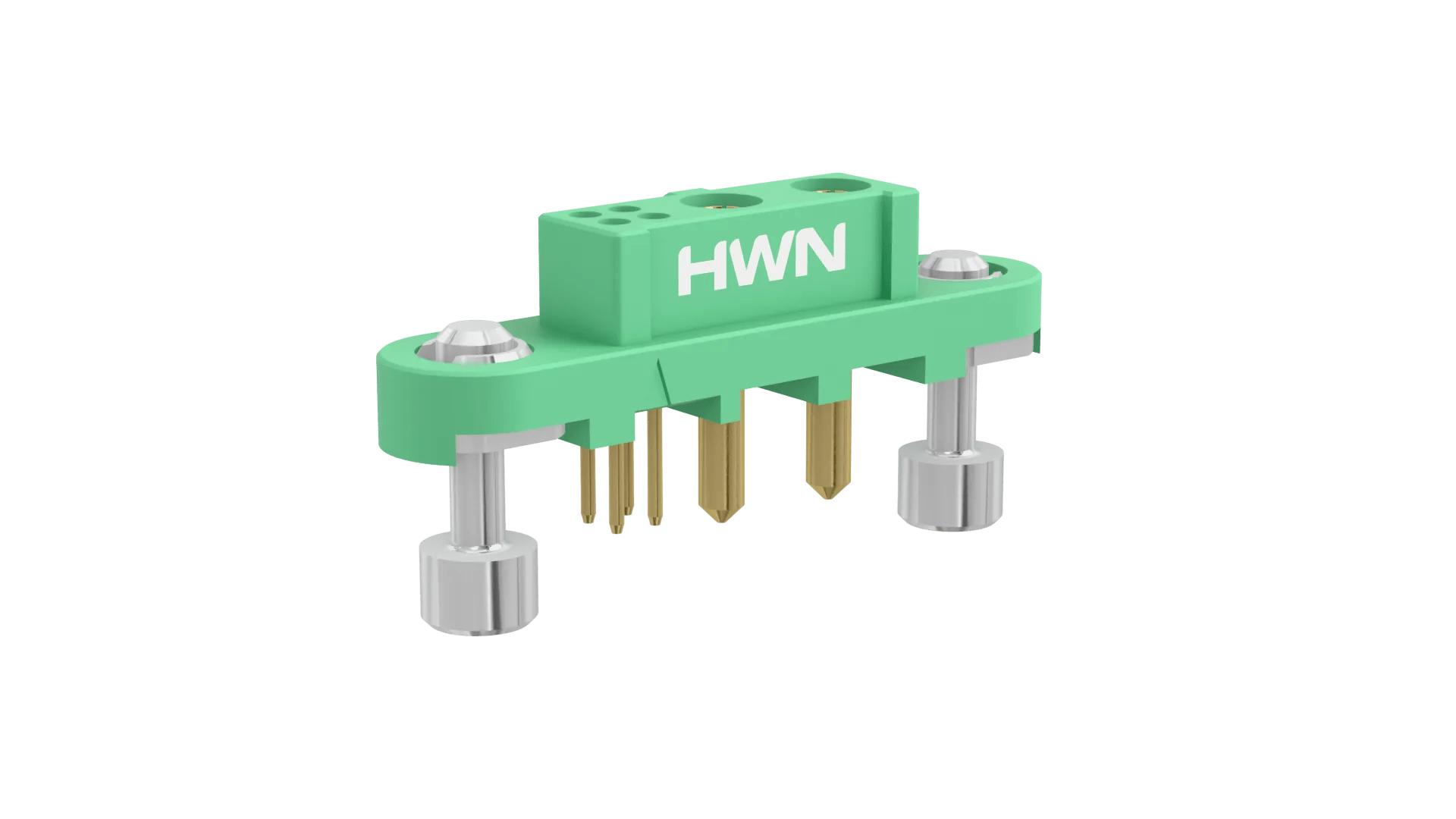

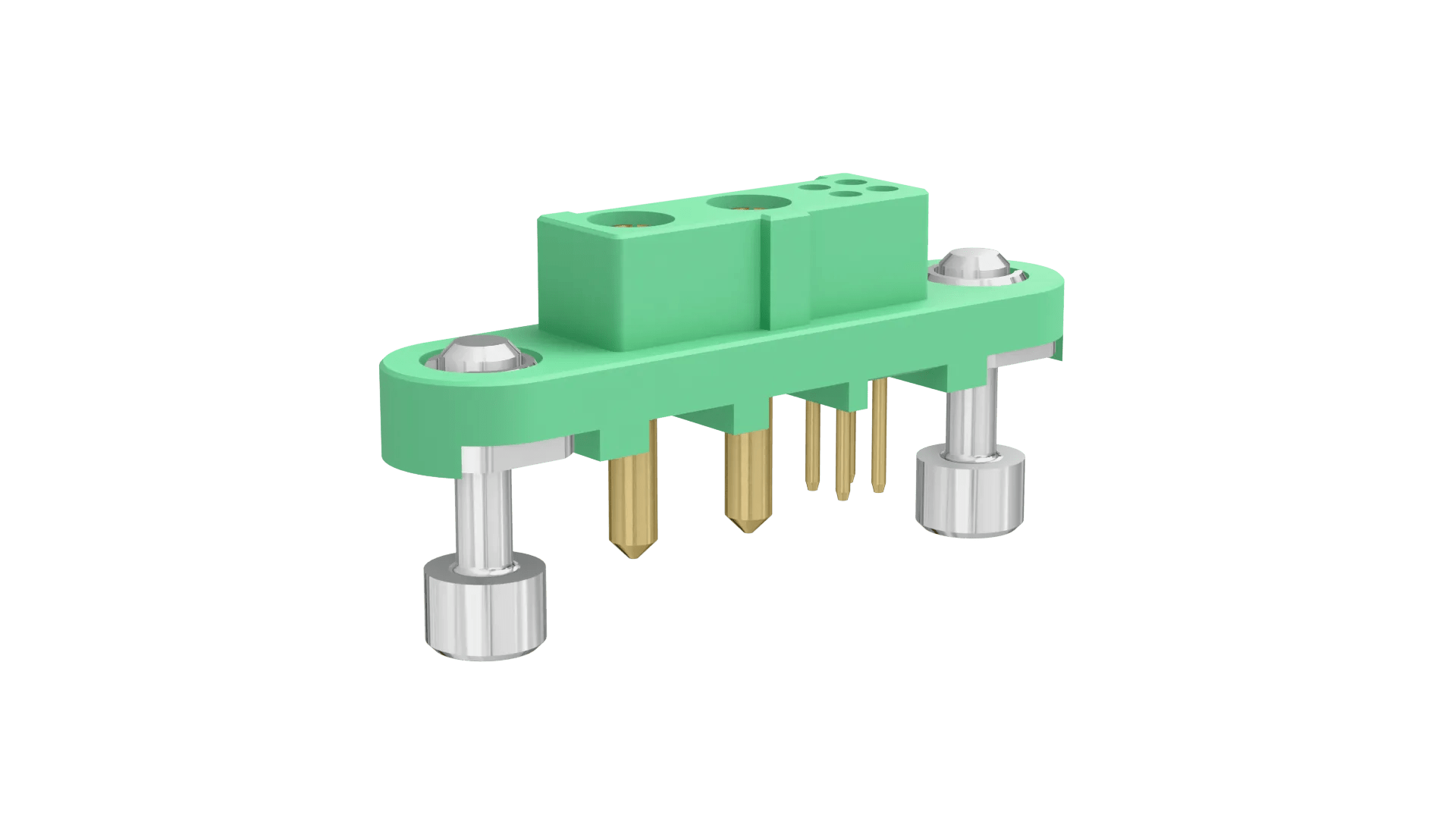

Female Vertical Throughboard connector - 2 power, 4 signal contact arrangement. Power contacts are 3.6mm termination length, signal are 3mm. Fitted with floating Screw-Lok fixings including a hexagonal socket head, Mate-before-Lock.
Supplied in tape strips with pick and place cap. Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Floating Screw-Lok with Hex Socket Head (Standard Gender)
Mating Pin Size:
Ø0.4mm, Ø1mm
Number of Rows:
Mixed
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Special (Power or Coax) Contacts:
2
Number of Signal Contacts:
4
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
Signal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 4T
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Tape and Reel Strip
Finish / Plating on Termination:
Gold
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
1.171g
Dimensions:
21.05 x 4.90 x 8.85
Thread Size:
M2
PC Tail Length:
3.00mm and 3.60mm
Height of Connector above PCB:
5.25mm
Downloads
Catalog page - Gecko-MT Pin Numbering + Mating Profiles
Product Datasheet - Gecko-MT range (HRi)
Product Training Module - Overview Guide to the Gecko-MT range + 1.25mm pitch High-Reliability with Power
Technical Drawing / Datasheet - G125-FV1XXF1-XXAB000P.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Plating thickness on Gecko contacts (signal and power)
Outgassing data for Harwin products (plastics)
RoHS - G125-FV104F1-02AB000P
Material composition for G125-FV1XXF1-YYAB000P series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
