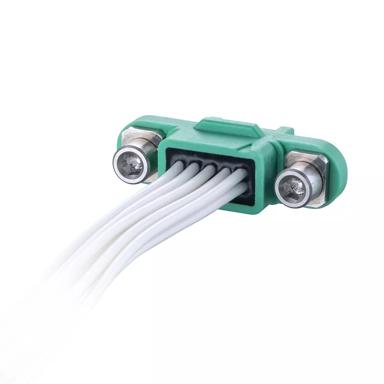

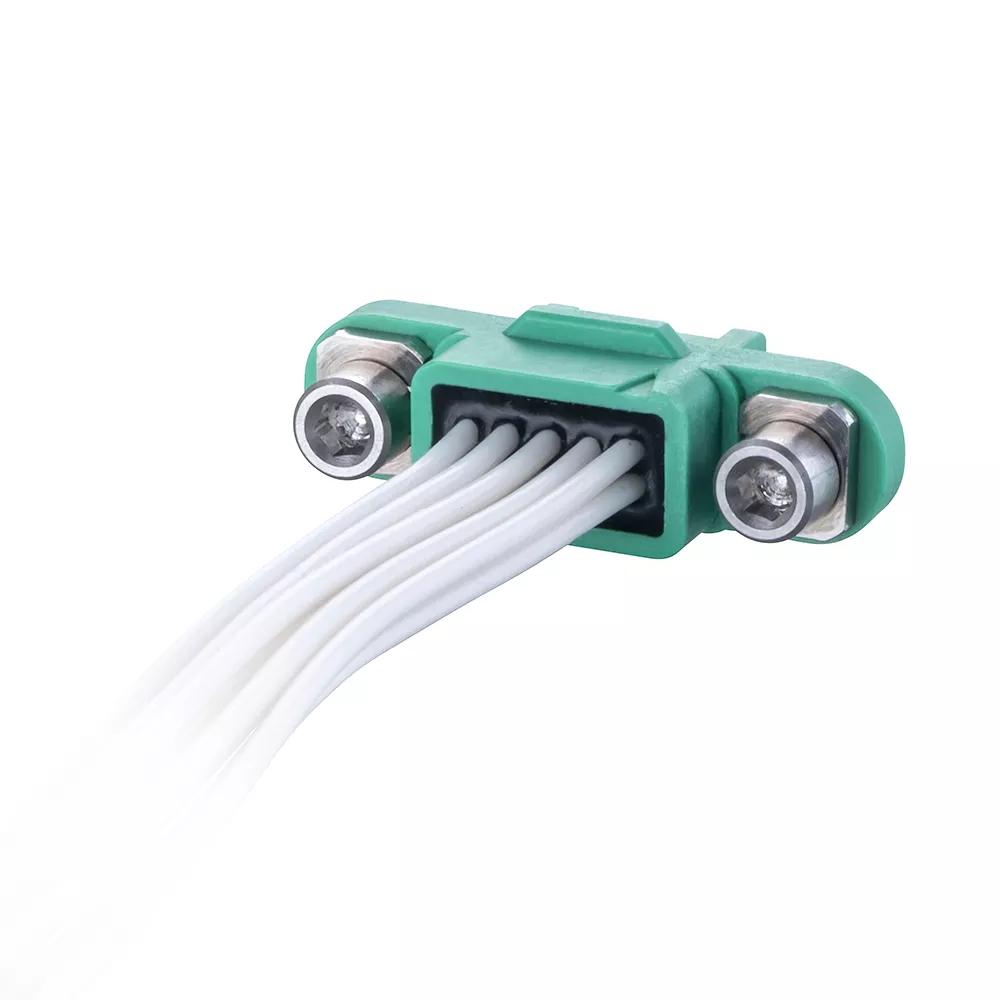

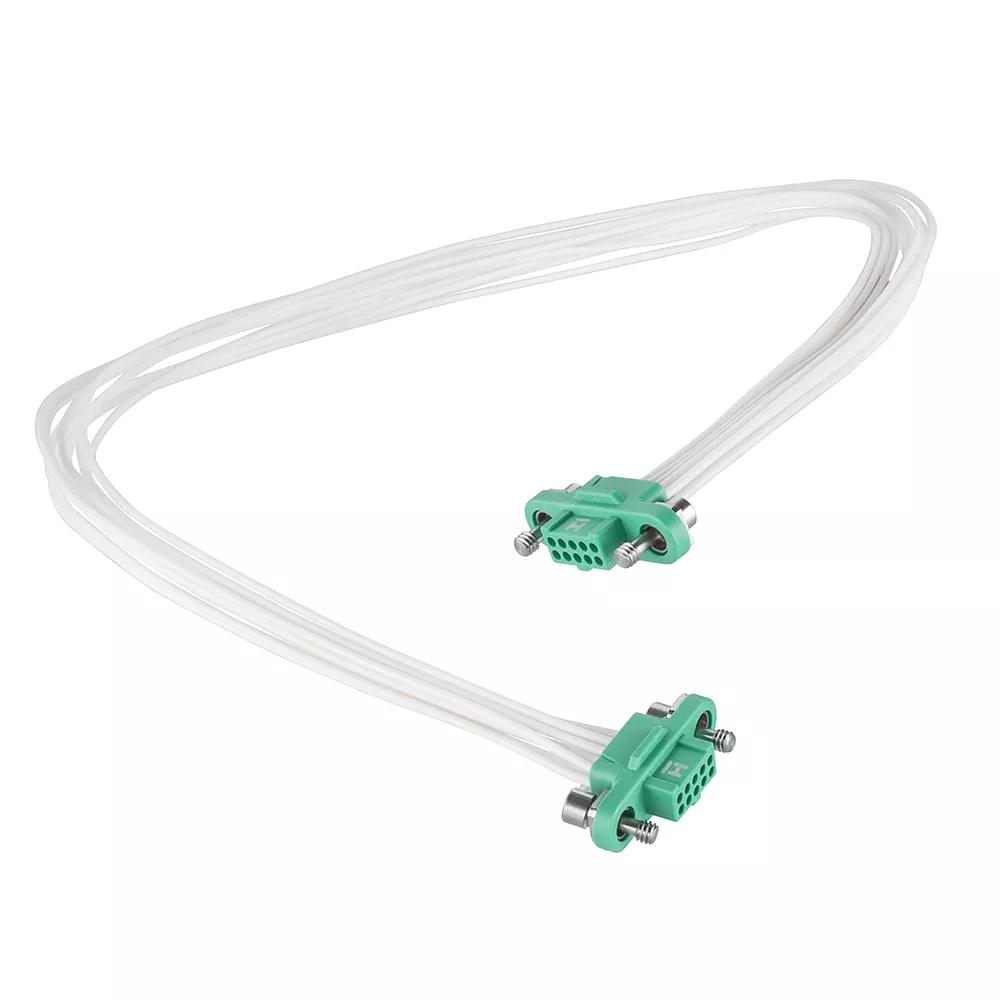

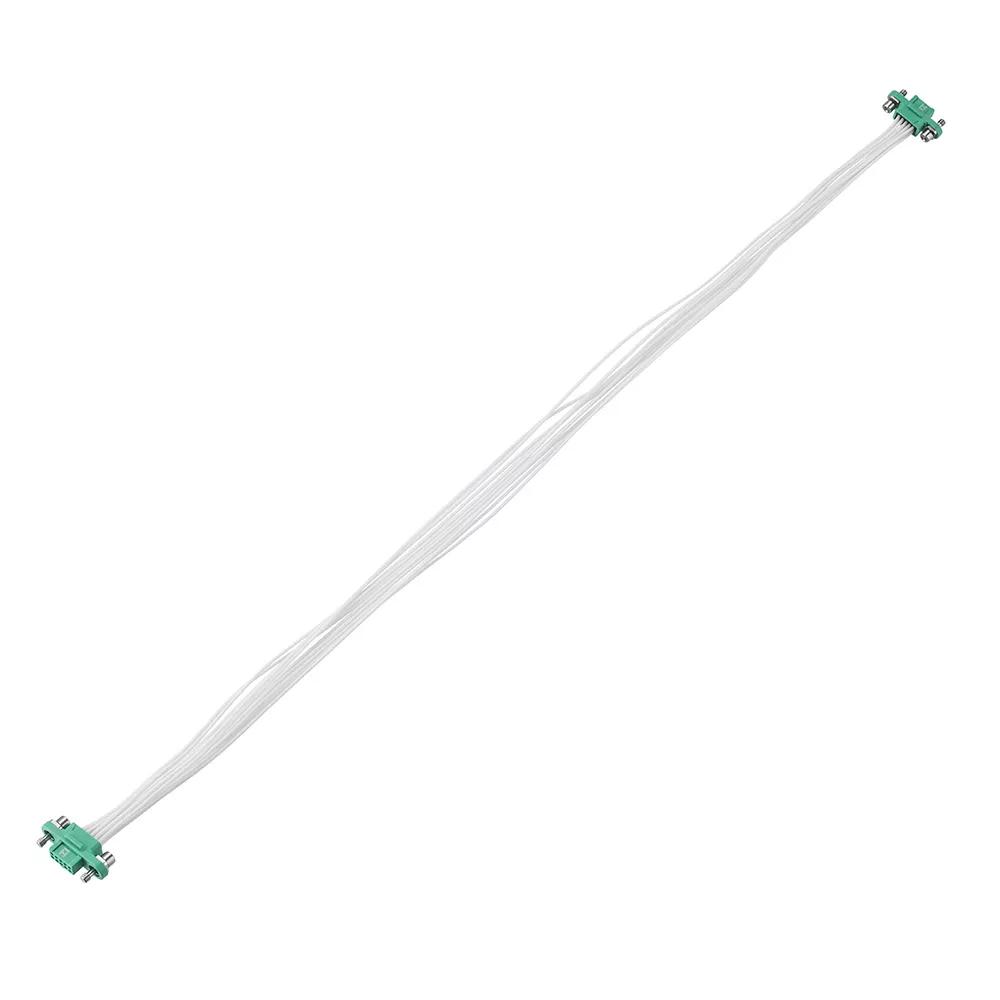

Female-to-Female with white 26 AWG cable, 150mm (6") long - 10 contacts (5+5). Fitted with floating Screw-Lok fixings, Hexagonal socket head, Mate-before-Lock.
Manufactured with G125-0010005 crimp contacts, G125-2241096F1 Double Row crimp housings. Gold finish on contact area.
For complete pin numbering or pin out information, see Component Specification C125XX.
View Technical Details
Checking stock availability...
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Style of Jackscrews:
Screw Fixing (floating) with Hex Socket Head
Mating Pin Size:
Ø0.4mm
Number of Rows:
2
Connector Orientation:
Straight
Country of Origin:
GB/US
Side Stackable:
No
Number of Signal Contacts:
10
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Current Rating:
2.8A max individual contact, 2A max simultaneous (25°C)
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
Polyamide (Nylon) 4T
Base Material of Contact:
Beryllium Copper
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
Gold
Housing Colour:
Green
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
4.72g
Dimensions:
150.00 x 17.70 x 6.50
Thread Size:
M2
Wire Size:
26 AWG
Downloads
Technical Drawing / Datasheet - G125-XXXXXXXXX-XXXXXX.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
C049XX Component Specification - Cable Assembly Specifications for all HRi products
Outgassing data for Harwin products (plastics)
Plating thickness on Gecko contacts (signal and power)
Catalog page - Gecko-SL Mating Profiles
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Training Module - Panel Mount with Gecko-SL
Product Datasheet - Gecko range: signal connectors (HRi)
Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test
Test Report HT069 - Gecko Cable Assemblies - Backpotting Temperature
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for G125-FC1XX05F1-YYYYF1 series
RoHS - G125-FC11005F1-0150F1
