G125-F1MS110-075-FS1

G125-F1MS110-075-FS1

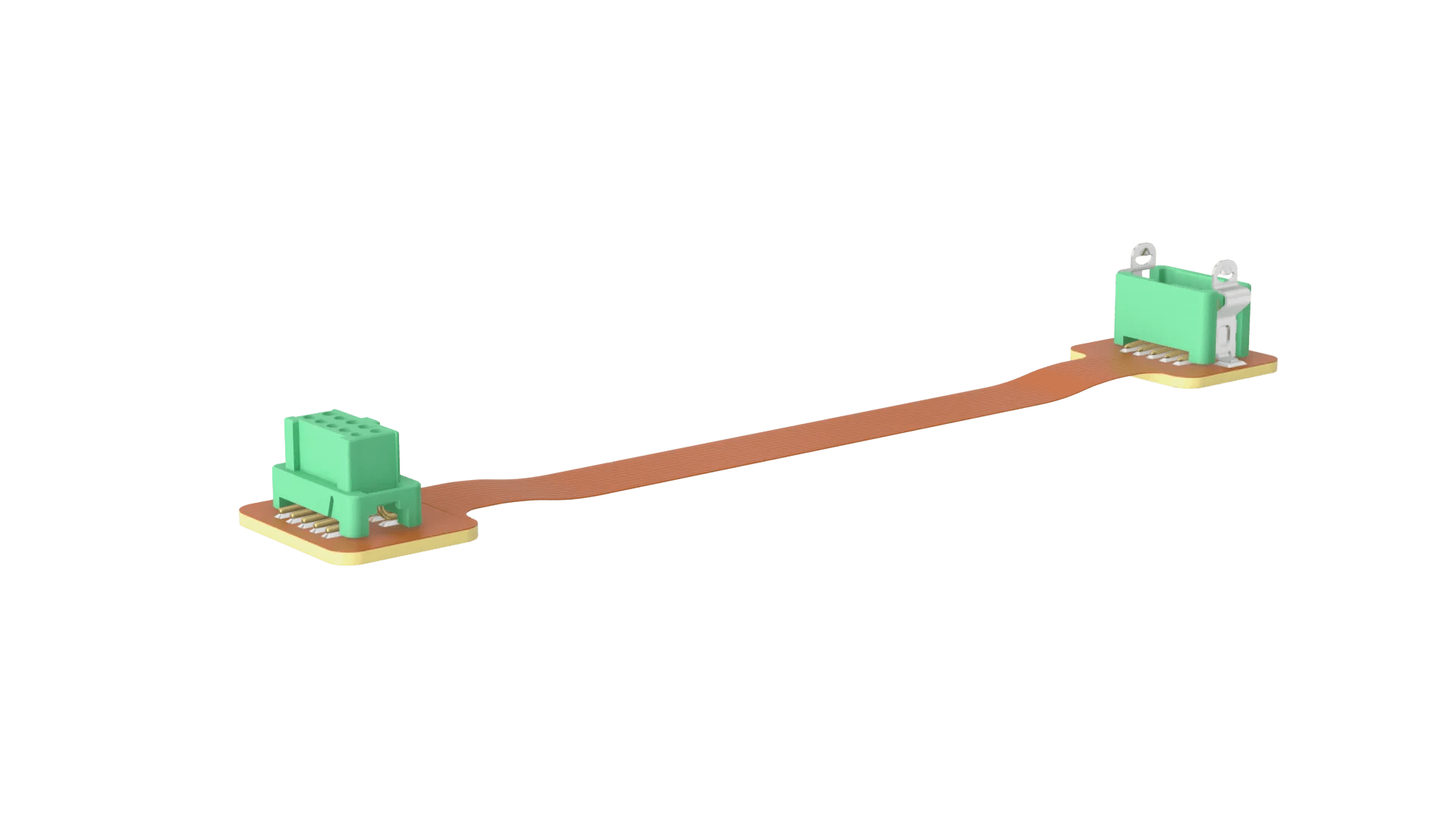

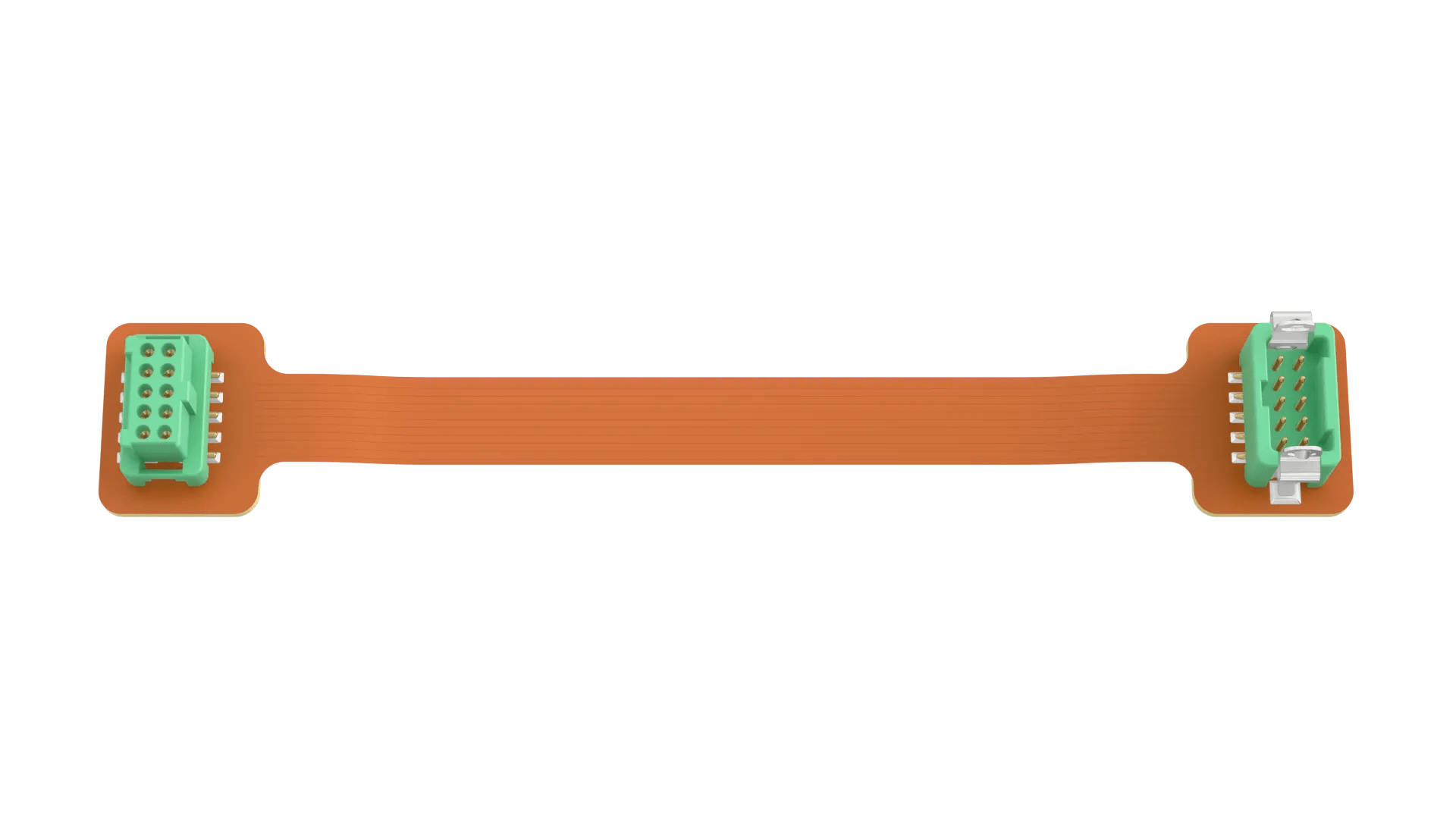

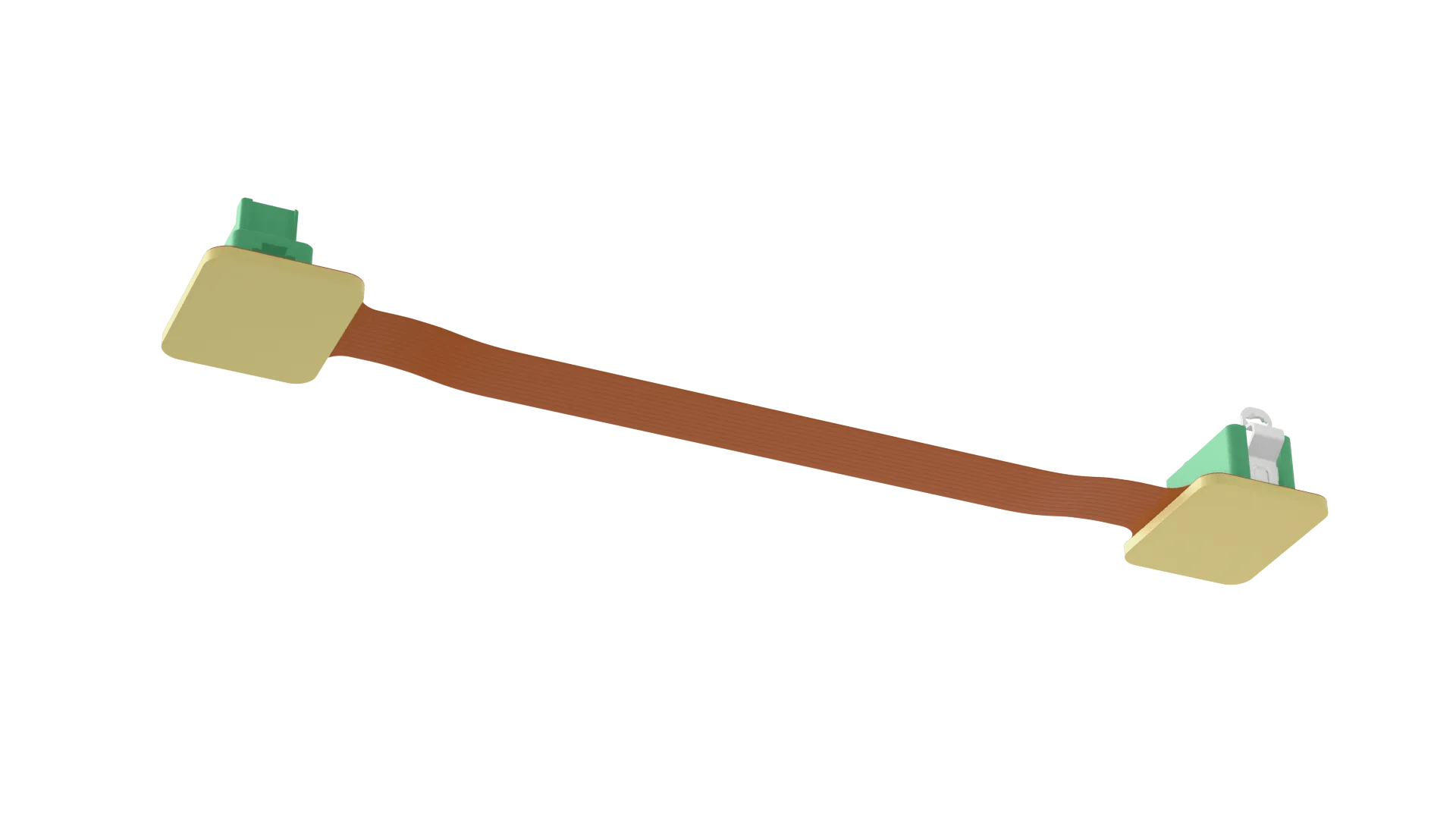

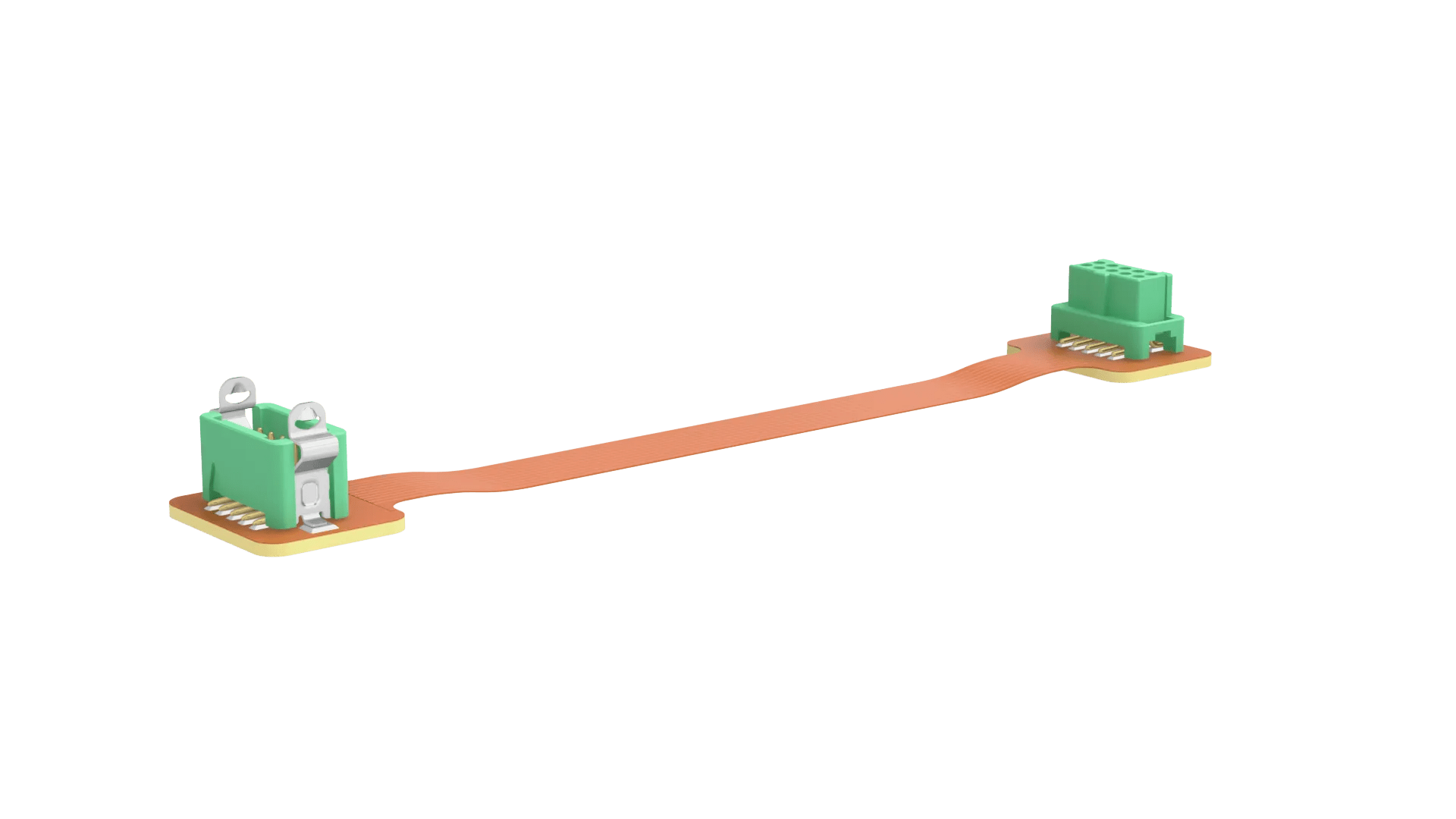

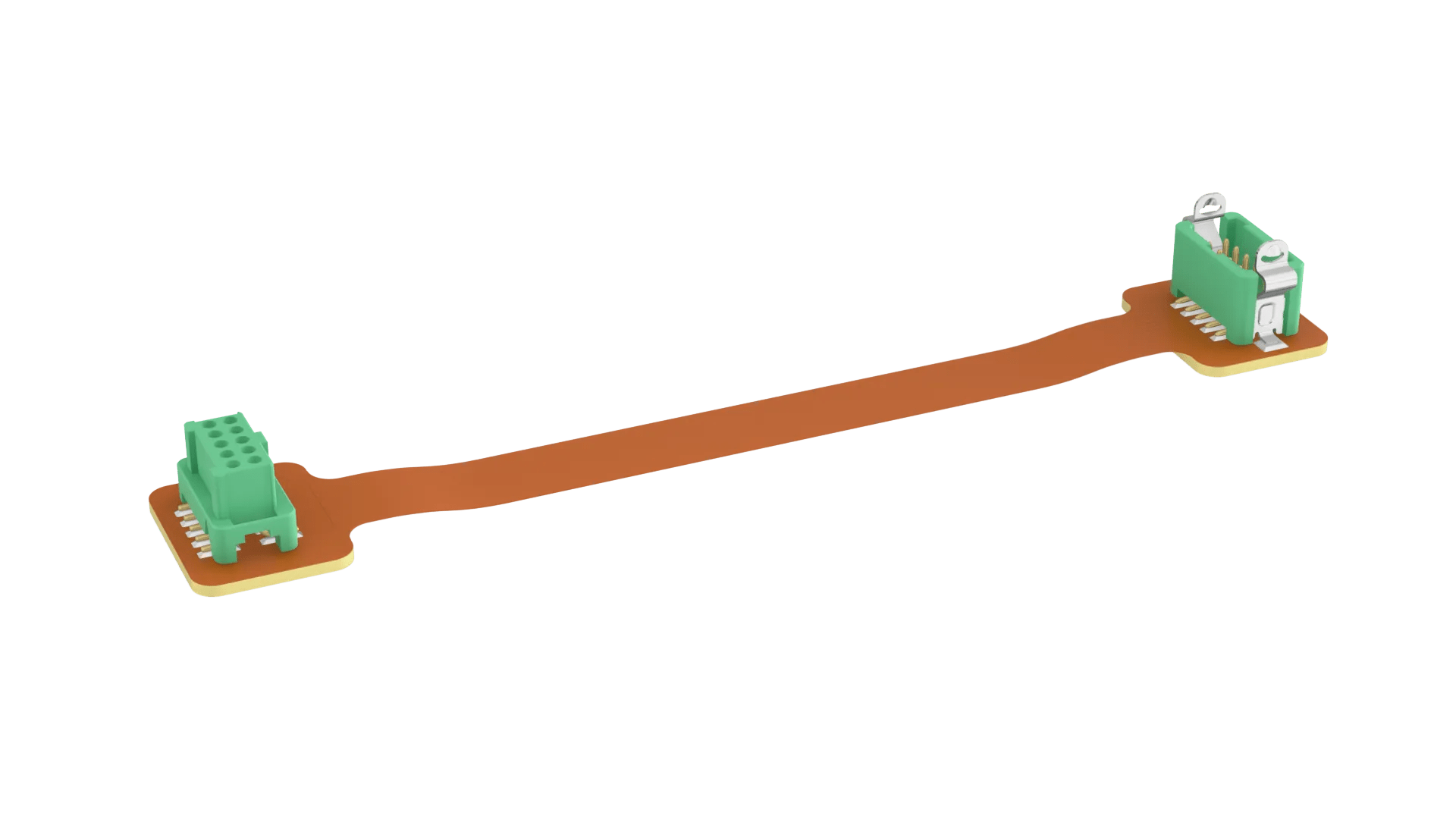

5+5 Pos. Male-Female DIL Flex Circuit Assembly, 75mm, Latches

product renders uploaded to replace photography Feb 25
product renders uploaded to replace photography Feb 25
product renders uploaded to replace photography Feb 25
product renders uploaded to replace photography Feb 25
product renders uploaded to replace photography Feb 25

G125-F1MS110-075-FS1

5+5 Pos. Male-Female DIL Flex Circuit Assembly, 75mm, Latches

1.25mm Pitch High-Reliability Connector - Gecko Latch

  • Male-to-Female (Female-to-Male) flexible circuit assembly, 75mm long - 10 contacts (5+5).

  • Manufactured with G125-MS11005L3P male SMT connector (fitted with copper alloy latches) and G125-FS11005L0P female SMT connector (compatible for mating to male connectors with latches). Gold finish on contact area.

  • For complete pin numbering or pin out information, see Component Specification C125XX.

View Technical Details

Out of Stock

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Latching Style:

    Locking Latch

  • Mating Pin Size:

    Ø0.4mm

  • Number of Rows:

    2

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    10

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Current Rating:

    0.4A max per contact (25°C)

  • Polarised:

    Yes

  • Cuttable:

    No

Materials

  • Finish / Plating on Contact Surface:

    Gold

  • Housing Material:

    Polyamide (Nylon) 4T (connector only)

  • Base Material of Contact:

    Brass (Male), Beryllium Copper (Female)

  • Flammability Rating:

    UL94V-0 (connector only)

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Green (connector only)

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    1.1g

  • Dimensions:

    75.00 x 12.00 x 7.90 max

Downloads

    Technical Documentation

  • Technical Drawing / Datasheet - G125-F1XXXXX-XXX-XXX.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

  • Plating thickness on Gecko contacts (signal and power)

  • Product Information

  • Catalog page - Gecko with Latches Mating Profiles

  • Product Training Module - Introduction to the Gecko connectors + 1.25mm pitch High-Reliability

  • Product Training Module - Flex Circuit Assemblies with Hi-Rel Connectors

  • Product Training Module - Cable Products from Harwin

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Test Reports

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental

  • Test Report HT074 - Flex Circuit Assemblies (Electrical)

  • Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • RoHS - G125-F1MS110-075-FS1
