G125-9711002

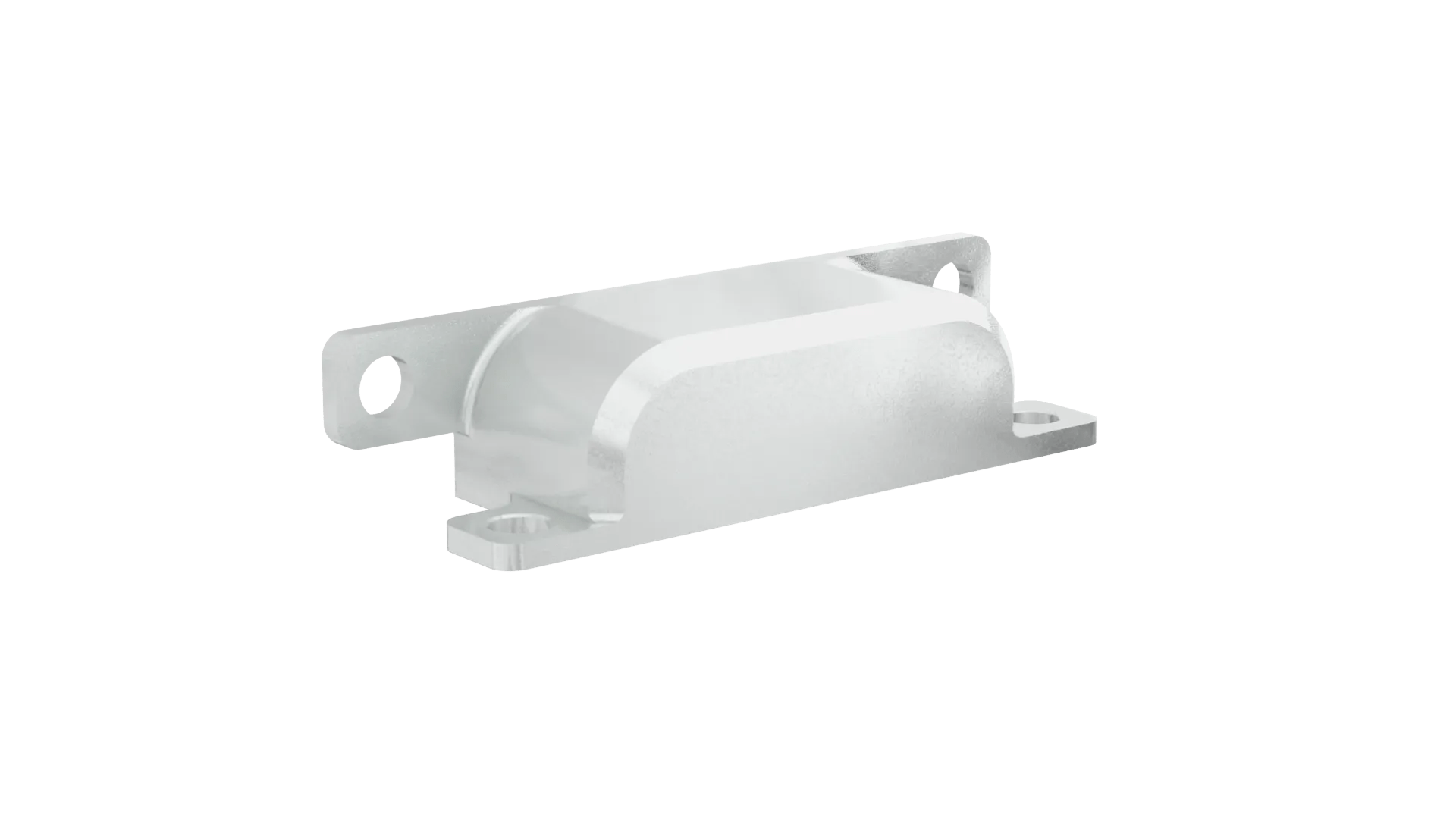

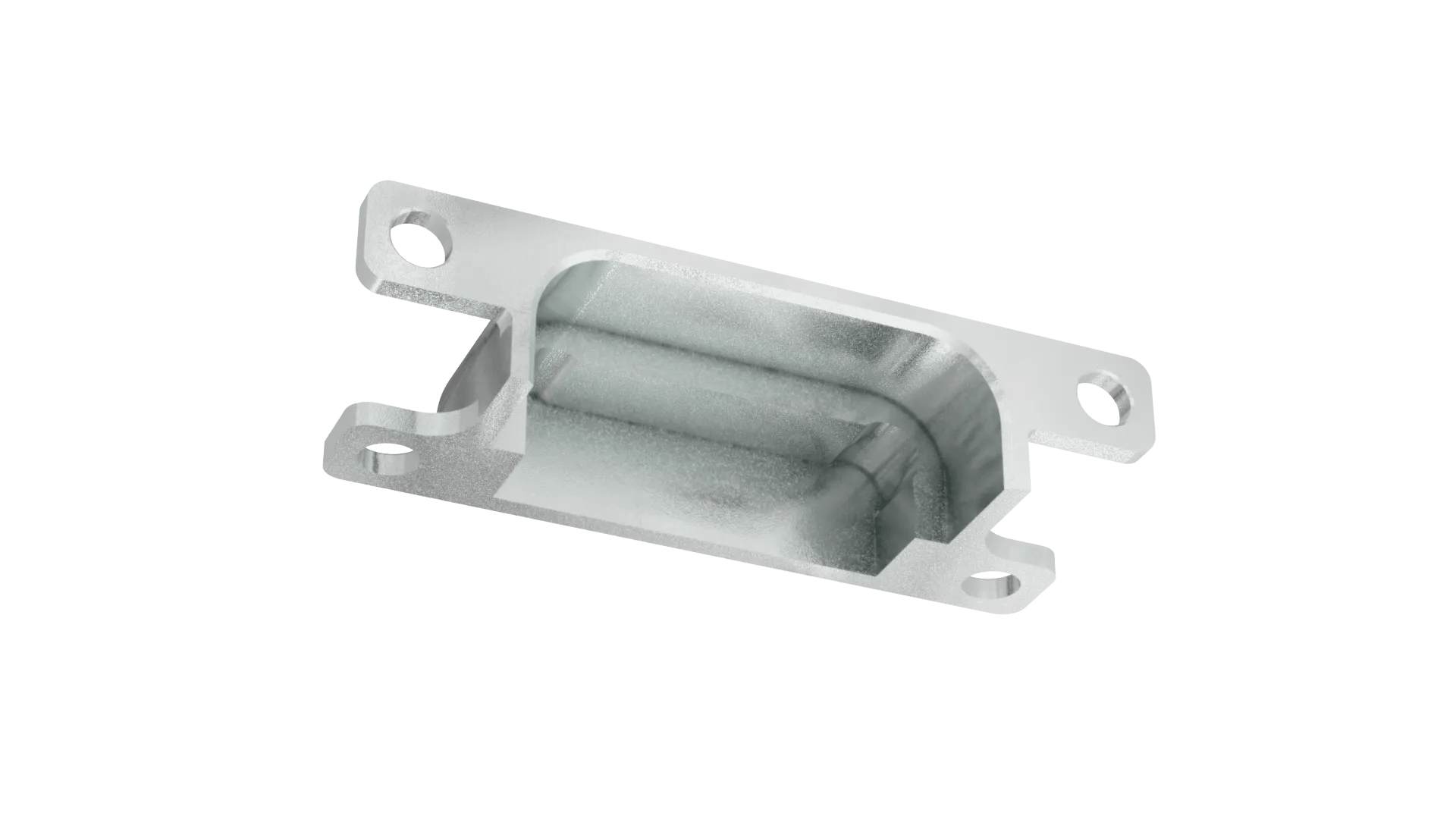

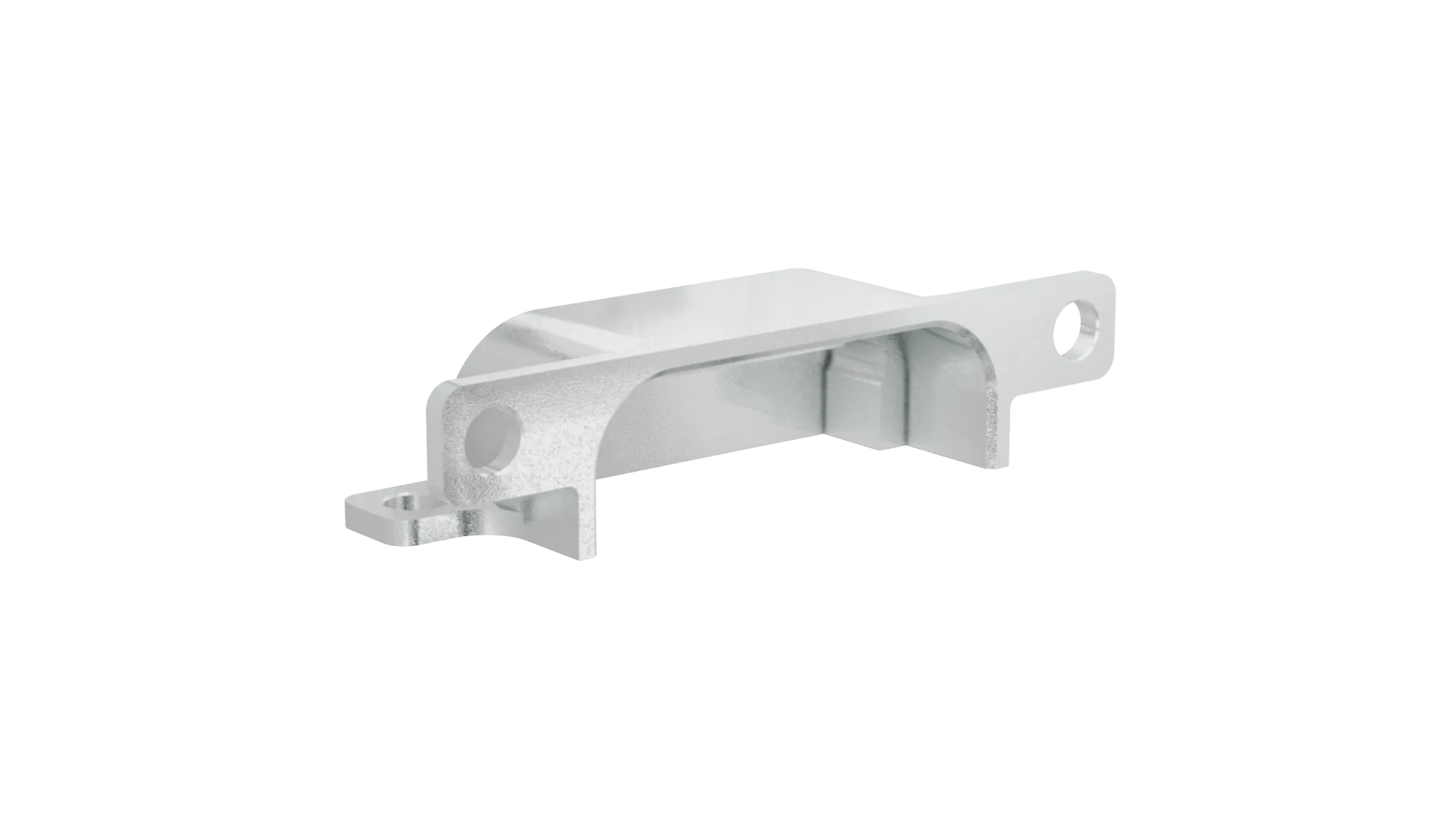

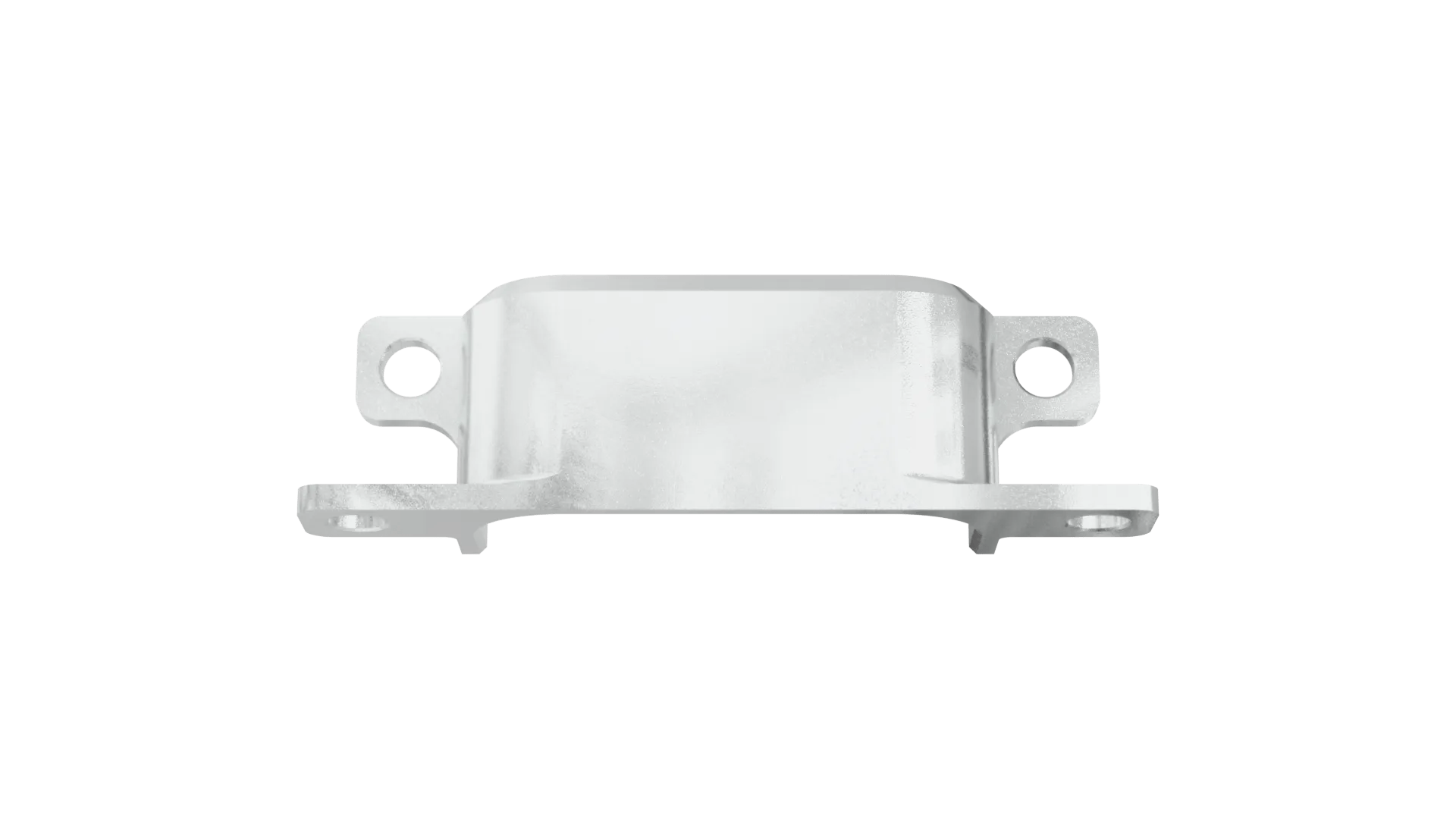

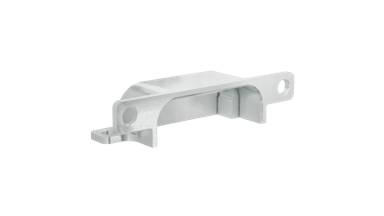

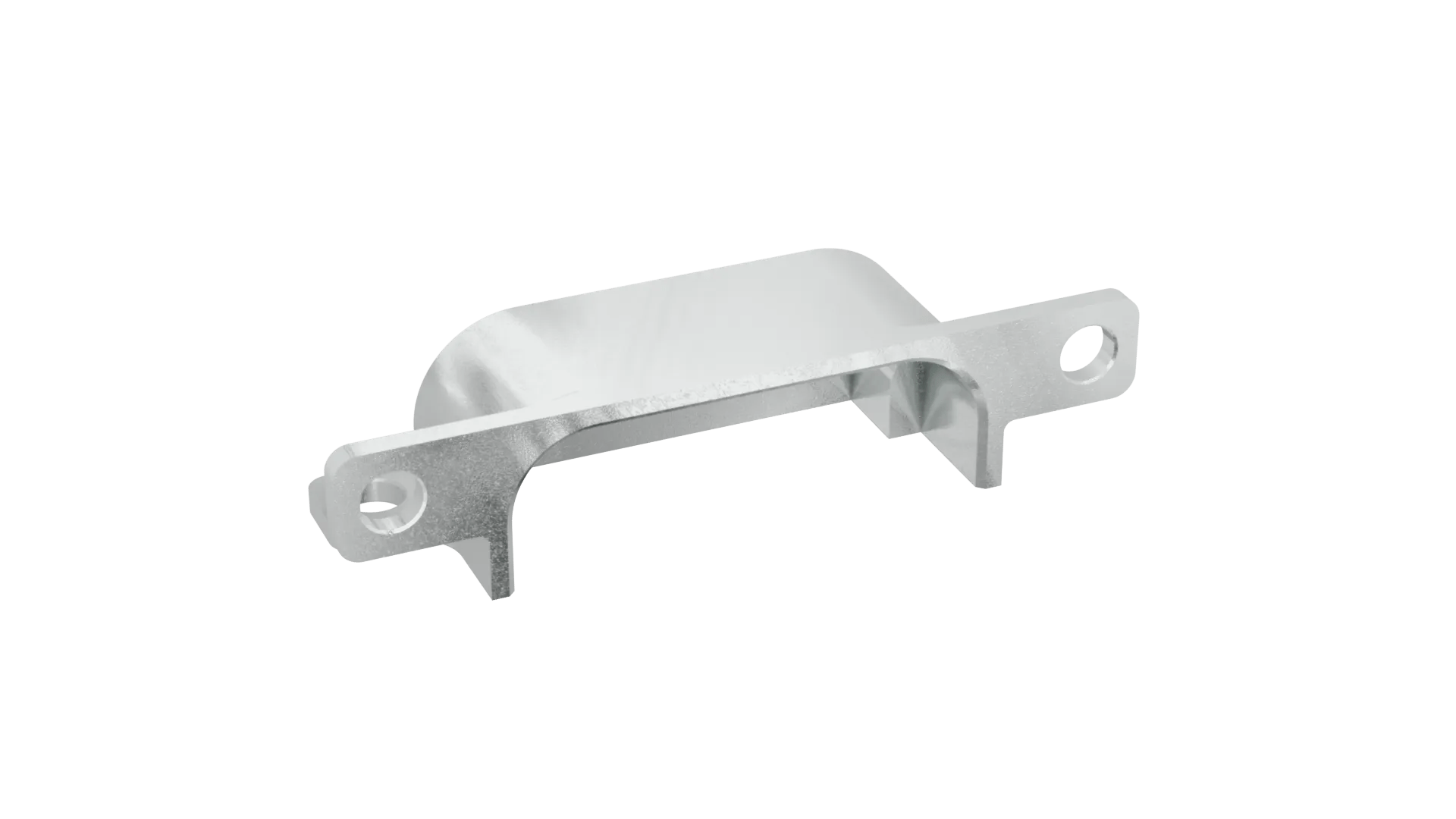

5+5 Pos. Male Horizontal Metal Backshell for Gecko-SL, Panel Mount

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Aluminium alloy Metal Backshell with nickel plating, for horizontal PCB-mounted connectors. Additional lugs for rear panel mounting at mating face. Accessory only - connectors to be purchased separately.

  • Use with the following 10-contact connector: male horizontal PCB connector G125-MH11005M4P.

  • Use hex socket bolt G125-4520000B with hex nut G125-4510000B for mounting to PCBs or panels up to 2mm thickness.

View Technical Details & Downloads

Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Product Information

Technical Documentation

Environmental Compliance

Test Reports

Technical Details

Product Characteristics

  • End Stackable:

    No

  • Number of Rows:

    2

  • Connector Orientation:

    Horizontal

  • Country of Origin:

    GB

  • Side Stackable:

    No

  • Number of Signal Contacts:

    10

  • Operating Temperature:

    -65°C to +150°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Cuttable:

    No

Materials

  • Housing Material:

    Aluminium Alloy

  • Packaging Style:

    Bulk/Loose

  • Housing Colour:

    Nickel

Dimensions

  • Contact Pitch:

    1.25mm (0.049")

  • Weight:

    2.061g

  • Dimensions:

    34.10 x 10.00 x 7.54

  • Height of Connector above PCB:

    7.54mm

Downloads

    Product Information

  • Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability

  • Product Datasheet - Gecko range: signal connectors (HRi)

  • Product Training Module - Panel Mount with Gecko-SL

    • Technical Documentation

  • Technical Drawing / Datasheet - G125-971.pdf

  • C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

  • Outgassing data for Harwin products (plastics)

    • Environmental Compliance

  • RoHS - G125-9711002

  • Material composition for G125-971 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

    • Test Reports

  • Test Report HT075 - Gecko-SL Backshells and Shielded Cable Assemblies (Attenuation)

  • Test Report HT030 - Gecko (G125 Series) - Electrical + Mechanical and Environmental
