1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

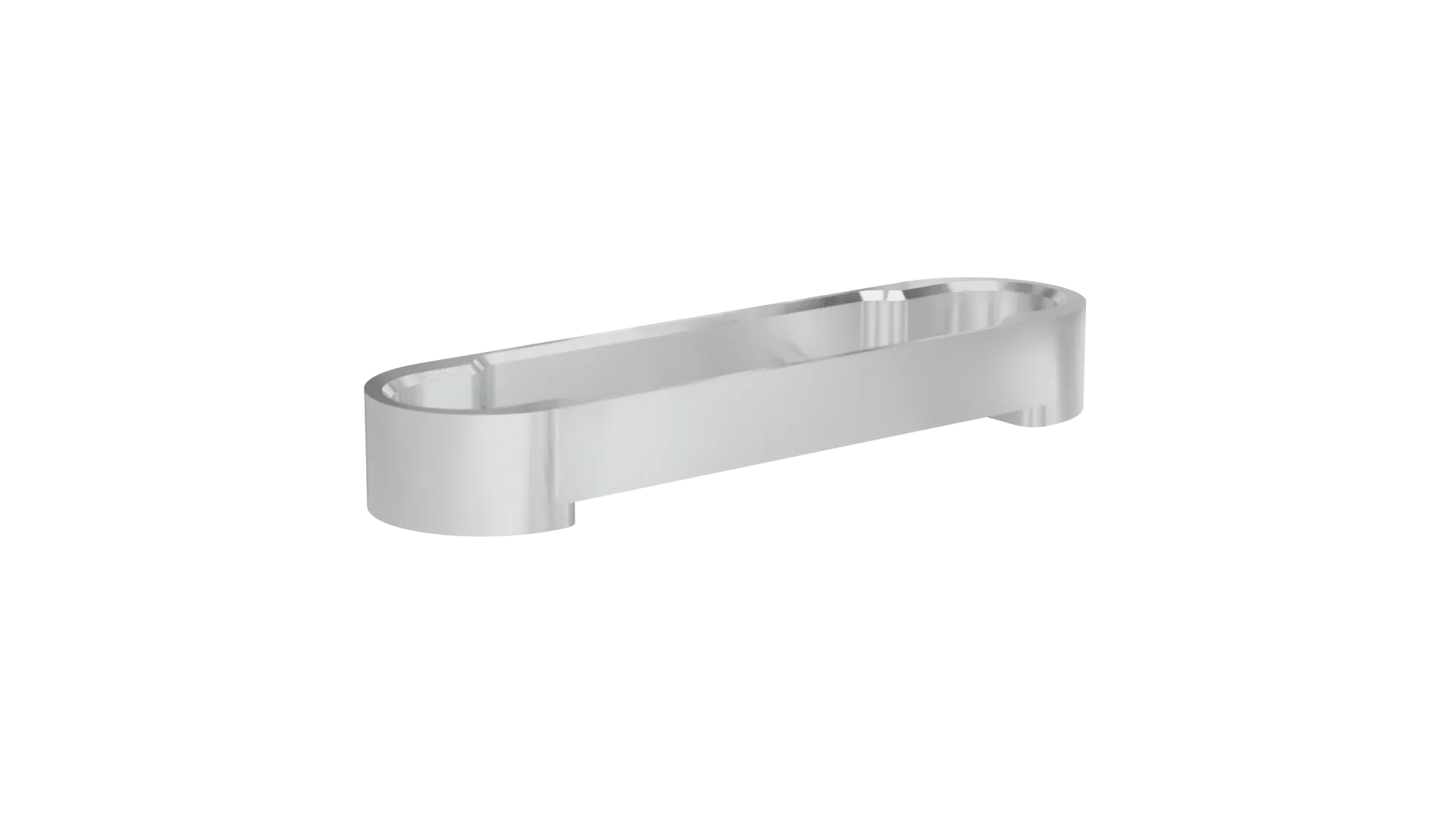

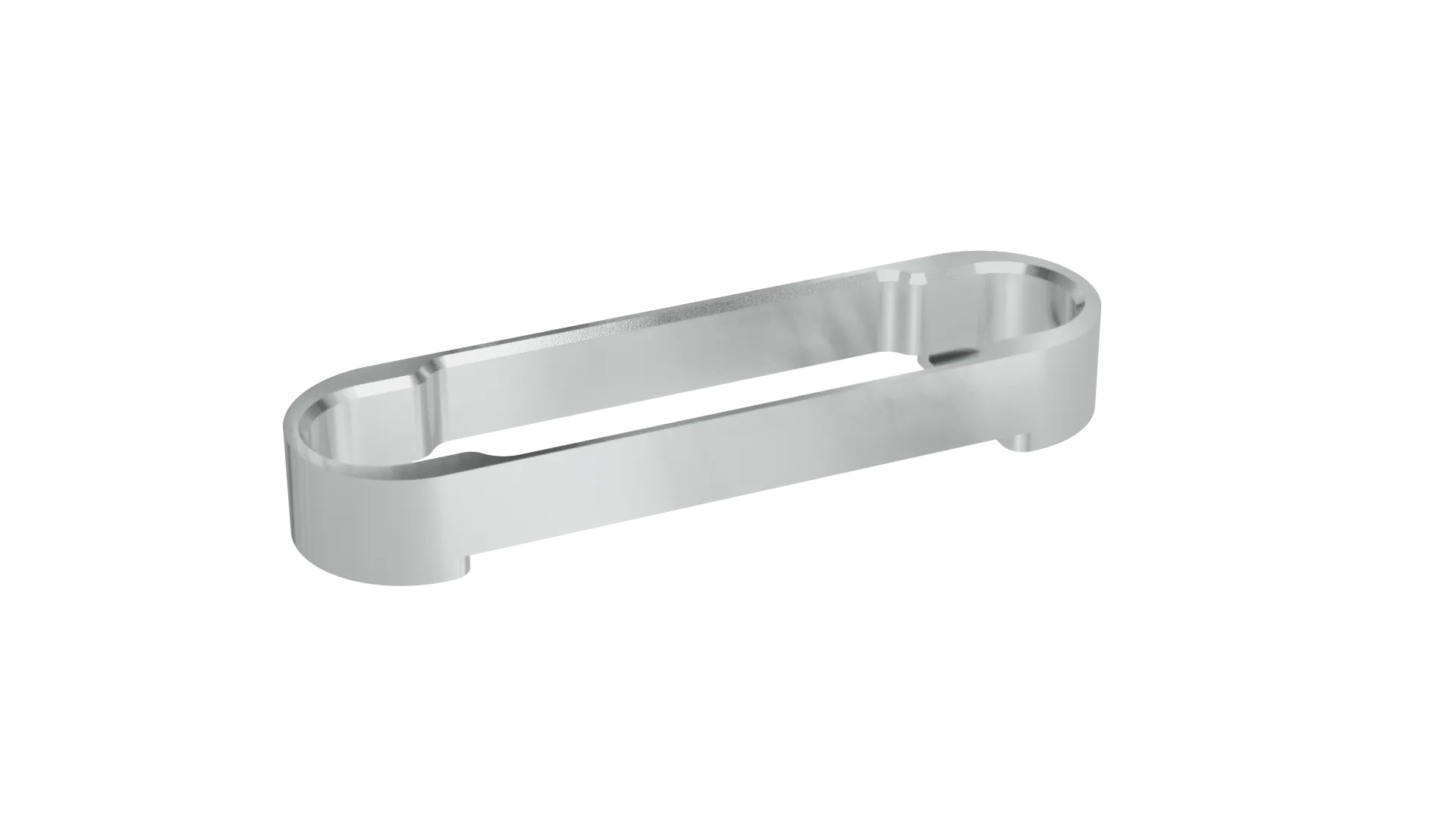

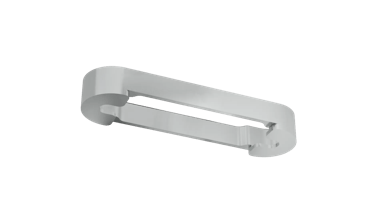

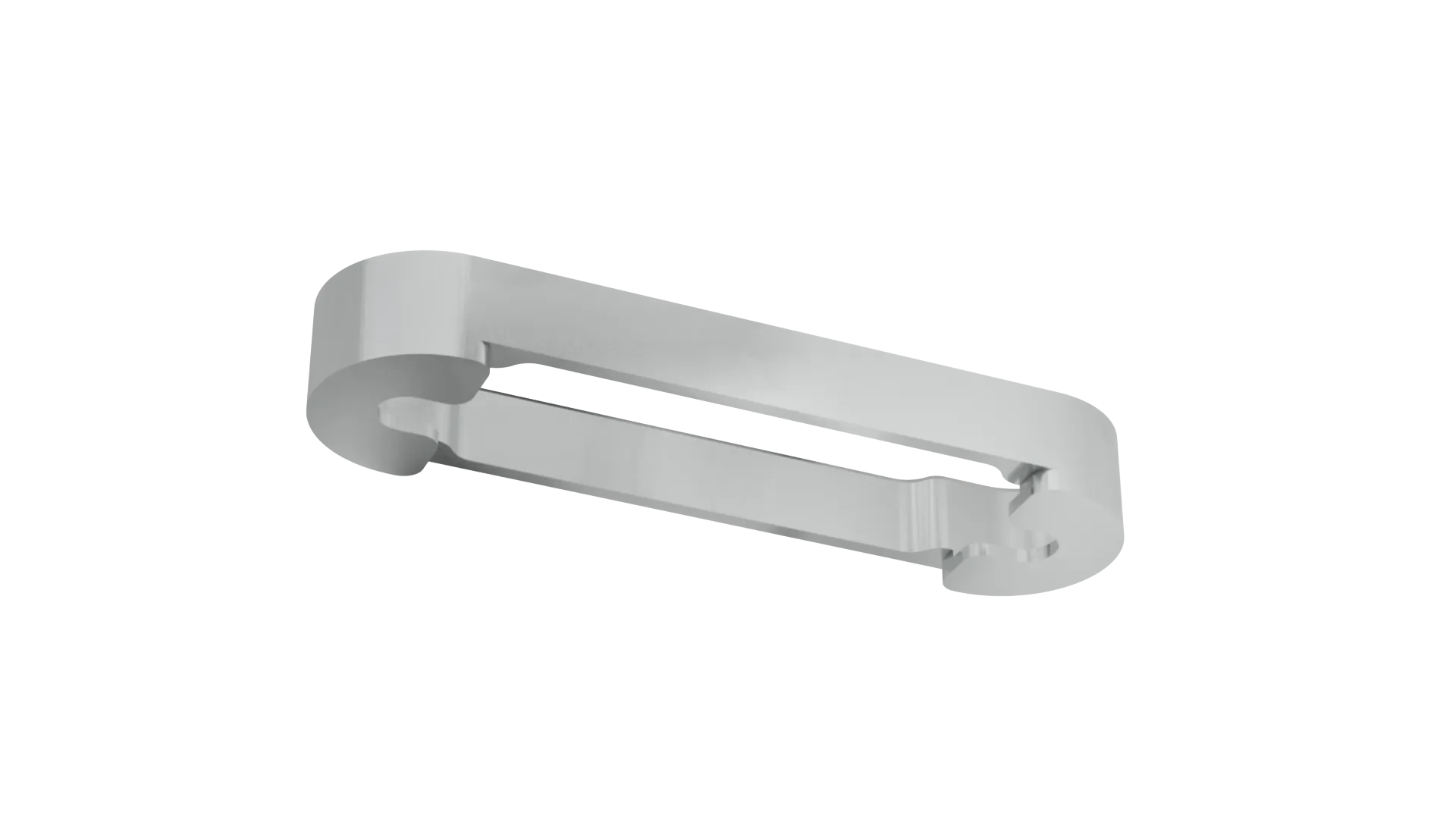

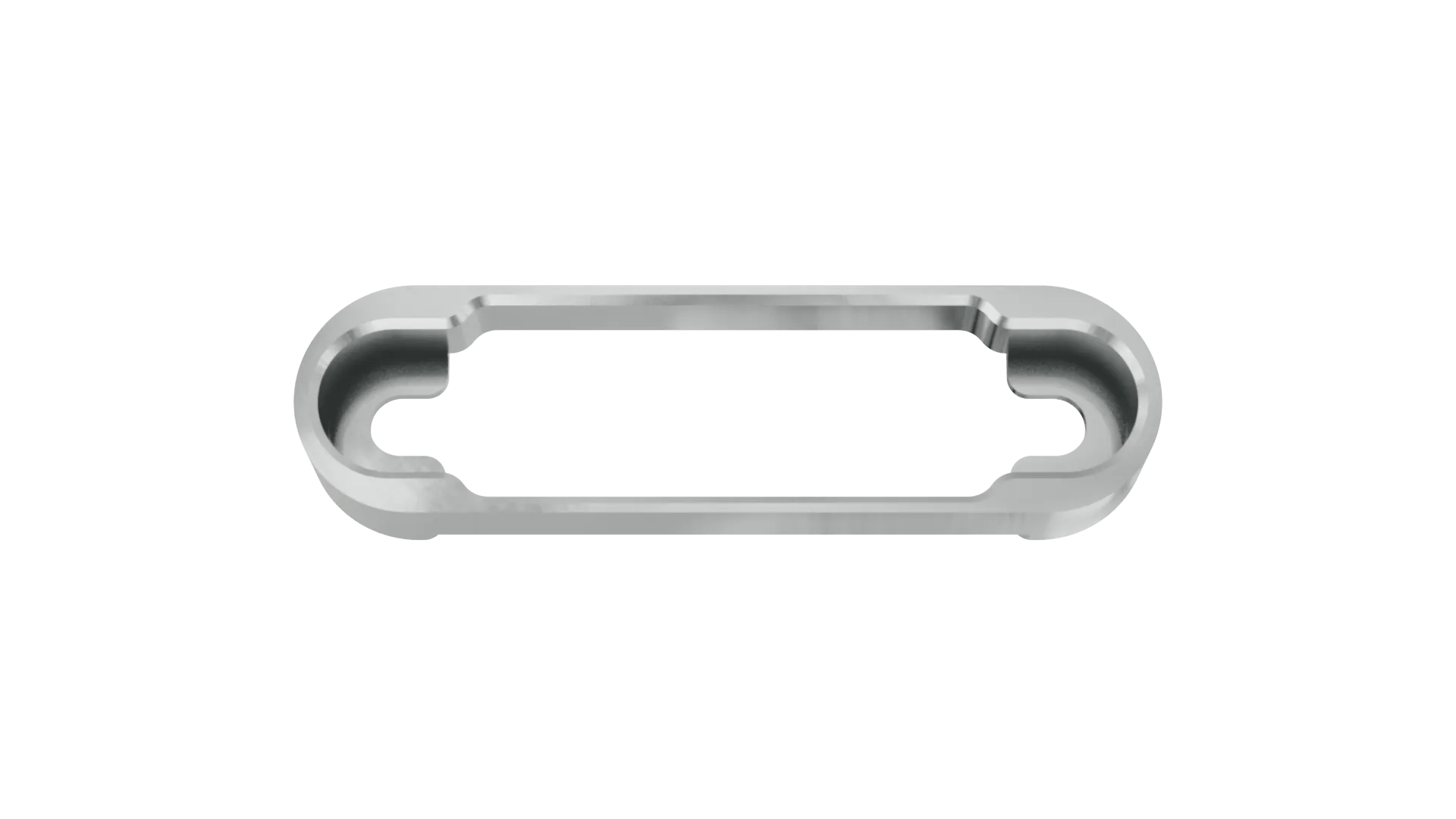

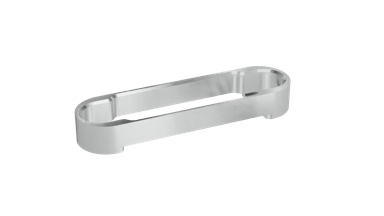

Metal Backshell item for use with front panel mount (cable) or board mount (PCB) connectors. Use with female reverse fix screw-loks, or male standard gender screw-loks.
Use with the following 26-contact connectors or housings: male cable front panel mount G125-3242696M2, male PCB connector G125-MV12605M2P, female cable front panel mount G125-2242696F3 or female PCB connector G125-FV12605F3P .
If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
End Stackable:
No
Number of Rows:
2
Connector Orientation:
Vertical
Country of Origin:
GB
Side Stackable:
No
Number of Signal Contacts:
26
Operating Temperature:
-65°C to +150°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Cuttable:
No
Materials
Housing Material:
Aluminium Alloy
Packaging Style:
Bulk/Loose
Housing Colour:
Nickel
Dimensions
Contact Pitch:
1.25mm (0.049")
Weight:
0.673g
Dimensions:
29.40 x 8.00 x 3.95
Height of Connector above PCB:
3.95mm
Downloads
Product Datasheet - Gecko-MT range (HRi)
Product Training Module - Overview Guide to the Gecko Screw-Lok range + 1.25mm pitch High-Reliability
Product Datasheet - Gecko range: signal connectors (HRi)
Product Training Module - Panel Mount with Gecko-SL
Technical Drawing / Datasheet - G125-960.pdf
C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)
Outgassing data for Harwin products (plastics)
RoHS - G125-9602602
Material composition for G125-960XX02 series
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
